24

Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014

Chapter 1

PowerFlex 700H and 700S Drives - Frame 9 Procedures

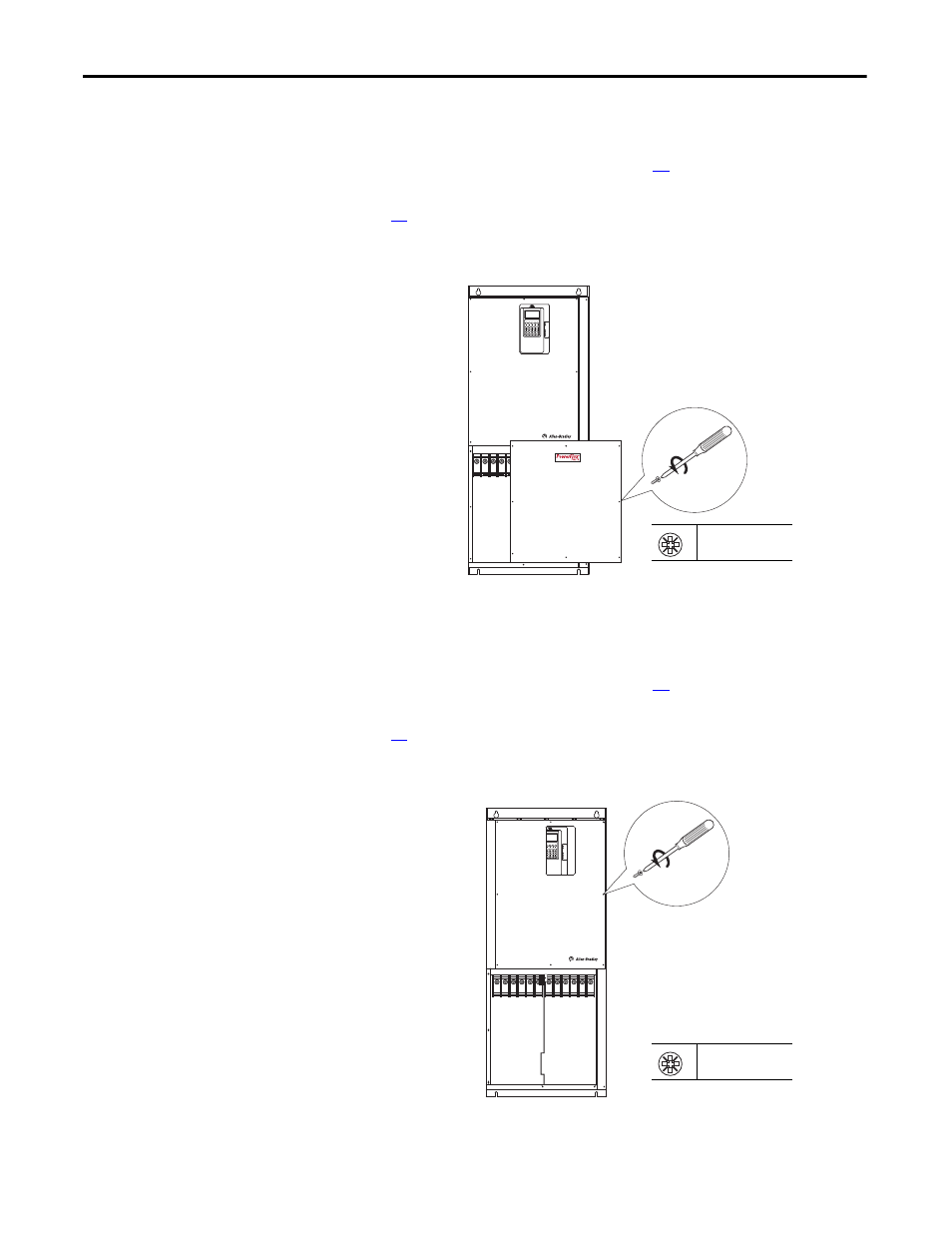

Remove the Lower Protective Cover

1.

Review the General Precautions on page

17

.

2.

Remove power from the drive. See Remove Power from the Drive on page

23

.

3.

Remove the eight M4 x 8 mm POZIDRIV screws that secure the lower
protective cover to the drive and remove the cover.

Remove the Upper Protective Cover

1.

Review the General Precautions on page

17

.

2.

Remove power from the drive. See Remove Power from the Drive on page

23

.

3.

Remove the eight M4 x 8 mm POZIDRIV screws that secure the upper
protective cover to the drive and remove the cover.

(8 Screws)

L1

L2

L3

L1

L2

L3

U/T1 V/T2 W/T3 U/T1 V/T2 W/T3

PZ2
3.0 N

m (27 lb

in)

L1

L2

L3

L1

L2

L3

U/T1 V/T2 W/T3 U/T1 V/T2 W/T3

(8 Screws)

PZ2
3.0 N

m (27 lb

in)
