Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014

39

PowerFlex 700H and 700S Drives - Frame 9 Procedures

Chapter 1

AC to DC Fan System Retrofit Kit (SK-H1-DCFANRETROFIT-F9)

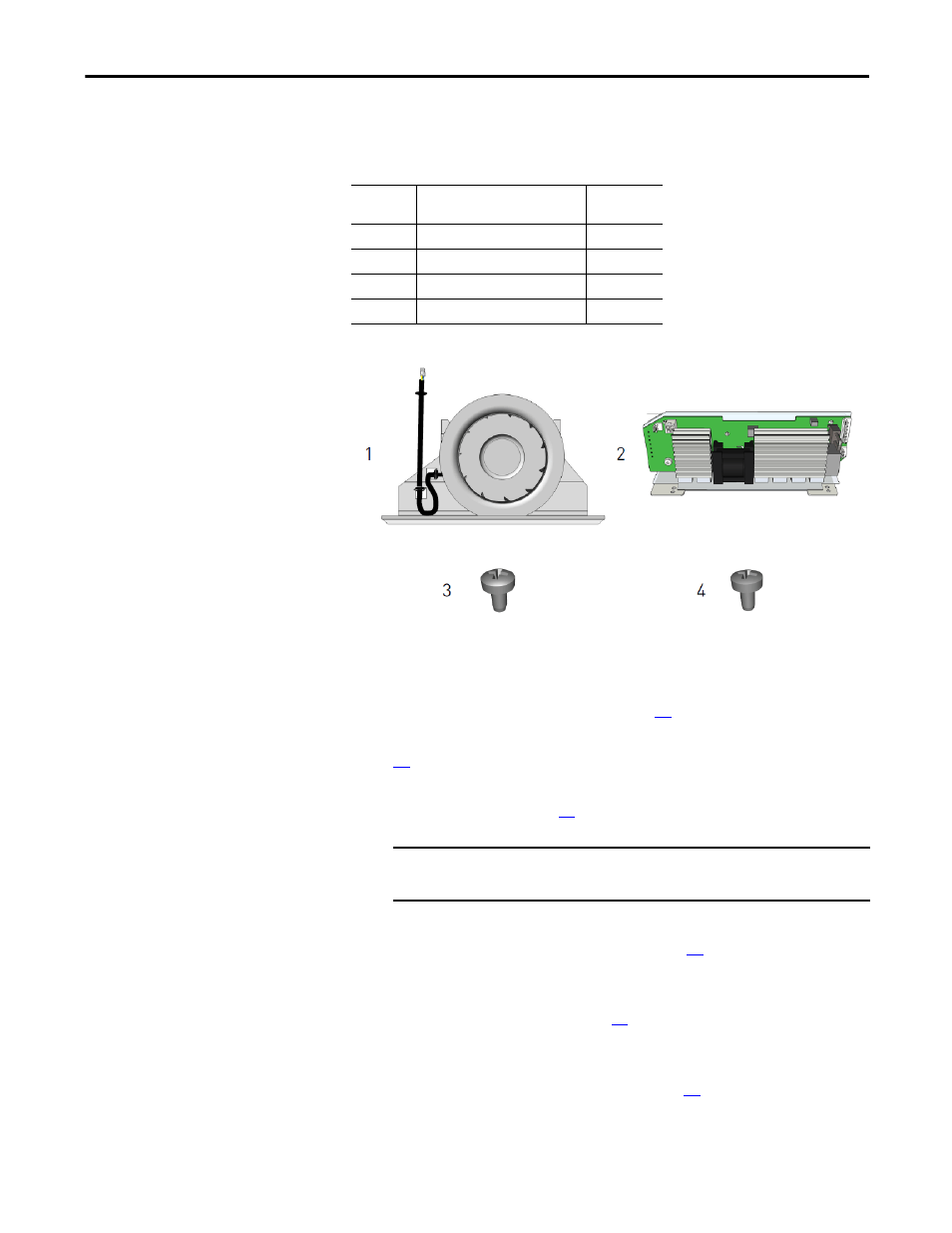

The frame 9 AC to DC main fan system retrofit kit contains the following parts:

Follow these steps to remove the main AC fan inverter system and replace it with
a main DC fan inverter system.

1.

Review the General Precautions on page

17

.

2.

Remove power from the drive. See Remove Power from the Drive on page

23

.

3.

Remove the lower protective cover from the drive. See Remove the Lower
Protective Cover on
page

24

.

4.

Remove the main AC fan inverter capacitor bracket. See Removing the
Main Fan Inverter Capacitor Bracket
on page

25

.

5.

Remove the AC fan inverter capacitor from the bracket and discard the
capacitor. See Main AC Fan Inverter Capacitor (SK-H1-FANCAP-F9)
Removal and Installation
on page

31

.

6.

Remove the main AC fan inverter circuit board assembly and discard the
assembly. See Main AC Fan Inverter Circuit Board Assembly (20-
VB00299) Removal and Installation o
n page

33

.

Item
Number

Description

Quantity

1

DC fan assembly

1

2

DC fan supply assembly

1

3

M4 x 8 mm POZIDRIV screw

2

4

M5 x 10 mm POZIDRIV screw

4

IMPORTANT

Verify that the upper mounting bolts are secure and properly torqued
so that they will hold the drive to the wall of the system enclosure.
