Rockwell Automation 20Y PowerFlex 700H, 700S, and 700AFE Drive Fan Systems, Frames 9...14 User Manual
Page 161
Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014
161
PowerFlex 700H and 700S Drives - Frame 13 Procedures
Chapter 5
14.
Connect the DC- chaining wire set provided in the kit between the DC
power supply and DC- connectors from the DC fan inverter circuit board.

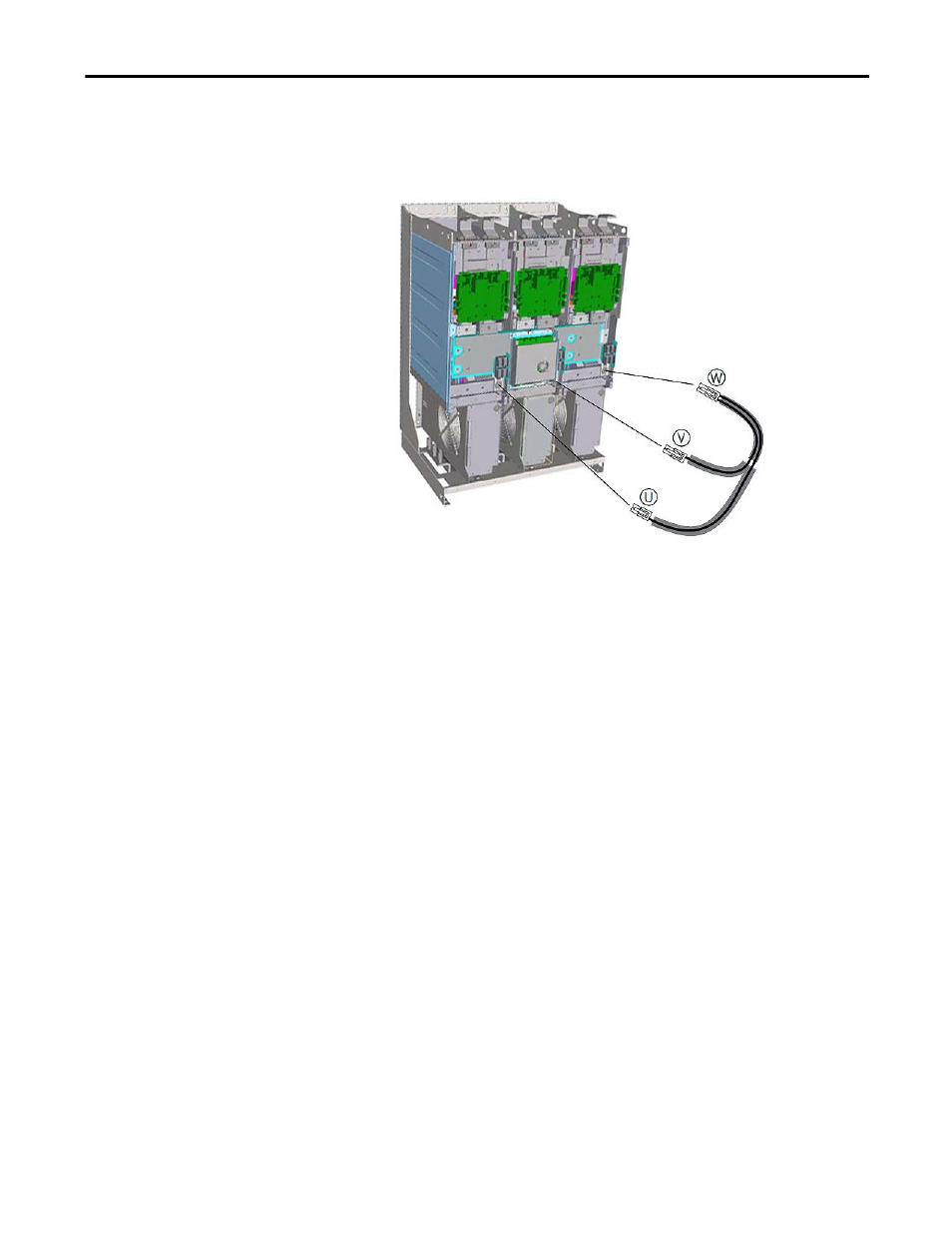

Note the phase markings (U, V, W) on the DC- chaining wire connectors
and verify they are connected to the correct phase.
15.
Remove the backing from the drive modification label and attach the label
to the front of a main fan housing.
16.
Write “DC fan retrofit” and the installation date on the label.
14
Inverter section shown
