Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014

51

PowerFlex 700H and 700S Drives - Frame 9 Procedures

Chapter 1

5.

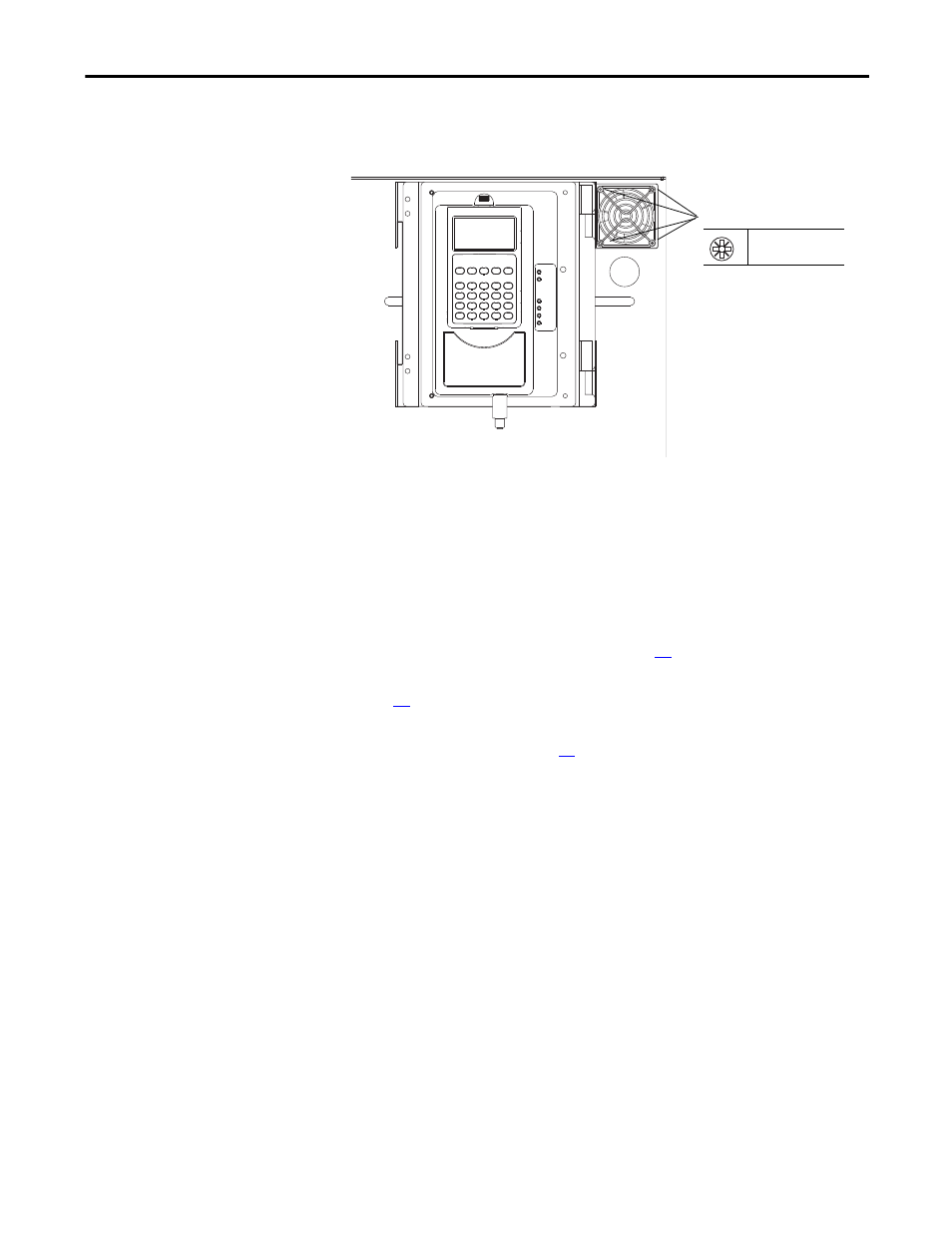

Remove the two M5 x 45 mm POZIDRIV screws that secure the
protective metal grate and stirring fan to the control frame and remove the
fan.

6.

Install the chassis stirring fan in the reverse order of removal.

Cross-plate Stirring Fan (20-PP01068) Removal and Installation

Follow these steps to remove and replace the stirring fan located on the cross plate
in the lower part of the drive.

1.

Review the General Precautions on page

17

.

2.

Remove power from the drive. See Remove Power from the Drive on page

23

.

3.

Remove the lower protective cover from the drive. See Remove the Lower
Protective Cover on
page

24

.

4.

Disconnect the stirring fan power wire connector.

5

PZ2
3.0 N

m (27 lb

in)
