134

Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014

Chapter 5

PowerFlex 700H and 700S Drives - Frame 13 Procedures

Frame 13 Fan System
Replacement Procedures

Replacement procedures for these frame 13 fan system parts are included in this
chapter.

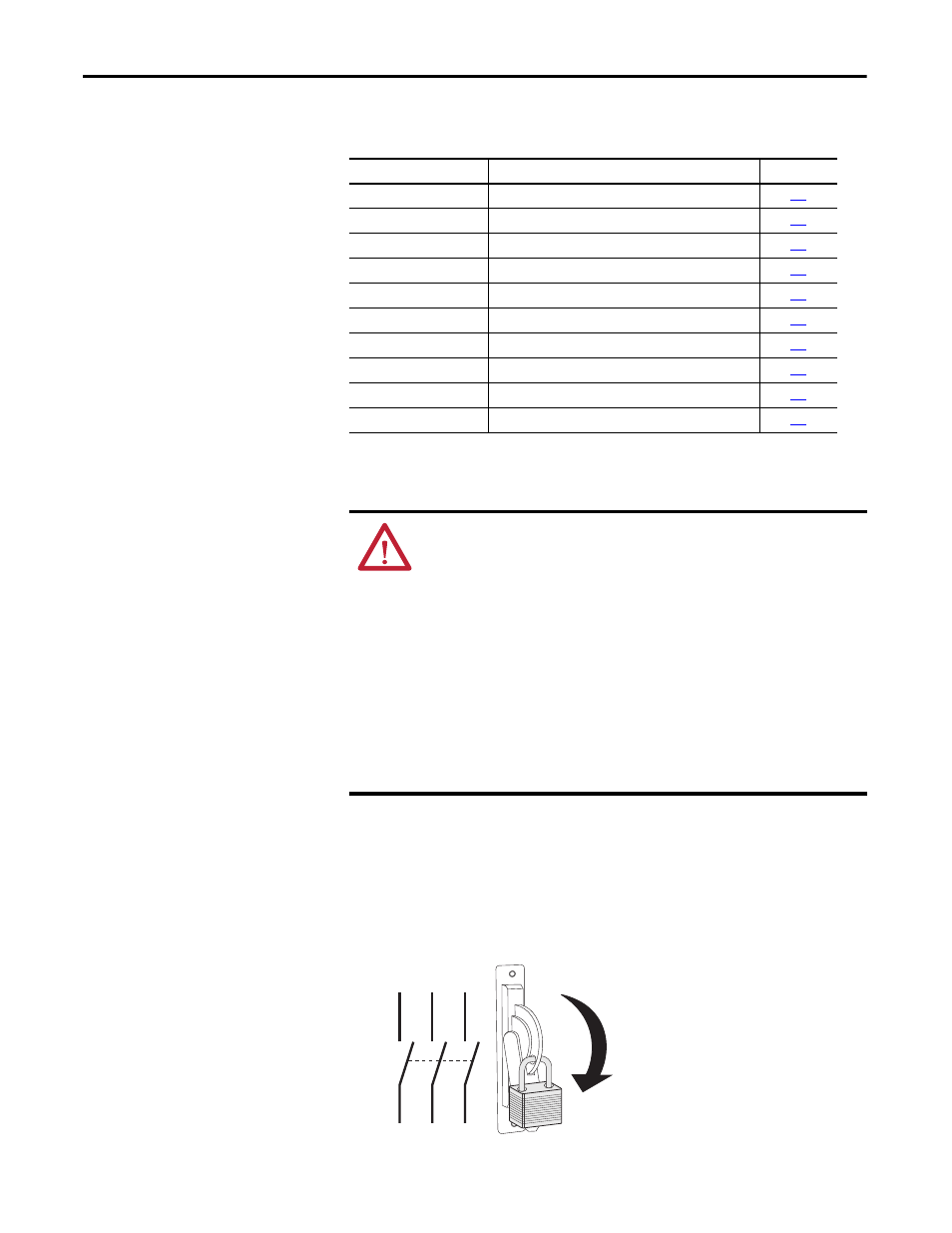

Remove Power from the Drive

1.

Turn off and lock out input power.

2.

Wait five minutes.

3.

Check the DC bus voltage at the Power Terminal Block by measuring
between the +DC and -DC terminals, between the +DC terminal and the
chassis, and between the -DC terminal and the chassis. The voltage must
be zero for all three measurements.

Cat. No.

Part Description

Page

20-PP01096

60 mm cooling fan for the ASIC board assembly

139

20-PP20202

Fuse for fan system

141

20-PP20300

Fuse holder for the fan system fuses

141

20-FR13301

AC fan inverter

145

20-VB00299

Main AC fan inverter circuit board

151

SK-H1-DCFANBD1

Main DC fan power supply circuit board

153

SK-Y1-DCFANRETROFIT-F13

Fan system retrofit kit

154

SK-H1-FANCAP-F1314

Main AC fan capacitor (7

μF) kit

170

20-FI3300

230 W main AC fan assembly

174

SK-Y1-DCFAN1

Main DC fan assembly

174

ATTENTION: To avoid an electric shock hazard, verify that the voltage on the bus
capacitors has discharged completely before servicing. Check the DC bus voltage
at the Power Terminal Block by measuring between the +DC and -DC terminals,
between the +DC terminal and the chassis, and between the -DC terminal and
the chassis. The voltage must be zero for all three measurements.

Remove power before making or breaking cable connections. When you remove or
insert a cable connector with power applied, an electrical arc may occur. An
electrical arc can cause personal injury or property damage by:

sending an erroneous signal to your system’s field devices, causing unintended

machine motion

causing an explosion in a hazardous environment
Electrical arcing causes excessive wear to contacts on both the module and its
mating connector. Worn contacts may create electrical resistance.

L1

L2

L3

O

I
