204

Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014

Chapter 7

PowerFlex 700AFE Drive - Frame 10 Procedures

Follow these steps to remove and replace an existing AC fan system with a new
DC fan system.

1.

Review the General Precautions on page

17

.

2.

Remove power from the drive. See Remove Power from the AFE on page

192

.

3.

If applicable, move the control frame, and remove the screens, airflow
plates, and protective covers. See Move the Control Frame, and Remove
the Screens, Airflow Plate, and Protective Covers (IP21 - Rittal Enclosure)
on page

193

.

4.

Remove the main fan assemblies. See Remove the Main Fan Assembly on
page

198

.

5.

Remove the fan inverter assemblies. See AC Fan Inverter Assembly (20-
FI13301) Removal and Installation on p
age

199

.

6.

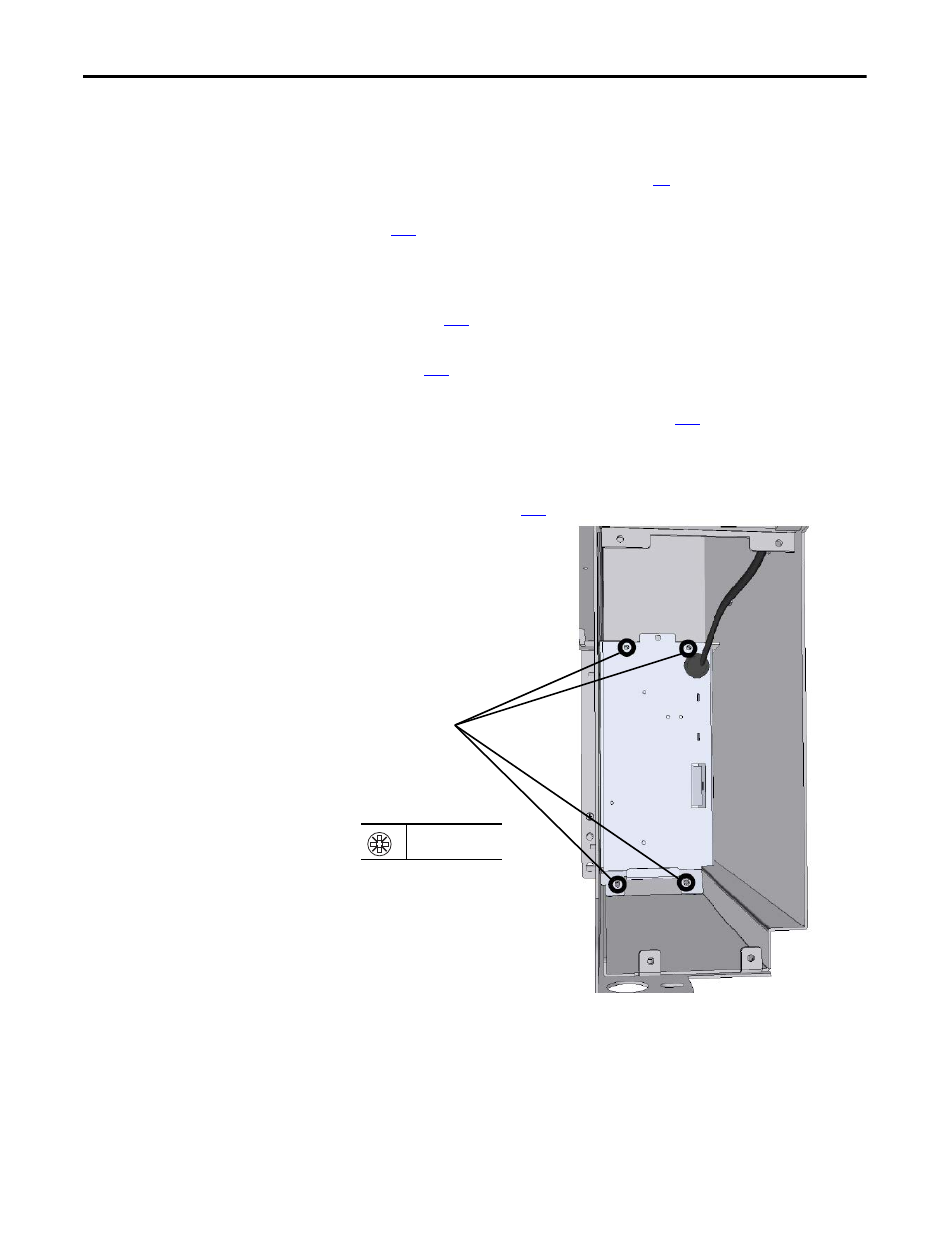

Install the DC fan power supply assemblies in the drive using the four
M5 x10 mm POZIDRIV screws supplied in the kit. See Main DC Fan
Power Supply Circuit Board (SK-H1-DCFANBD1) Removal and
Installation
on page

202

for details.

6

PZ2
3.5 N

m (31.0 lb

in)

Inverter section shown
