Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014 237
PowerFlex 700AFE Drive - Frame 13 Procedures Chapter 8

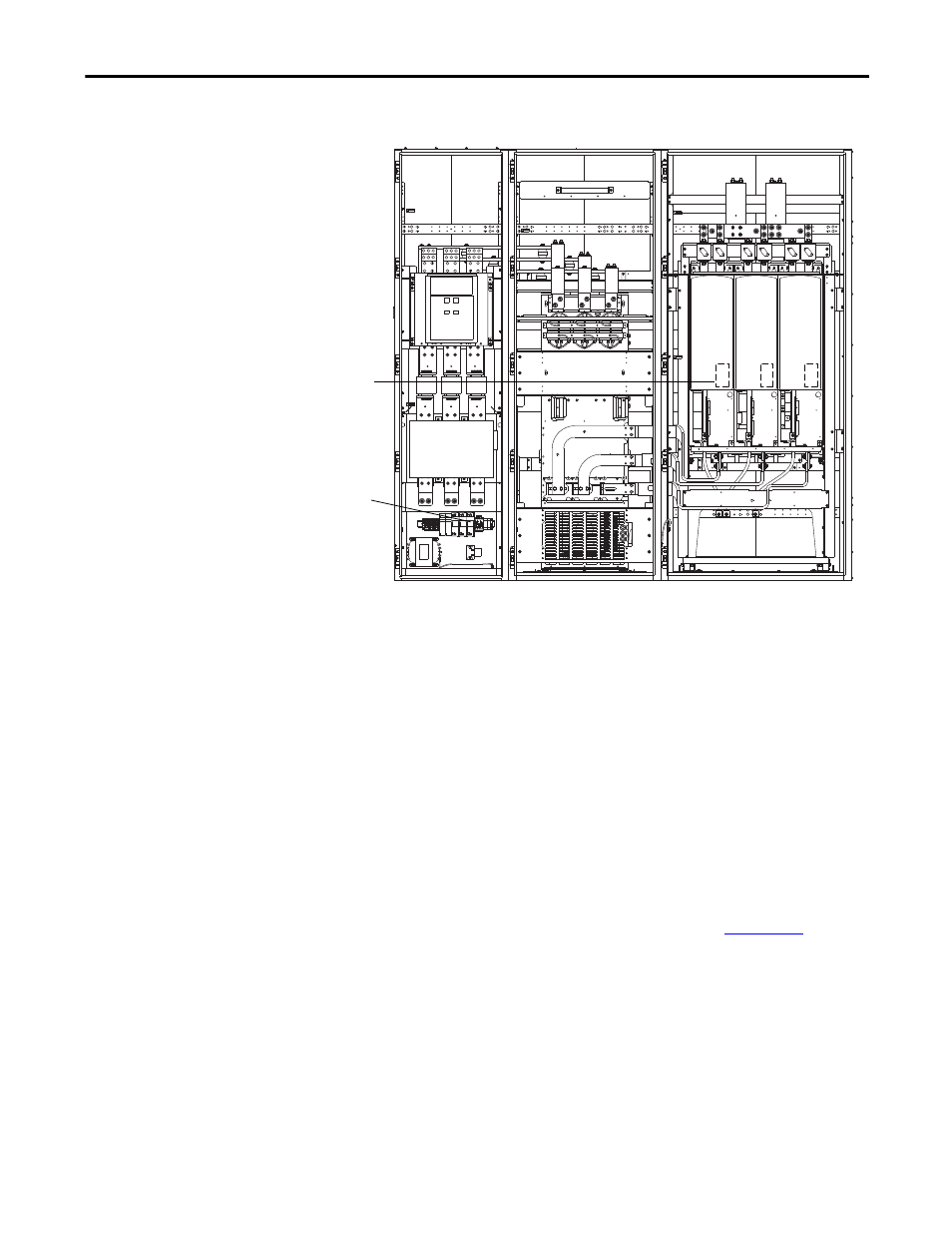

Figure 28 - Frame 13 AFE System - IP20 NEMA / UL Type 1 (MCC) Cabinet
The PowerFlex 700AFE is available in several configurations:
• The IP00 NEMA / UL Type Open drive is an open style frame that is
available through the Rockwell Automation Systems and Solutions
Business. This configuration is repackaged into a cabinet structure that is
consistent with the system.
• The IP20 NEMA / UL Type 1 (MCC) enclosure (finger safe and dripping
water protection).
• The IP21 NEMA / UL Type 1 (Rittal) enclosure (finger safe and no water
protection).
The spare parts listed in this manual fit any of the cabinet types listed above. The
procedures contained in this document pertain to each drive configuration listed
above. Only the enclosure and method to get to the components may vary
slightly. For IP20 and IP21 enclosures access procedures, see the PowerFlex
700AFE Frame 13 Hardware Service Manual, publication
20Y-TG002 .
LCL Filter DC Fan Fuses
Inverter Fan Fuses
