Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014

177

PowerFlex 700H and 700S Drives - Frame 13 Procedures

Chapter 5

9.

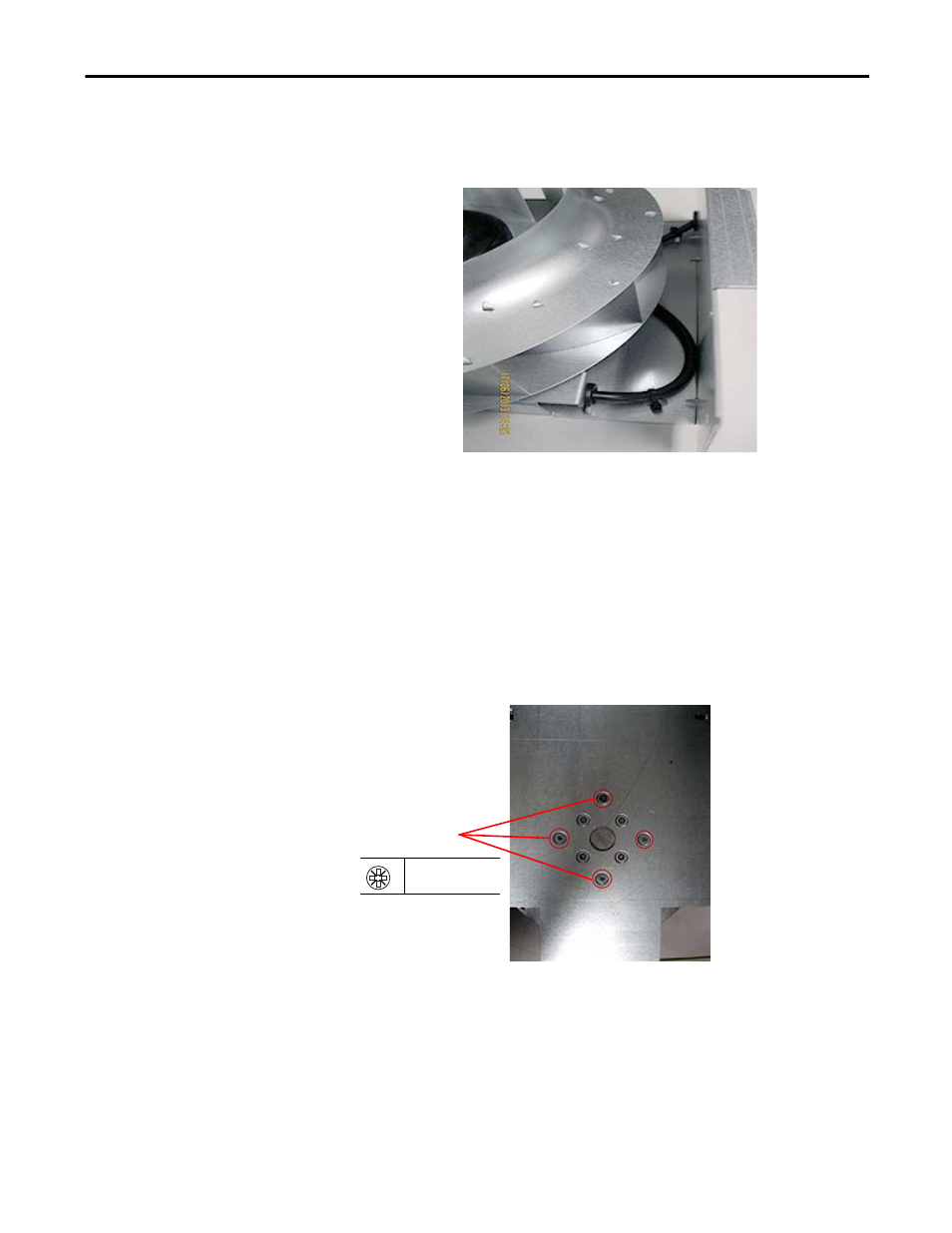

Cut the tie wraps that secure the fan cable to the sheet metal housing.

10.

Remove the grommets from the holes in the sheet metal.

11.

Remove the four screws that secure the fan to the sheet metal housing and
remove the fan. Retain the sheet metal housing for reuse.

Note: The Main AC and DC fans have different mounting hardware and
hole dimensions. The AC fan uses four M4 x 8 mm screws that are spaced
40 mm apart on the housing. The DC fan uses four M5 x 10 mm screws
that are spaced 65 mm apart on the housing. Based on the manufacturing
date, the sheet metal housing was fabricated for either an AC fan, a DC
fan, or both.

12.

Install the new main DC fan in reverse order. Verify that the fan turns
easily and does not make contact with the sheet metal housing or fan cable
before installing the fan assembly in the drive.

11

PZ2
3.5 N

m (31.0 lb

in)
