Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014 193
PowerFlex 700AFE Drive - Frame 10 Procedures Chapter 7
Move the Control Frame, and Remove the Screens, Airflow Plate, and Protective Covers (IP21 -
Rittal Enclosure)
You may need to move the control frame based on the mounting location. You
must remove the screens, air flow plate and protective covers from the AFE in
order to access fan system components on the power structure. Follow these steps
to move the control frame and remove the airflow plate and protective covers and
screens.
1. Review the General Precautions on page 17 .
2. Remove power from the AFE. See Remove Power from the AFE on page
192 .
3. If moving the control frame from a DC input drive with pre-charge
interlock disconnect the wiring between terminals blocks X9 and X15.

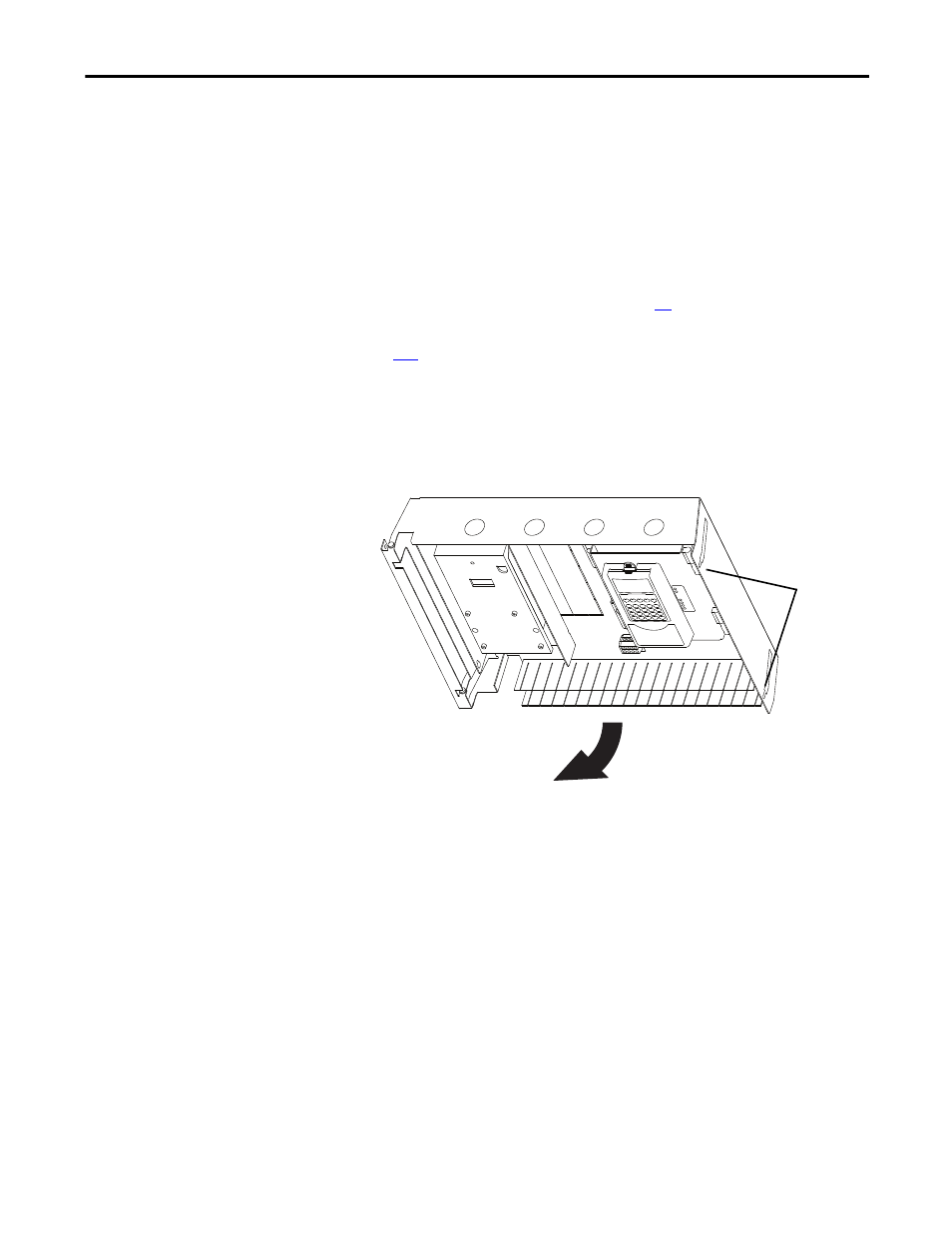

4. If applicable, loosen the two hexalobular screws that secure the control
frame to the AFE enclosure, lift up on the control frame, and swing it out
and away from the power structure.
3
