Rockwell Automation 20Y PowerFlex 700H, 700S, and 700AFE Drive Fan Systems, Frames 9...14 User Manual
Page 152
152
Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014
Chapter 5
PowerFlex 700H and 700S Drives - Frame 13 Procedures
7.

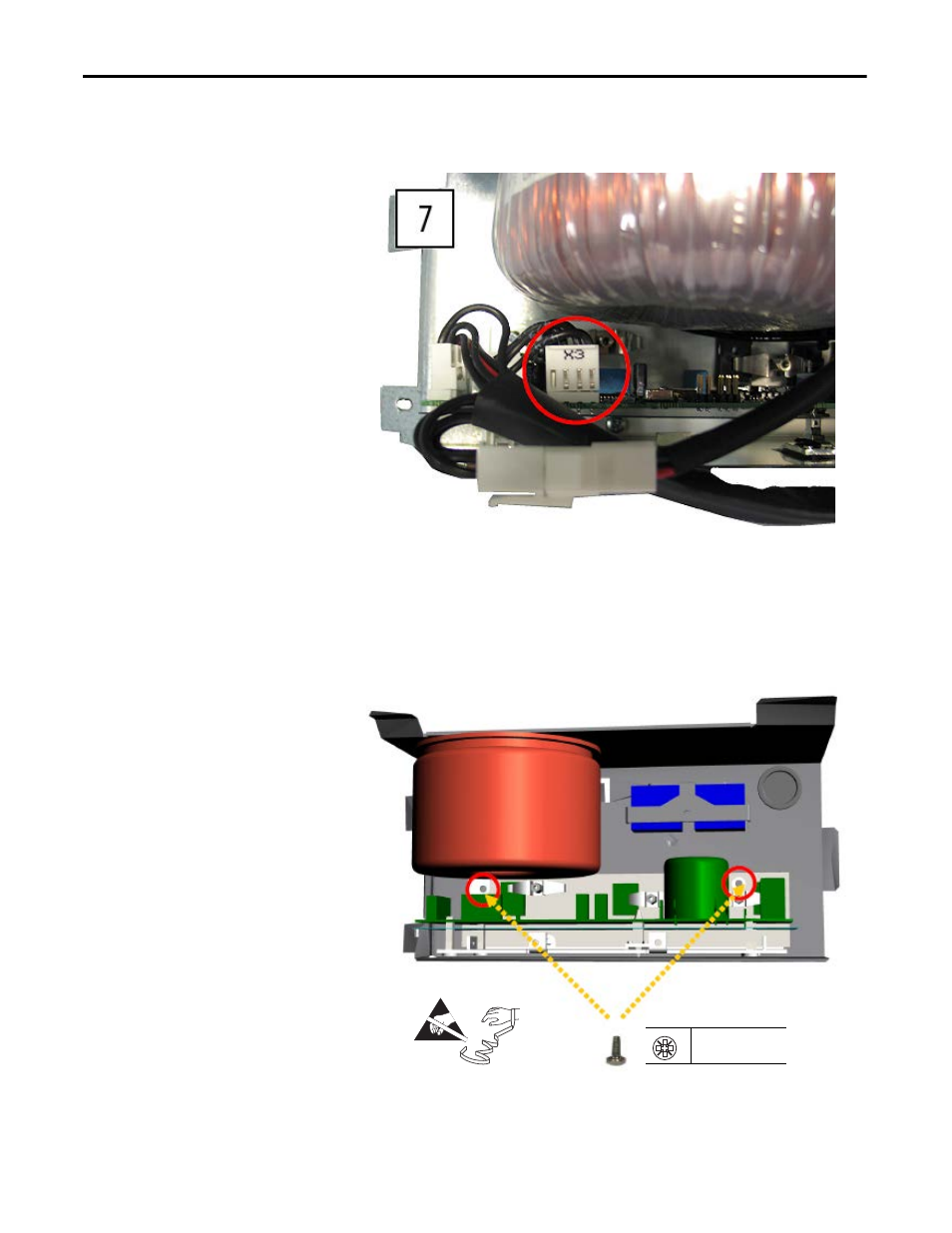

Disconnect the cable from connector X3.
8.
Disconnect the cables from connectors X4 and X5 on the circuit board.
9.
Cut any cables ties, as necessary.
10.
Remove the two M4 x 8 mm POZIDRIV screws that secure the fan
inverter circuit board to the assembly and carefully remove the circuit
board.
11.
Install the fan inverter circuit board in the reverse order of removal.
AC fan inverter assembly shown.
=
10
PZ2
3.0 N
•
m (26.5 lb
•
in)
AC fan inverter assembly shown.
