PowerFlex 700H and 700S Drives - Frame 13 Procedures Chapter 5
Follow these steps to remove and replace the main AC fan inverter capacitor.
1. Review the General Precautions on page 17 .
2. Remove power from the drive. See Remove Power from the Drive on page
134 .
3. Move the control frame, and remove the screens, airflow plates, and
protective covers from the drive. See Move the Control Frame, and
Remove the Screens, Airflow Plates, and Protective Covers on page
135 .
4. Remove the main fan assemblies from the drive. See Remove the Main Fan
Assembly on page
143 .
5. Remove the AC fan inverter assemblies from the drive. See Removing the
Main AC or DC Fan Power Supply Assemblies (Inverter Only) on page
145 .
6. Cut the cable ties that secure the fan capacitor wires to the wire bundle.

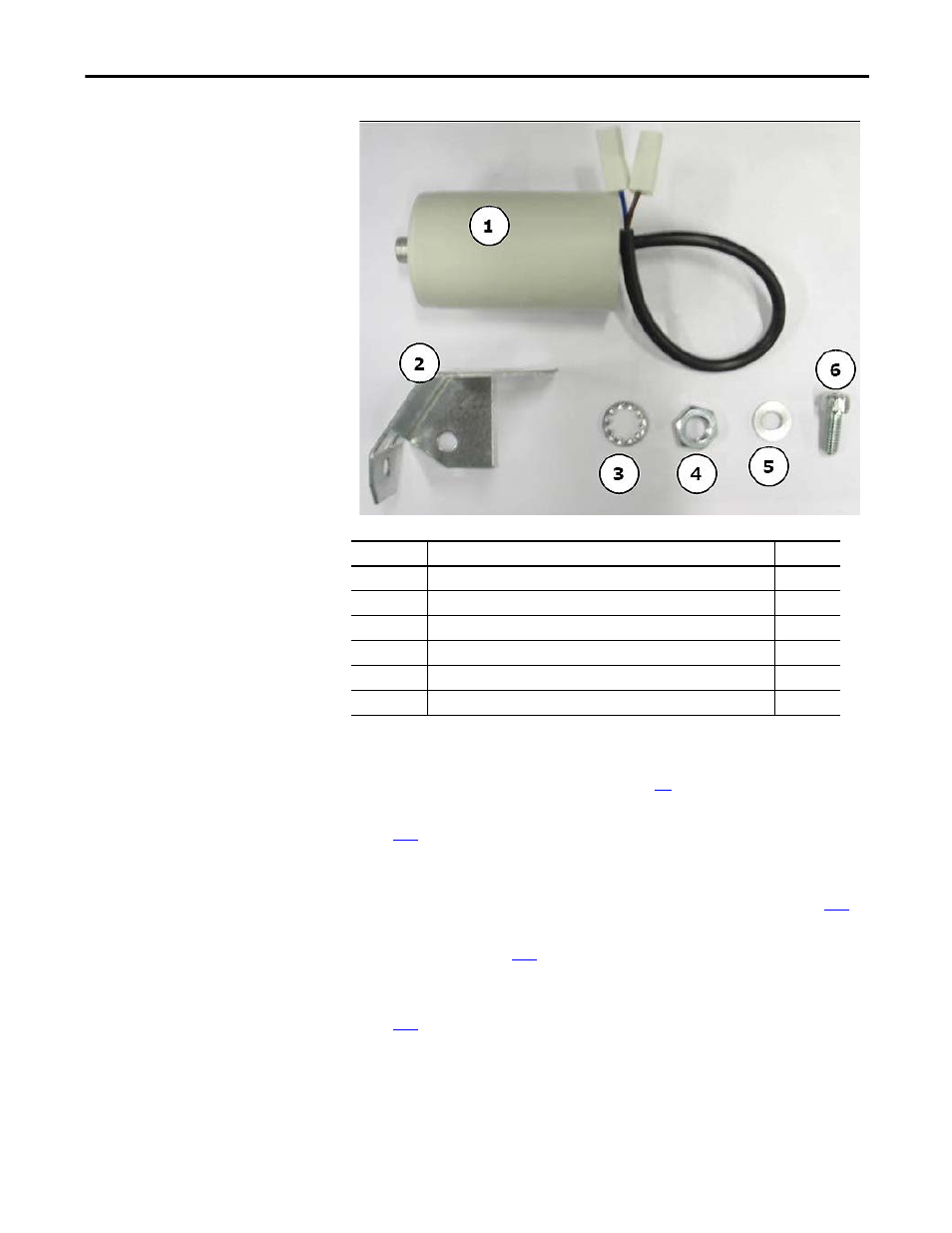

Photo ID# Part Description Quantity
1 Fan capacitor 1
2 Fan capacitor bracket 1
3 Bracket lock washer (M12) 1
4 Bracket nut (M12) 1
5 Bracket spring washer 1
6 Bracket hexagonal socket screw (M8 x 12 mm) 1
