Rockwell Automation 20Y PowerFlex 700H, 700S, and 700AFE Drive Fan Systems, Frames 9...14 User Manual
Page 146
146
Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014
Chapter 5
PowerFlex 700H and 700S Drives - Frame 13 Procedures
6.

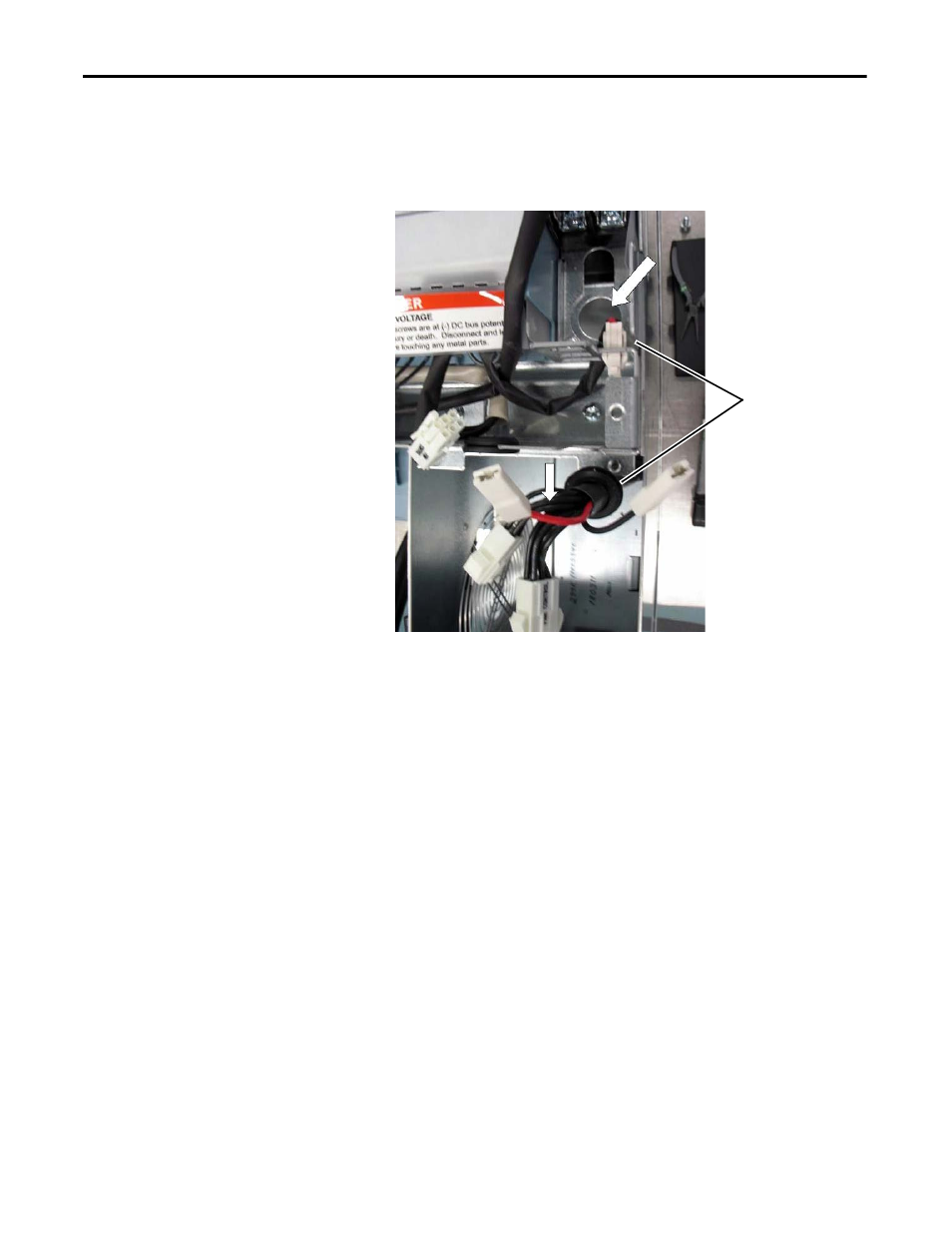

Remove the connectors by pinching the tabs together and sliding them out
of the sheet metal bracket.
7.
Carefully push the rubber grommet with the fan wires and connectors
through the hole in the drive chassis.
8
