264

Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014

Appendix A

PowerFlex 700H and 700S Diagnostic Procedures

Checking the Main Fan
Supply Wires

Verify that power has been removed from the drive. To disconnect the fan power
wire connection, refer to the chapter in this manual that apply to your drive frame
size.

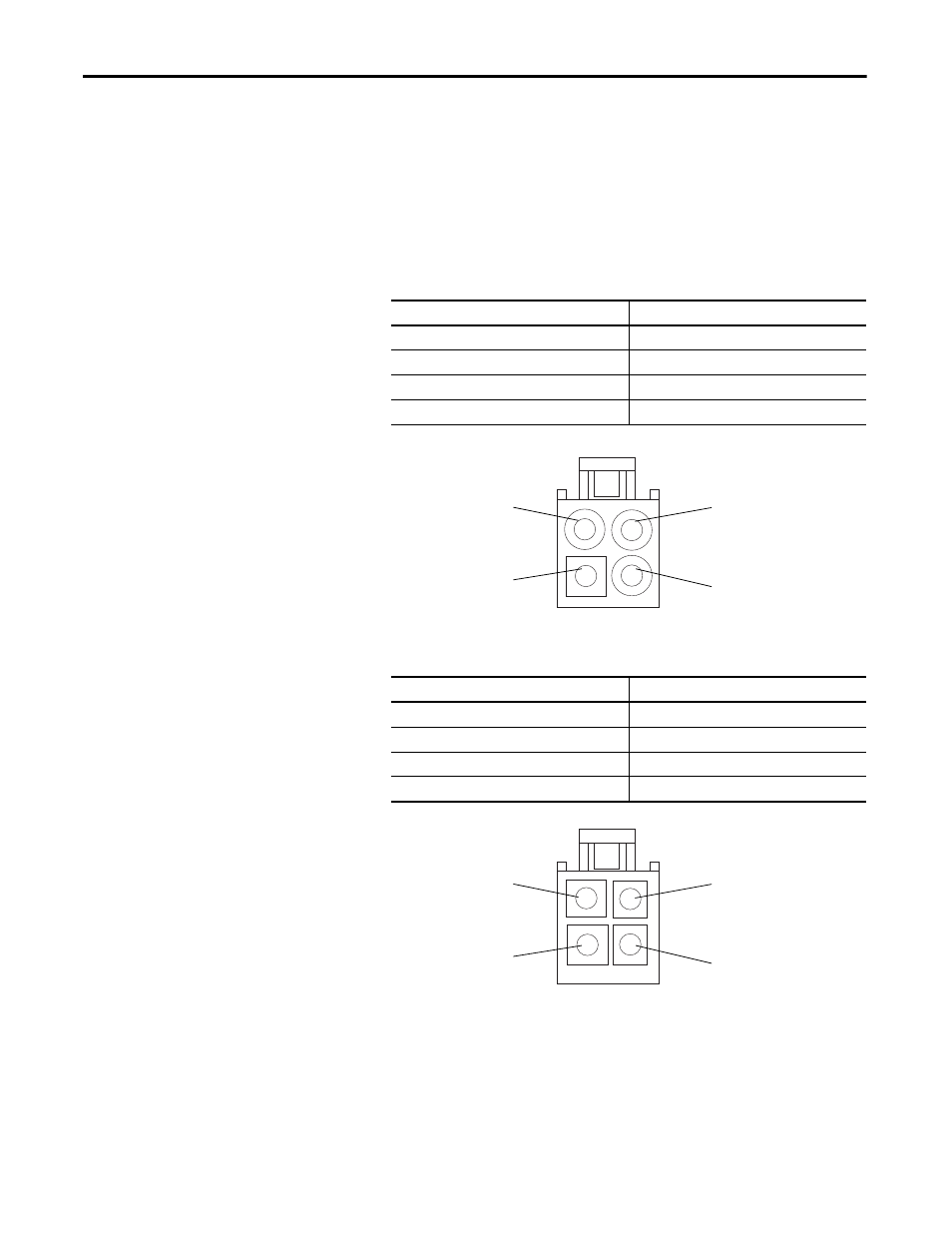

Disconnect the fan power supply connector from the drive and measure
the resistance between the fan supply wires.

AC Fan

: If the measurements are not similar to those in this table, replace

the AC fan.

DC Fan

: If the measurements are not similar to those in this table, replace

the DC fan.

Connection wires

Resistance ±5%

Black-Brown

62

Ω

Brown-Blue

36

Ω

Blue-Black

27

Ω

Green-chassis

0

Ω

Connection wires

Resistance ±5%

Red-Blue

∞ Ω

Red-White

∞ Ω

White-Yellow

∞ Ω

Blue-White

∞ Ω

Blue (Motor) Pin 4

Green/Yellow (Ground) Pin 1

Brown (Motor) Pin 3

Black (Motor) Pin 2

AC Fan Pinouts

White (Tach Output) Pin 3

Red (+) Pin 1

Blue (-) Pin 4

Yellow (Control Output) Pin 2

DC Fan Pinouts
