Chapter 5
PowerFlex 700H and 700S Drives - Frame 13 Procedures
5.

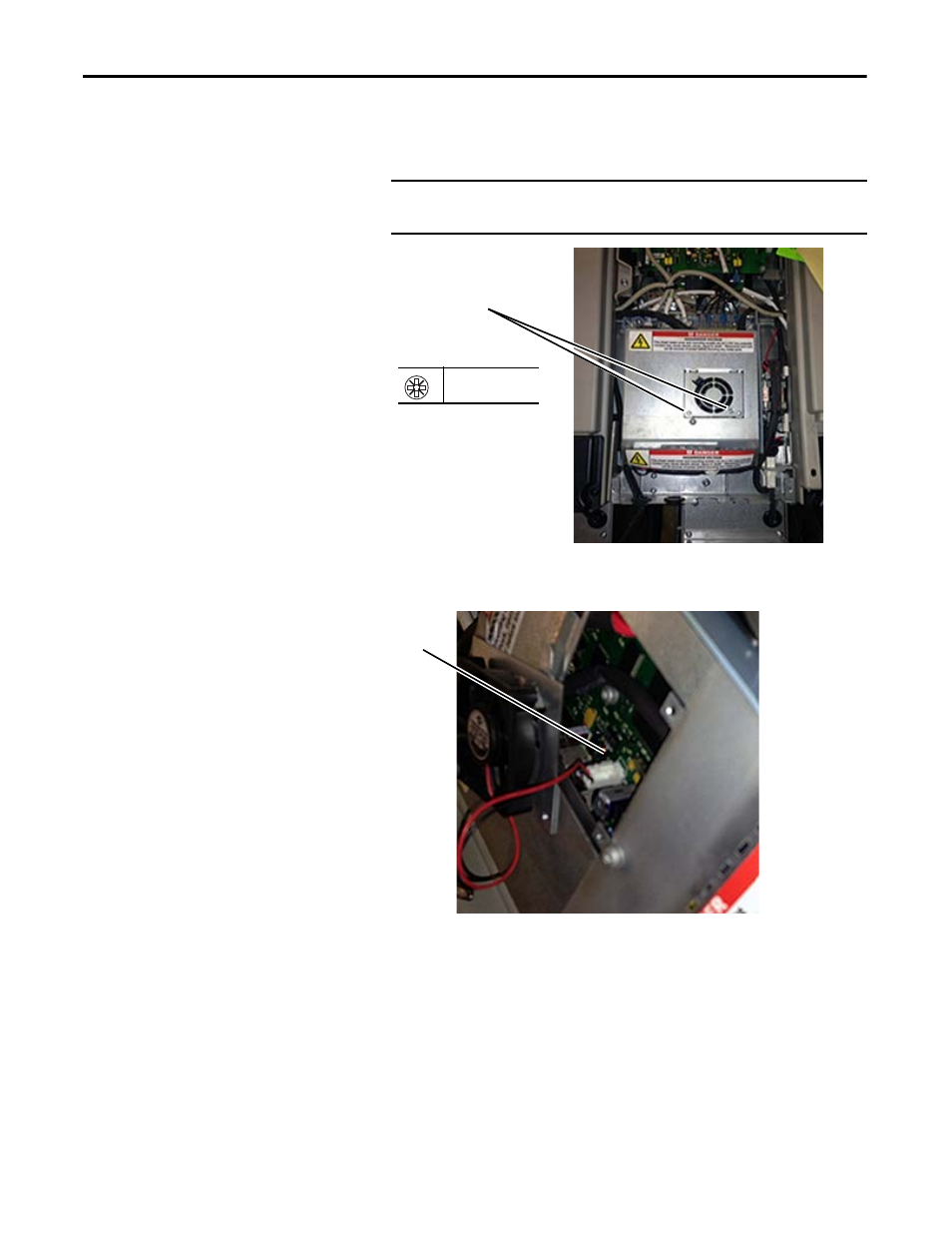

Remove the two M3 x 5 mm POZIDRIV screws that secure the cooling
fan assembly to the ASIC circuit board assembly and rotate the fan
assembly out of the assembly.
6.
Disconnect the cable from connector X1 on the ASIC board and remove
the fan assembly from the drive.
IMPORTANT
After removing the fan assembly from the ASIC board assembly, the
fan power cable will still be connected to the ASIC circuit board.
5
PZ2
3.0 N
•
m (26.5 lb
•
in)
6
