Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014

25

PowerFlex 700H and 700S Drives - Frame 9 Procedures

Chapter 1

Removing the Main Fan Inverter Capacitor Bracket

In order to test and/or replace other fan system components in the drive, you
must first remove the main fan inverter cooling fan capacitor bracket from the
drive.

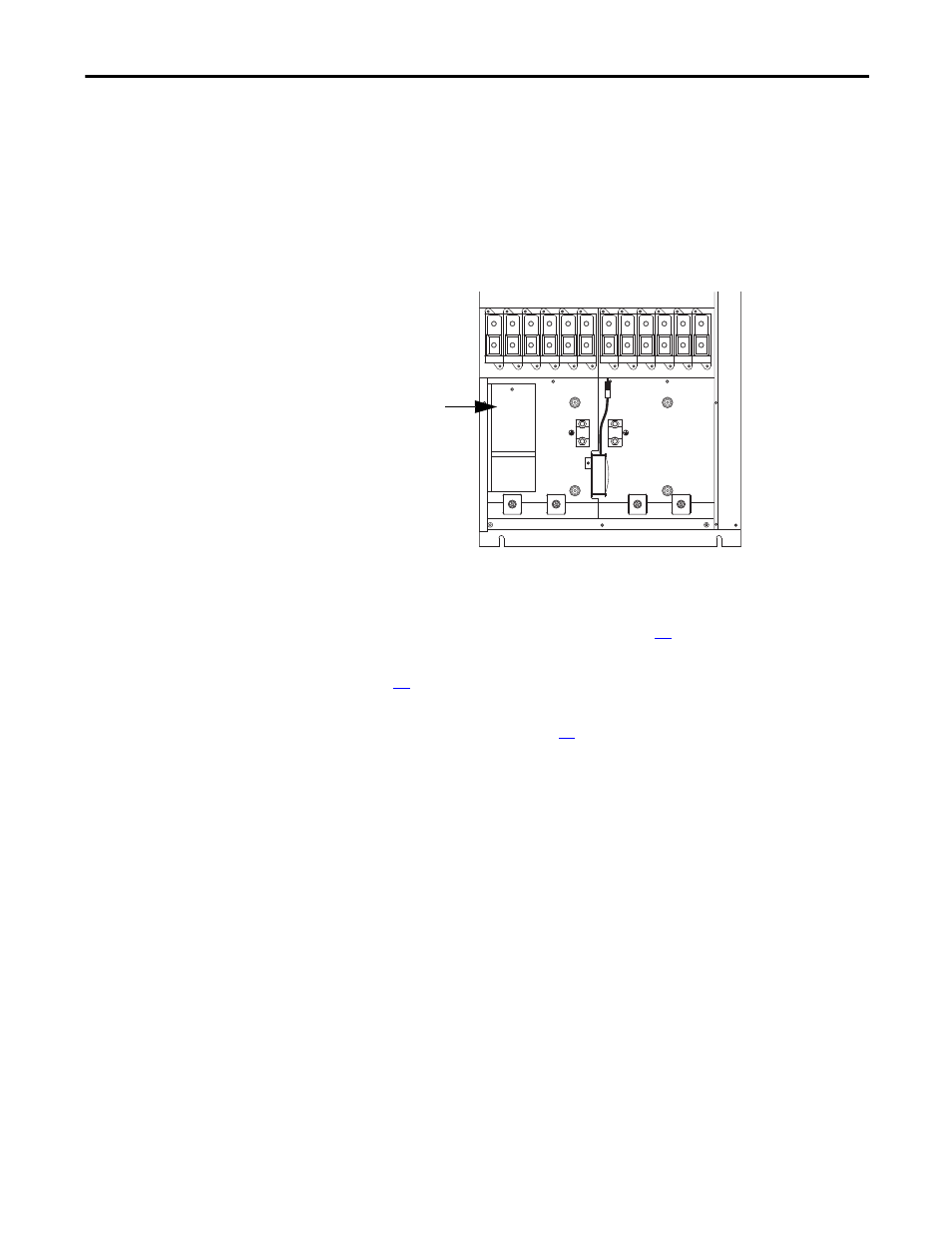

The main fan inverter compartment is located in the bottom, left-hand corner of
the drive, under the connection plate.

Follow these steps to remove the main fan inverter capacitor bracket.

1.

Review the General Precautions on page

17

.

2.

Remove power from the drive. See Remove Power from the Drive on page

23

.

3.

Remove the lower protective cover from the drive. See Remove the Lower
Protective Cover on
page

24

.
