60 Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014
Chapter 2 PowerFlex 700H and 700S Drives - Frame 10 Procedures
Move the Control Frame and Remove the Air Flow Plate and
Protective Covers
You must move the control frame and remove the air flow plate and protective
covers from the drive in order to access fan system components on the drive
power structure. Follow these steps to move the control frame and remove the air
flow plate and protective covers.
1. Review the General Precautions on page 17 .
2. Remove power from the drive. See Remove Power from the Drive on page
59 .

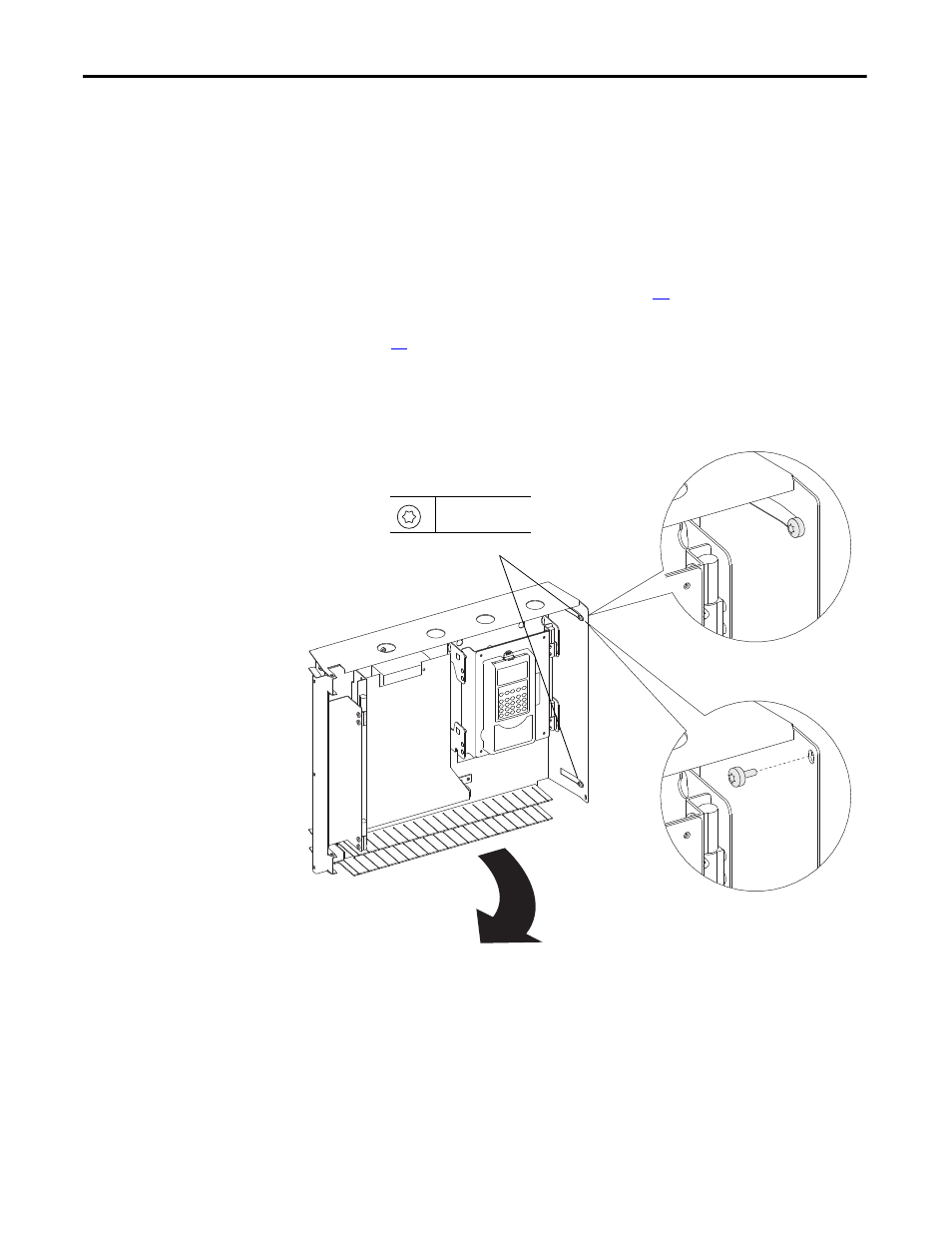

3. Loosen or remove the two hexalobular screws that secure the control frame
to the drive enclosure.
4. Swing the control frame out and away from the power structure.
OR
3
4
T20
3.0 N
• m (27 lb • in)
