154

Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014

Chapter 5

PowerFlex 700H and 700S Drives - Frame 13 Procedures

AC to DC Main Fan System (SK-x1-DCFANRETROFIT-F13x and -14x)
Retrofit

Table 3

lists the six AC to DC fan retrofit kits available for installation in frame

13 and 14 drives. See DC Fan Systems on page

124

to identify the correct kit for

your drive.

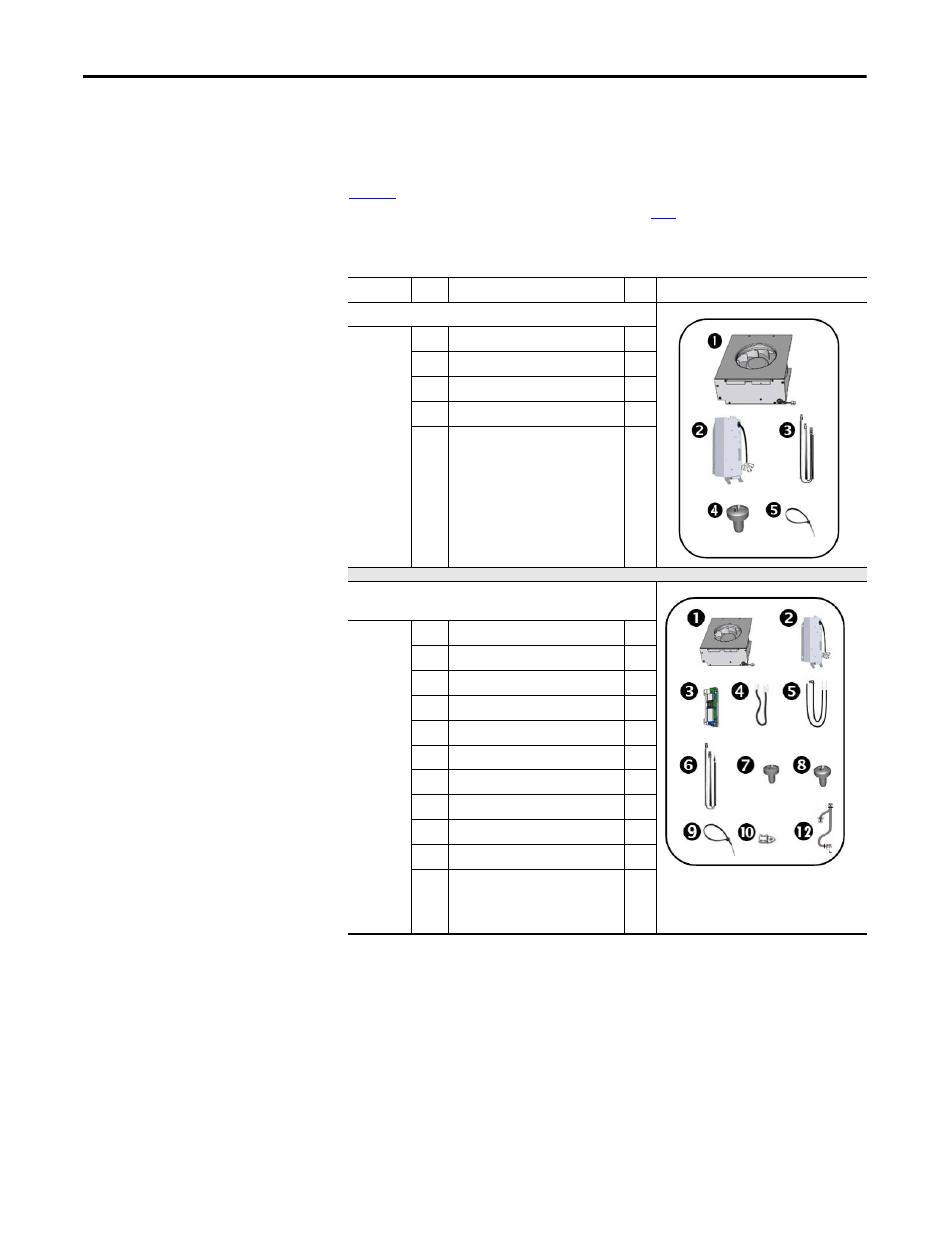

Table 3 - Available AC to DC Main Fan Inverter Systems Retrofit Kits

Cat. No.

Item

Description

Qty

Kit Contents

SK-Y1-DCFANRETROFIT-F13 - For DC input frame 13 drives

1

DC fan assembly

3

2

DC fan power supply assembly

3

3

Wire harness

1

4

M5 x 10 mm POZIDRIV screws

24

5

Wire ties

9

SK-H1-DCFANRETROFIT-F13A - For AC input frame 13 drives w/2

NFEs

1

DC fan assembly

5

2

DC fan power supply assembly 1

3

3

DC fan power supply assembly 2

2

4

DC fan power supply wire harness 1

2

5

DC fan power supply wire harness 2

2

6

DC chaining wire harness

1

7

M4 x 8 mm POZIDRIV screws

4

8

M5 x 10 mm hexagonal socket screws

32

9

Wire ties

21

10

Wire tie mounting clamps

2

12

Wire harness for 2 NFE

1
