Rockwell Automation 20Y PowerFlex 700H, 700S, and 700AFE Drive Fan Systems, Frames 9...14 User Manual
Page 65
Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014
65
PowerFlex 700H and 700S Drives - Frame 10 Procedures
Chapter 2

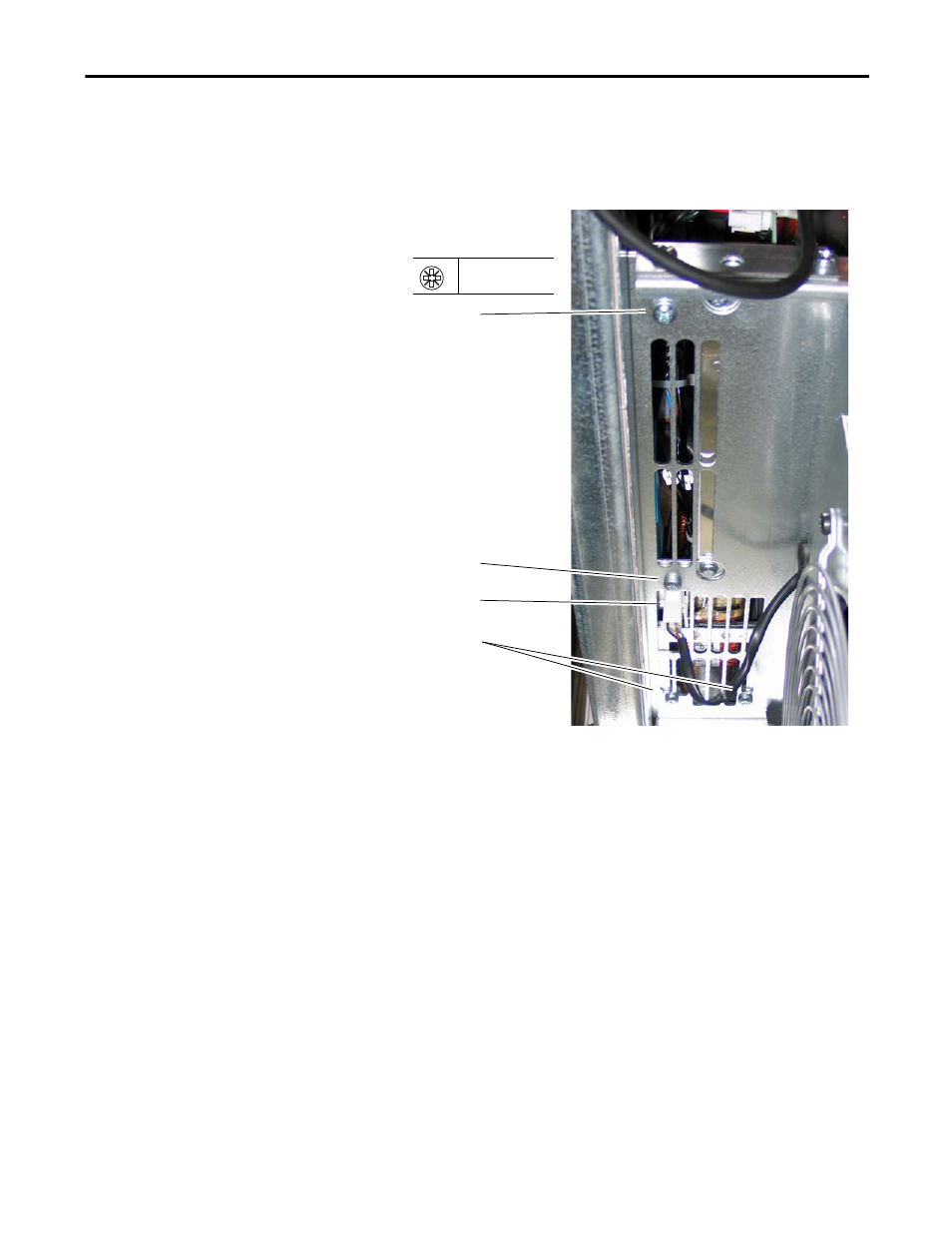

6.
Disconnect the fan motor cables from the bottom of the fan power supply
assembly.
7.
Remove the four M5 x 10 mm POZIDRIV screws that secure the bottom
of the fan power supply assemblies to the drive frame.
7
7
7
6
PZ2
2.3 N
•
m (20.4 lb
•
in)
All screws:
Note: Left- side AC fan
power supply shown
