PowerFlex 700H and 700S Drives - Frame 13 Procedures

Chapter 5

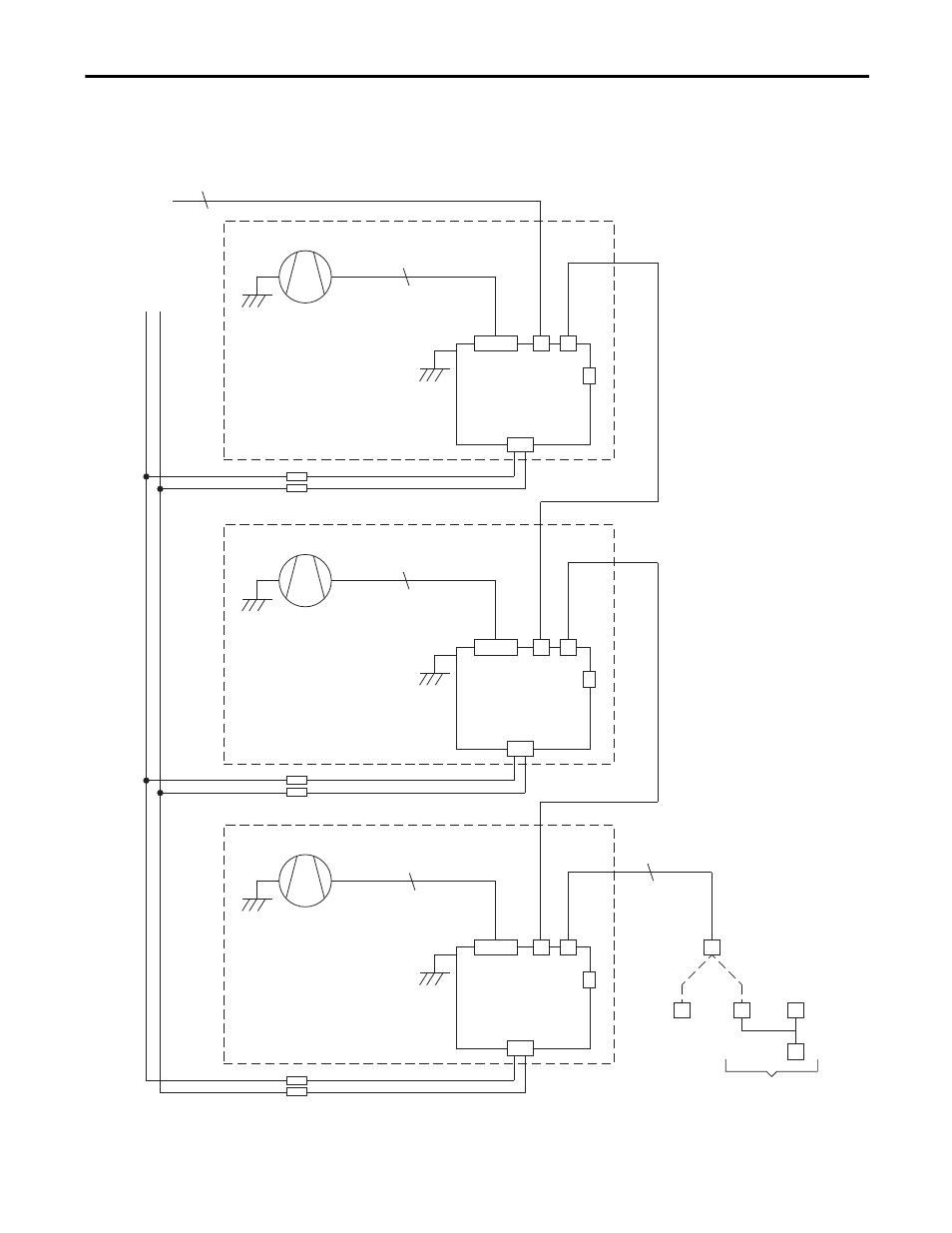

Figure 17 - Frame 13 AC Input Drive Inverter DC Fan System

3

To ASIC Circuit Board X11

(Fan Control)

4

Main DC Fan

V Phase Fan Module

DC+

Isolated 48 VDC Power
Supply Circuit Board

X81

X8

X3

X82

X2

4

Main DC Fan

W Phase Fan Module

Isolated 48 VDC Power
Supply Circuit Board

X81

X8

X3

X82

X2

4

Main DC Fan

U Phase Fan Module

Isolated 48 VDC Power
Supply Circuit Board

X81

X8

X3

X82

X2

DC–

X3

X3

Ending Terminal

in FI13

In Frame 13 Only

X2 / ASIC

X1 / NFE

4
