Rockwell Automation 20Y PowerFlex 700H, 700S, and 700AFE Drive Fan Systems, Frames 9...14 User Manual
Page 77
Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014
77
PowerFlex 700H and 700S Drives - Frame 10 Procedures
Chapter 2
10.

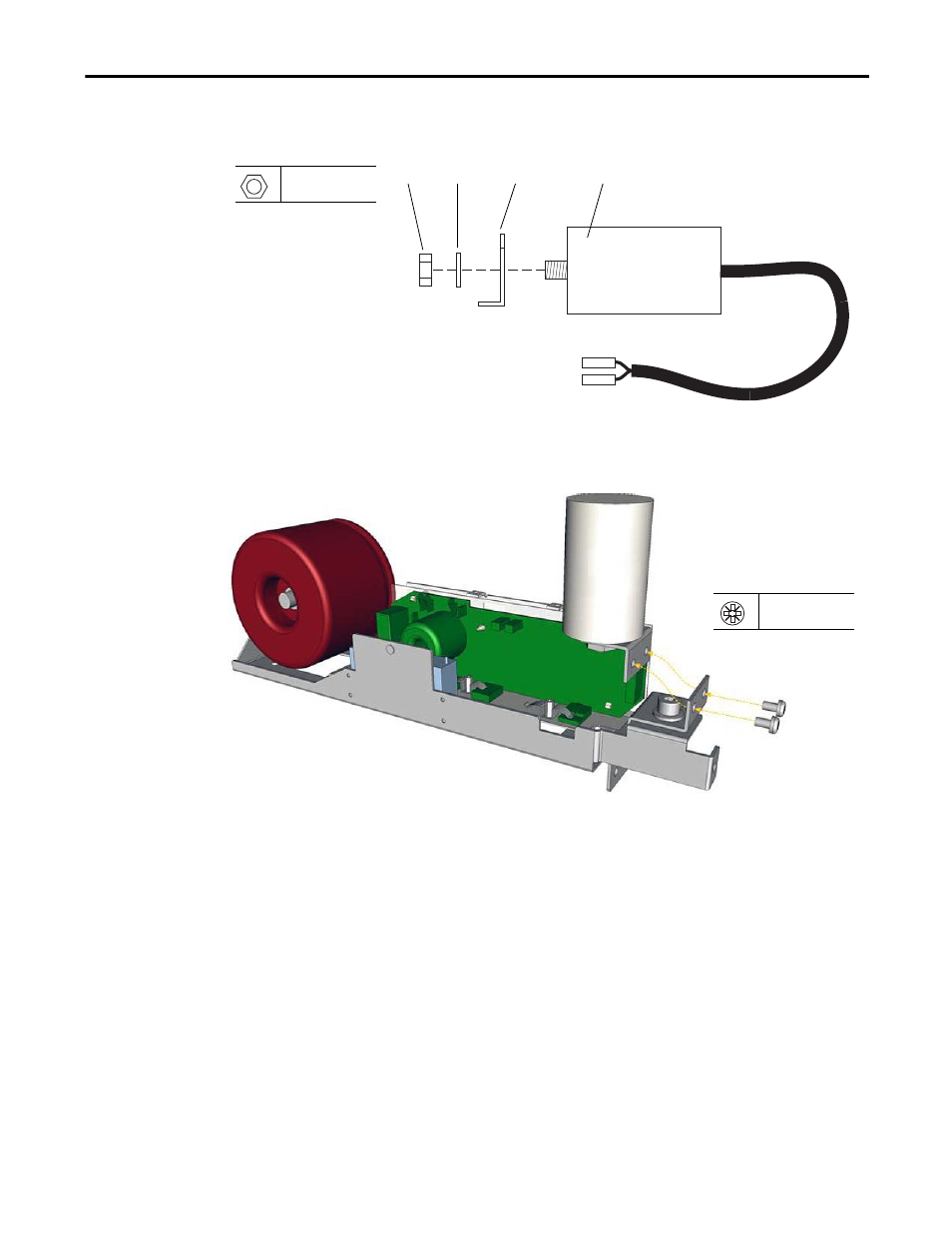

Secure the new (series B) AC fan capacitor to the new AC fan capacitor
bracket using the M12 nut and lock washer provided in the kit.
11.
If necessary, secure the new AC fan capacitor bracket assembly to the AC
fan inverter assembly using the two M5 x 10 mm POZIDRIV screws
provided in the kit.
12.
Install the AC fan inverter assembly in the reverse order of removal.
19 mm
5 N
•
m (44 lb
•
in)
Nut
Washer
Bracket
Capacitor
PZ2
4 N
•
m (35 lb
•
in)
11
Note: AC Fan System Shown
