Rockwell Automation 20Y PowerFlex 700H, 700S, and 700AFE Drive Fan Systems, Frames 9...14 User Manual
Page 109
Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014
109
PowerFlex 700H and 700S Drives - Frame 11 Procedures
Chapter 3
11.

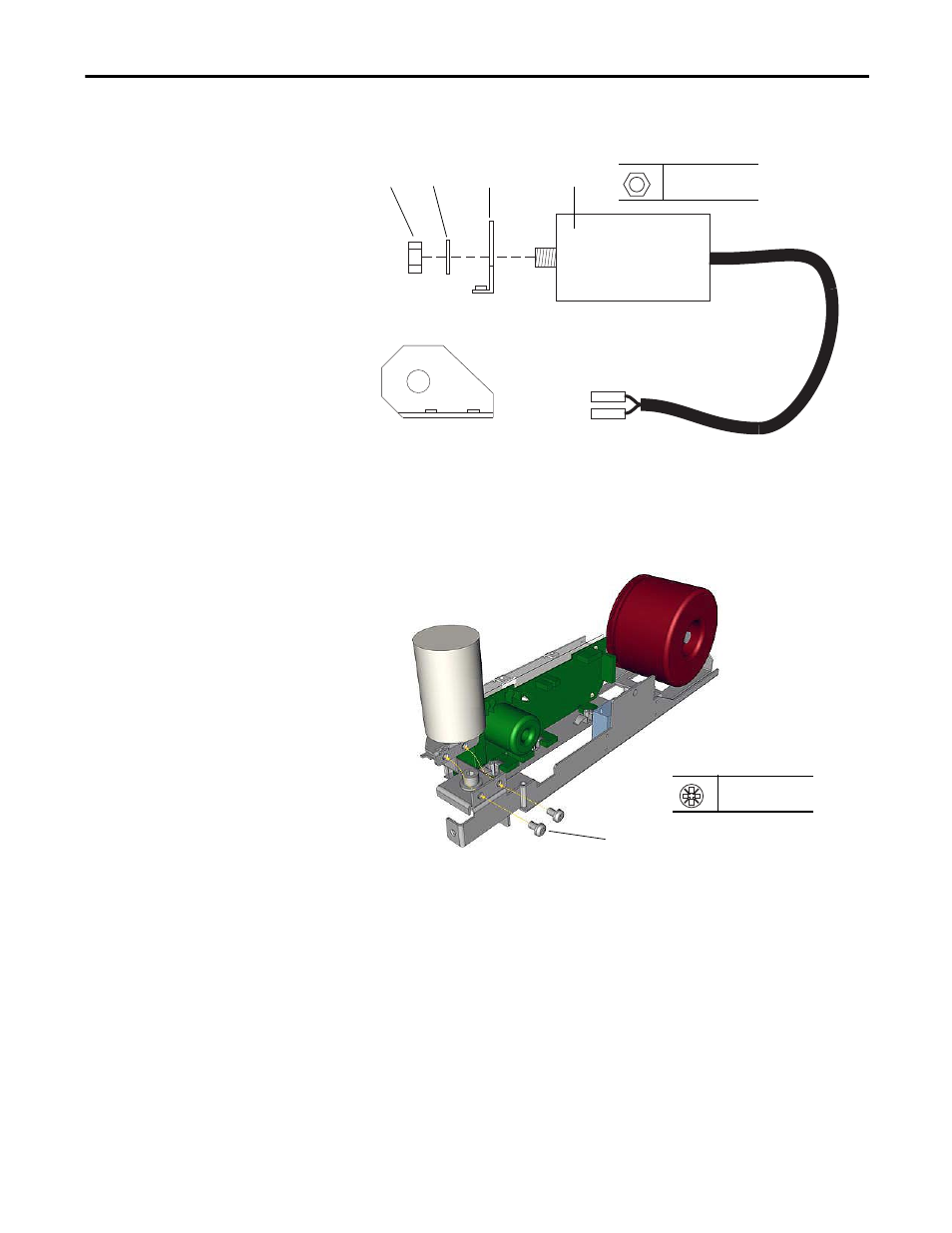

Secure the new AC fan capacitor to the new bracket using the M12 nut
and lock washer provided in the kit.
12.
Secure the new capacitor bracket assembly to the AC fan inverter assembly
using the two M5 x 10 mm POZIDRIV screws provided in the kit.
13.
Install the AC fan inverter assembly in the reverse order of removal.
Nut
Washer
Bracket
Capacitor
Bracket Front
View
12 mm
5 N
•
m (44 lb
•
in)
12
PZ2
4 N
•
m (35 lb
•
in)
Note: AC Fan System Shown
