Rockwell Automation Publication PFLEX-IN029B-EN-P - August 2014

207

PowerFlex 700AFE Drive - Frame 10 Procedures

Chapter 7

Main AC Fan Inverter Capacitor (SK-H1-FANCAPF1314) Removal and Installation

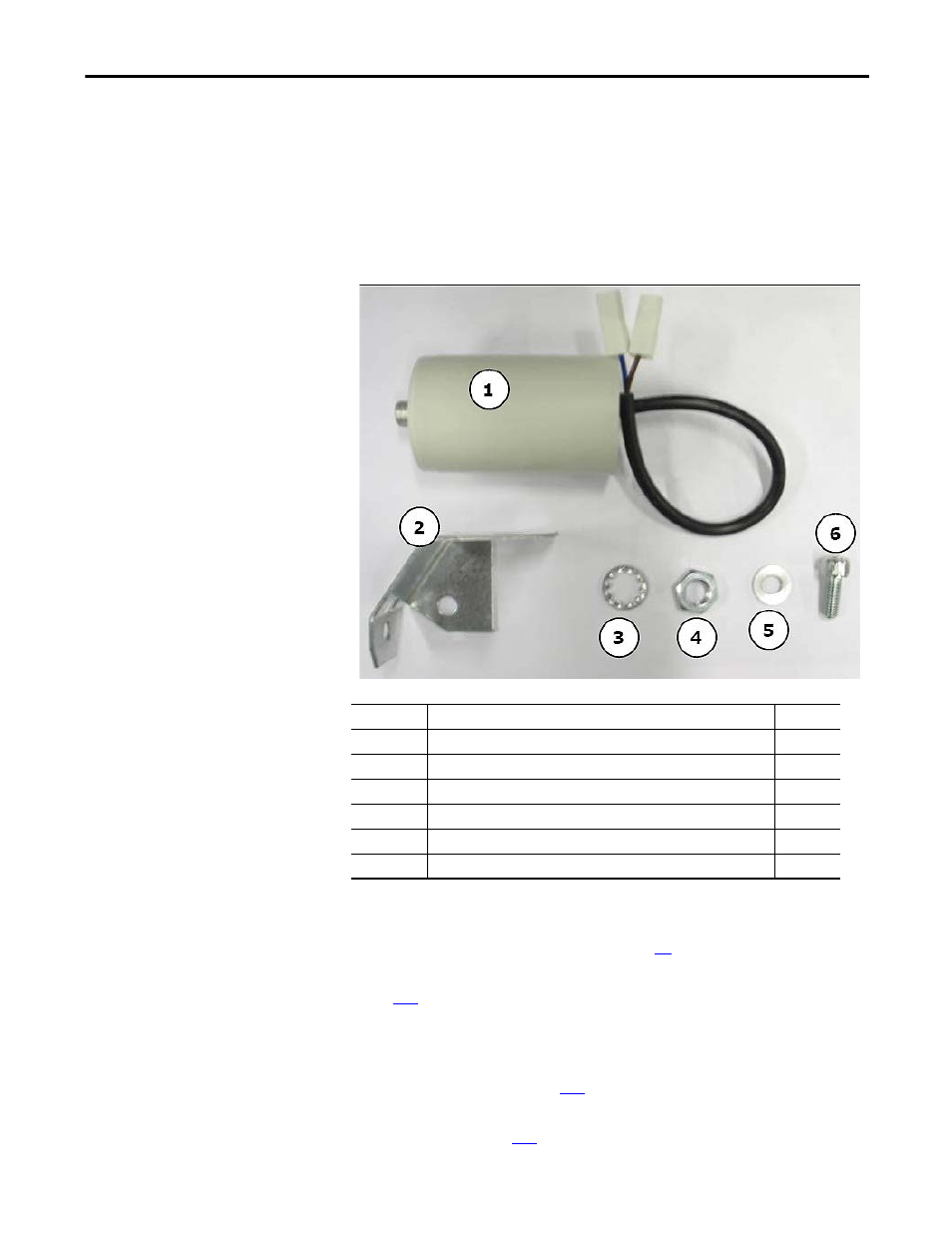

Note: The AC fan inverter capacitor replacement kit (SK-H1-FANCAP-F1314)
contains a new sheet metal bracket, hardware and fasteners, and a series B
capacitor (identified in the table and shown below). The series B capacitor (50
mm dia. x 62 mm tall) is larger than the series A capacitor (35 mm dia. x 57 mm
tall). If a series A capacitor is currently installed, always replace it with the new
series B capacitor.

Follow these steps to remove and replace the main AC fan inverter capacitor.

1.

Review the General Precautions on page

17

.

2.

Remove power from the AFE. See Remove Power from the AFE on page

192

.

3.

If applicable, move the control frame, and remove the screens, airflow
plate, and protective covers from the AFE. See Move the Control Frame,
and Remove the Screens, Airflow Plate, and Protective Covers (IP21 -
Rittal Enclosure) o
n page

193

.

4.

Remove the main fan assembly from the AFE. See Remove the Main Fan
Assembly o
n page

198

.

Photo ID#

Part Description

Quantity

1

AC fan capacitor

1

2

AC fan capacitor bracket

1

3

Bracket lock washer (M12)

1

4

Bracket nut (M12)

1

5

Bracket spring washer

1

6

Bracket hexagonal socket screw (M8 x 12 mm)

1
