Stabil-TRAK™ System and Boom Interlock System
10.44 Model 8042, 10042, 10054 Legacy Rev. 10/03
10.12.9 Hydraulic Circuit Operation - SLOW PIVOT Mode, Base Oil Out
Conditions:
• Boom angle is above 40°
• Park brake OFF
• Service brake DISENGAGED
• Travel select lever in (F) FORWARD or (R)
REVERSE position
Operation:

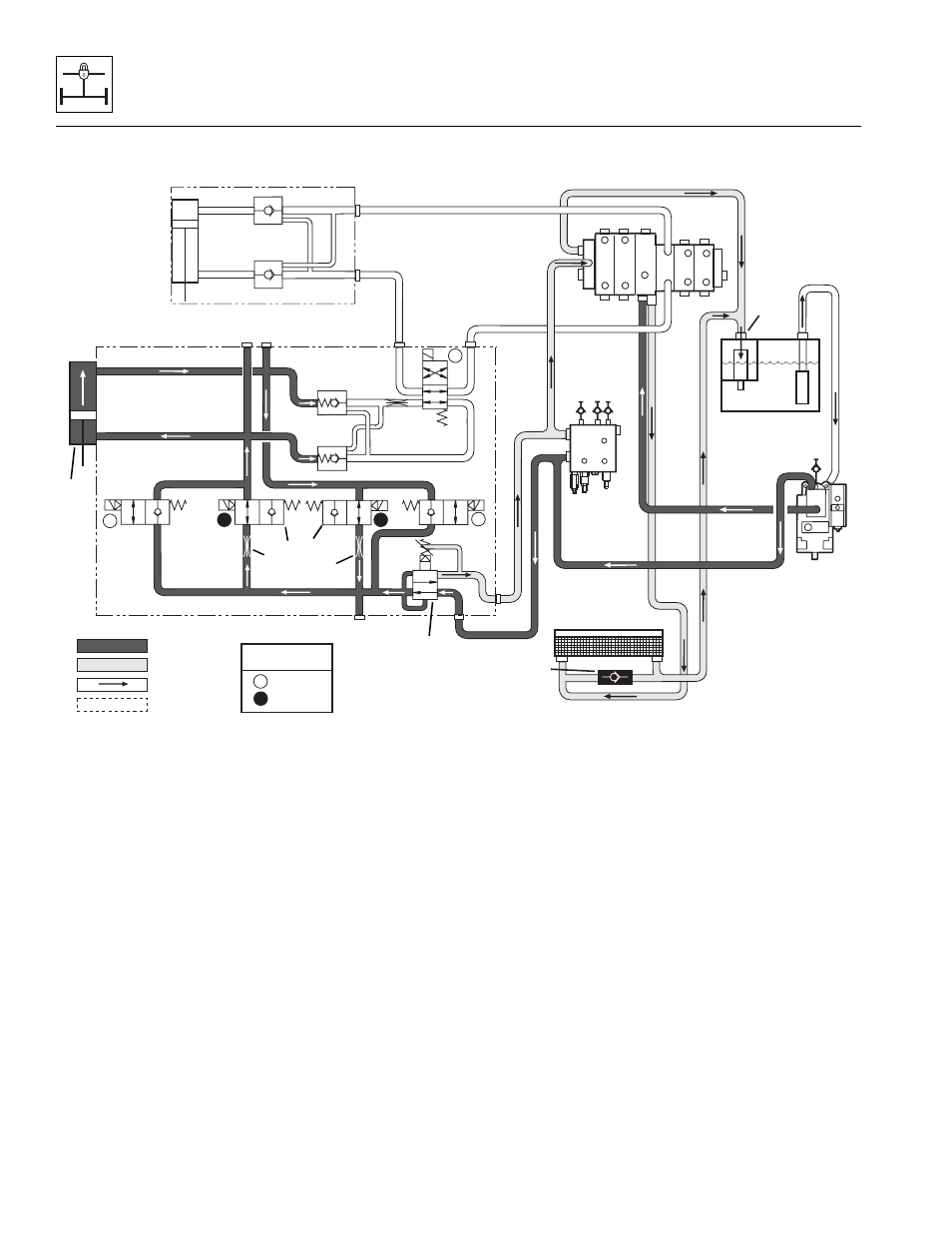

As the boom is raised above 40°, the boom proximity
switch is deactivated causing solenoids 12A and 12B to
de-energize and solenoids 4A and 4B to energize. This
allows oil to flow from the base end of the Stabil-TRAK™
cylinder (1), through solenoid-operated valve 4A (2),
through a .060" orifice (3), through another .060" orifice (4),
then through solenoid-operated valve 4B (5), to the rod
end of the Stabil-TRAK™ cylinder.
The .060" orifices (3 and 4) in solenoid-operated valves
4A and 4B will slow the movement of the rear axle in
reaction to terrain changes. The frame sway will react
normally in this mode.
Because of the greater volume of oil in the base end,
extra oil is returned to the tank through the 100 psi (7 bar)
reducing cartridge (6) in the Stabil-TRAK™ manifold. The
restrictions produce the slow movement, or SLOW PIVOT
mode.
