Transmission: ZF 4 WG-98 TC
6.2 Model 8042, 10042, 10054 Legacy Rev. 10/03
6.1 TRANSMISSION ASSEMBLY
COMPONENT TERMINOLOGY
To understand the safety, operation and maintenance
information presented in this section, it is necessary that
the operator/mechanic be familiar with the names and
locations of the major assemblies of the transmission.

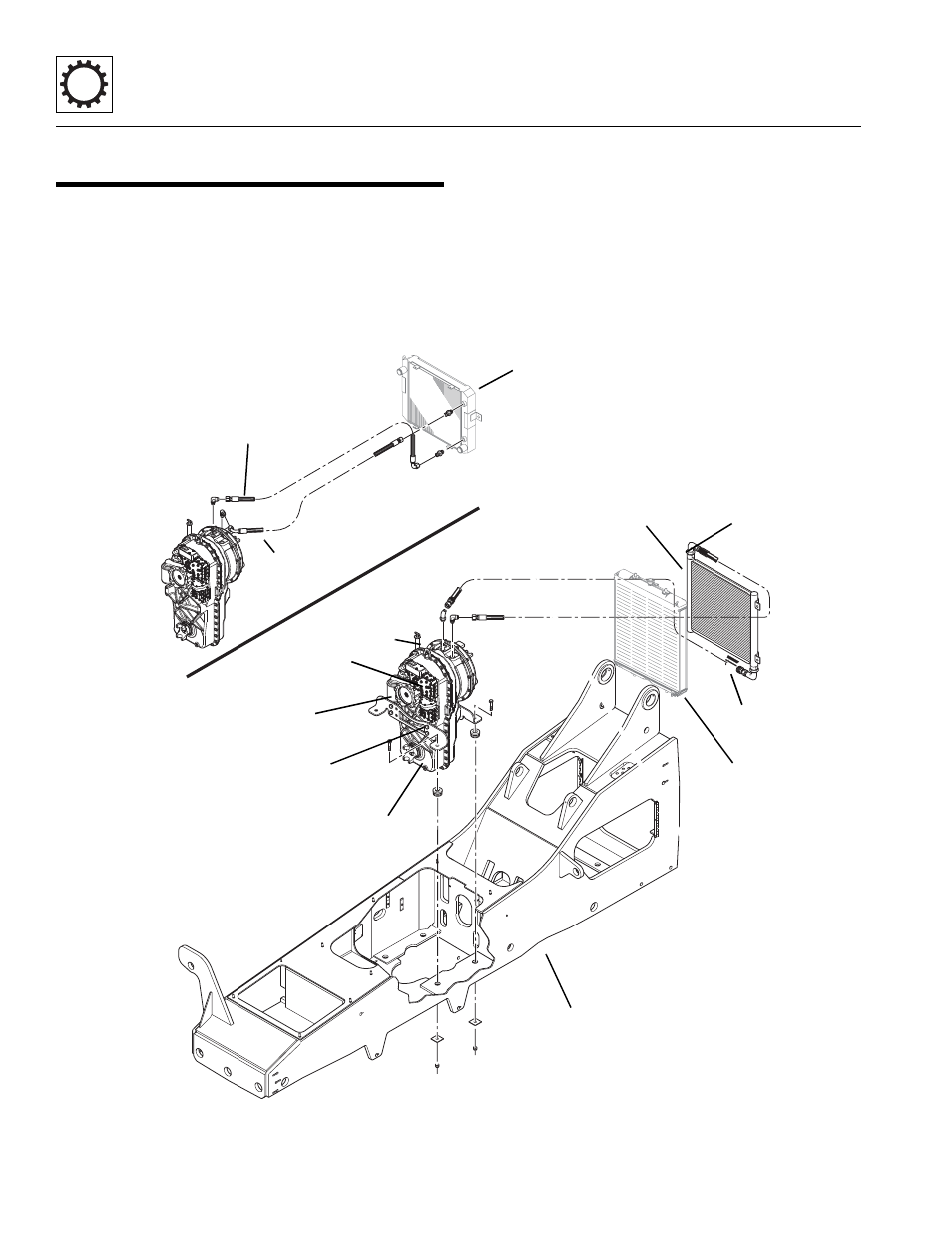

The following illustration identifies the components that
are referred to throughout this section.
MH4480
Vehicle Frame
(Reference)
Output Shaft
Dipstick and Fill
Outlet (Cooler)
Hose
Radiator/Oil
Cooler
Inlet (Cooler)
Hose
Torque
Converter
Housing
Valve Block (Con-
trol Circuit 1)
Oil Filter
Valve Block
(Control Circuit 2)
8042 S/N 13198 thru 18990
10042 S/N 13198 thru 19030
10054 S/N 13198 thru 19079
8042 S/N 18991 & After
10042 S/N 19031 & After
10054 S/N 19080 & After
Outlet (Cooler)
Hose
Inlet (Cooler)
Hose
Oil Cooler
Radiator
