4.7 Model 8042, 10042, 10054 Legacy Rev. 10/03
Cab and Covers
3. Unlock and open the rear door. Allow the engine and
hydraulic fluid to cool.
4. Disconnect the battery negative (-) cable or cables at
the battery negative (-) terminal.
5. Remove the four button-head screws securing the
lower dash panel (9) to the cab. Remove the lower
dash panel (9).
6. Remove the steering wheel. (Refer to Section 4.3.2,
a. “Steering Wheel Removal.”)
7. Remove the transmission travel and gear selector
lever. (Refer to Section 4.3.2, c. “Transmission Travel
and Gear Select Lever Removal.”)

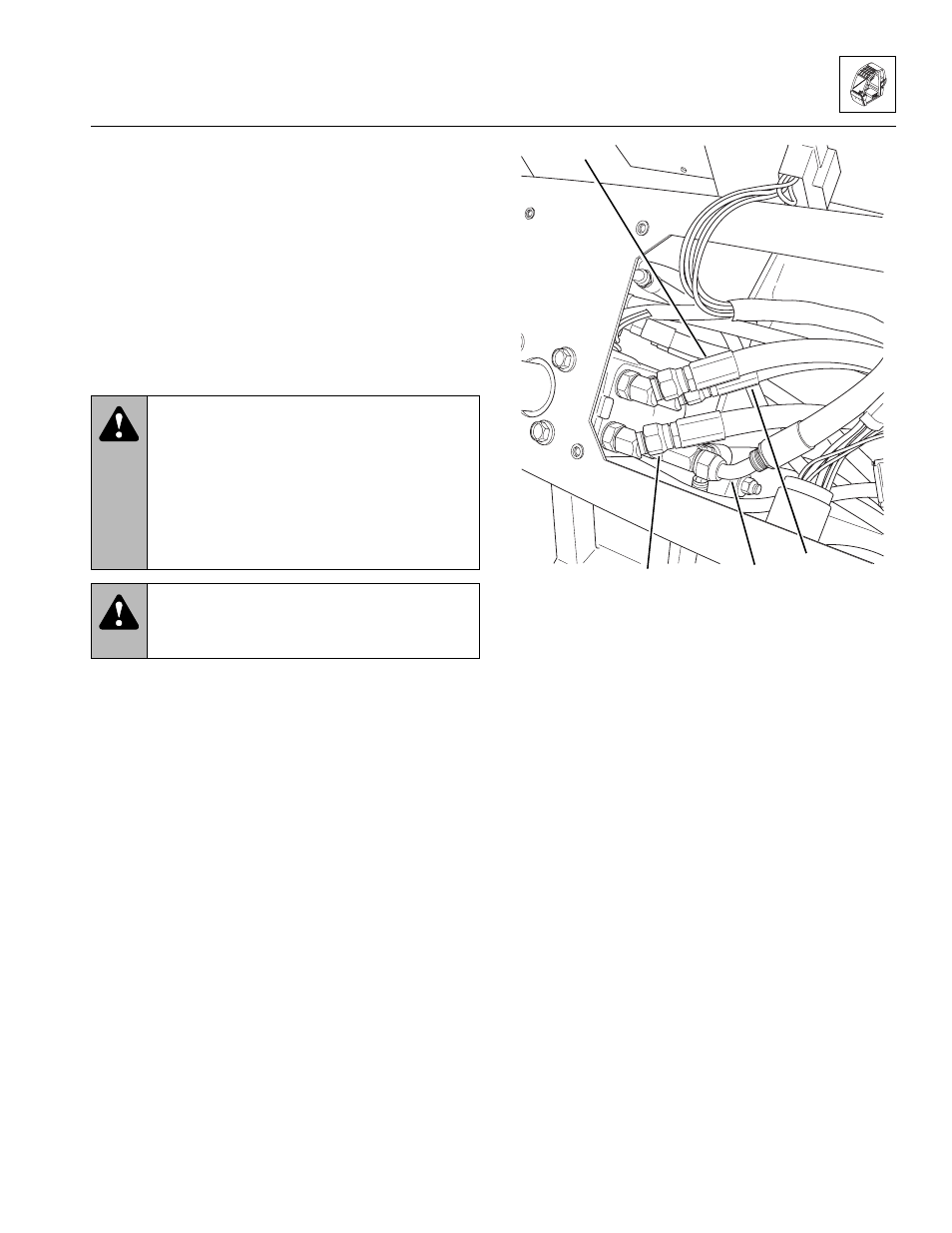

8. Working through the right dash panel opening, label,
disconnect and cap the four hoses (10 thru 13) from
the side of the steering valve. Cap the fittings on the
steering valve.
WARNING:
Hydraulic fluid leaking under
pressure can penetrate the skin, cause infection,
gangrene, and death or serious personal
injury. If injured, see a doctor immediately.
Relieve all pressure before disconnecting any
component, part, line or hose. Slowly loosen
parts and allow release of residual pressure
before removing any parts or component.
WARNING:
Wait for the hydraulic fluid
to cool before servicing any hydraulic component.
Hot hydraulic oil can cause severe burns.
MA8670
10
11 12
13
