Engine: Cummins QSB4.5T

7B.36

Model 8042, 10042, 10054 Legacy

Rev. 10/03

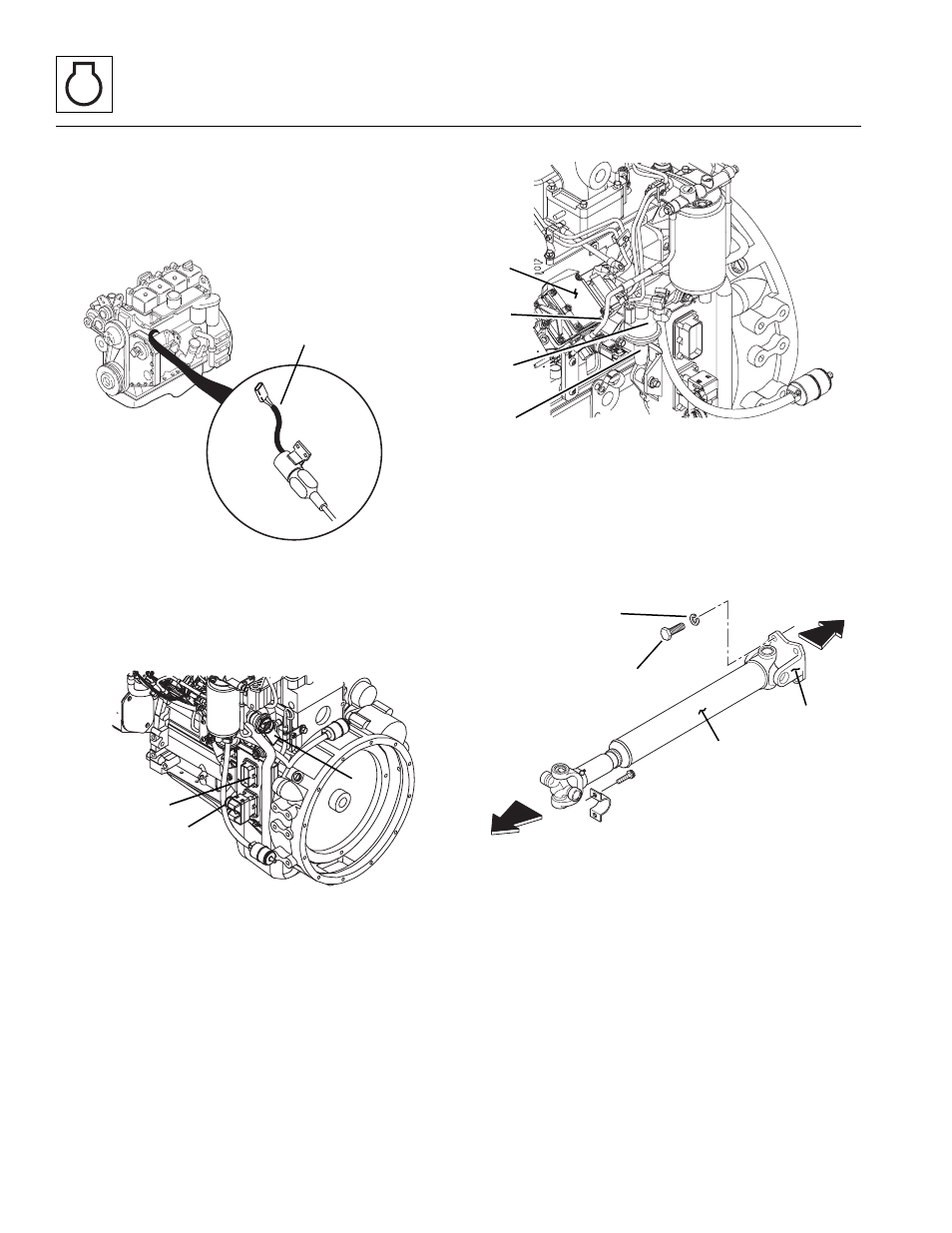

19. Disconnect the fuel shut-off solenoid harness

connector (1). For more information, refer to
Section 9.14.2, “Fuel Shut-off Solenoid
(SN 8042, 13198 - 18990, 10042, 13198 - 19030,
10054, 13198 - 19079).”

20. Disconnect the wire harness connectors (2 and 3)

from the Engine Control Module (ECM) (4) at the
engine.

21. The engine harness is routed and attached to the

engine using hold-down clamps and plastic wire ties
at various places on the engine. Before removing
engine, ensure that the harness has been
completely separated (disconnected) from the
engine. Move the harness clear of the engine, and
with the help of an observer, ensure that engine
clears the harness during removal.

22. Disconnect the fuel inlet line (5) at the fuel lift

pump (6). Install a plug in the end of fuel inlet line
and cap the fitting on the lift pump.

23. Disconnect the fuel return line (7) from the injector

pump (8). Install a plug in the end of fuel inlet line
and cap the fitting on the injector pump.

24. Remove the capscrews (10) and lockwashers (11)

securing the flange yoke (12) to the engine.

25. Remove the drive shaft assembly (9) from engine.

MS16902

1

MH4540

2

3

4

MH4660

5

6

7

8

MA8900

To Engine

To Transmission

9

10

11

12
