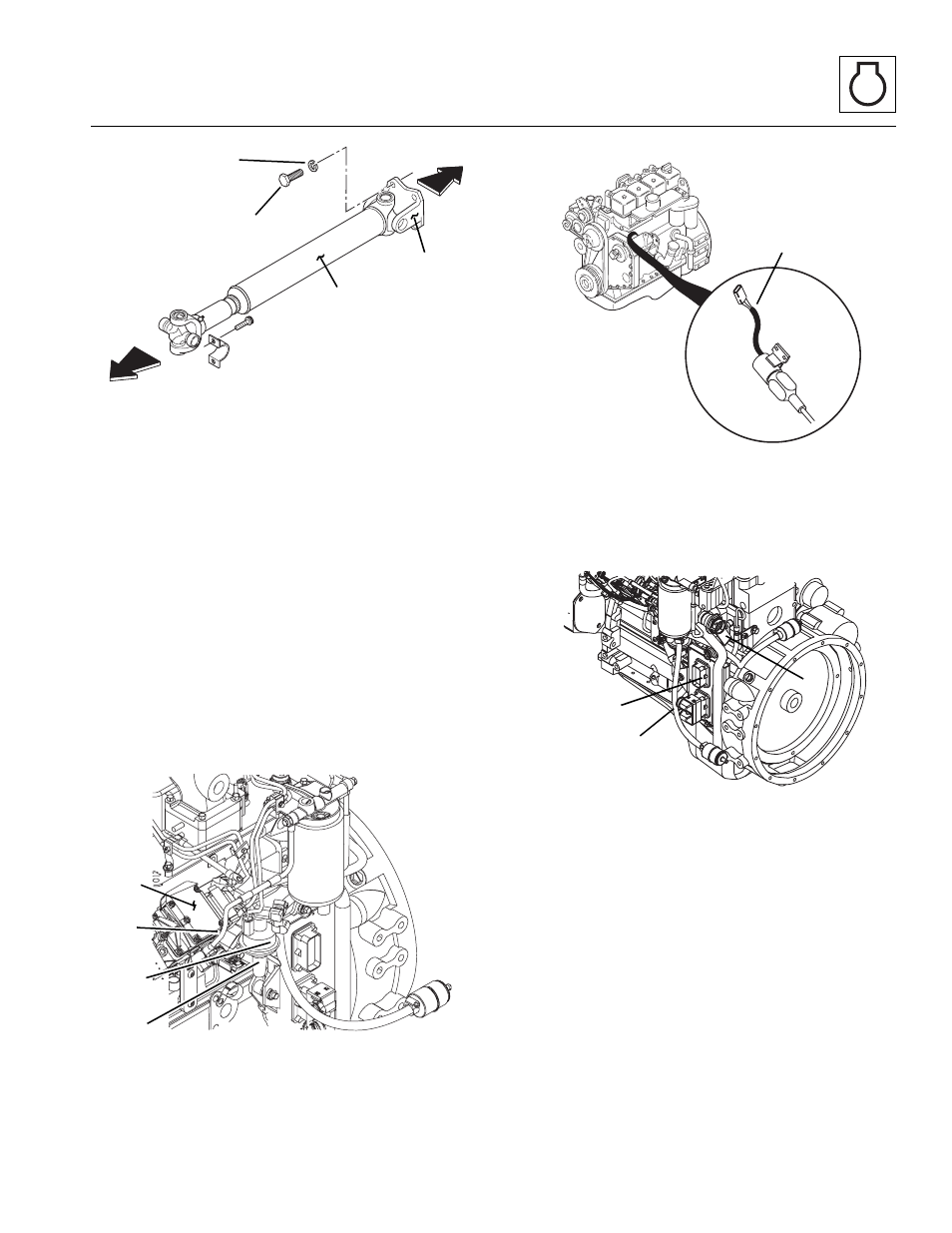

9. Raise the drive shaft assembly (24) into position.
The slip-yoke end of the drive shaft mounts toward
the engine. If reinstalling a drive shaft previously
removed, align the flange yokes according to the
alignment marks made during removal.
IMPORTANT: Yokes at both ends of the drive shaft must
be in the same plane to help prevent excessive vibration.
Note: If installing a new drive shaft unit, special attention
need not be applied to installation. New drive shaft units
are balanced at the factory.
10. At the drive shaft (24), install the capscrews (25) and
lockwashers (26), securing the flange yoke (27) to
the engine. Torque to 105 ±10 lb-ft (142 ±14 Nm).
11. Connect the fuel inlet line (28) to the fuel lift pump
(29).
12. Connect the fuel return line (30) at the injector pump
(31).
13. Connect the fuel shut-off solenoid harness
connector (32) to the fuel shut-off solenoid. Refer to
Section 9.14.2, “Fuel Shut-off Solenoid
(SN 8042, 13198 - 18990, 10042, 13198 - 19030,
10054, 13198 - 19079).”
14. Connect the wiring harness connectors (33 and 34)
to the Engine Control Module (ECM) (35) on the
engine.
