Hydraulic System
8.68 Model 8042, 10042, 10054 Legacy Rev. 10/03
8.10 HYDRAULIC RESERVOIR

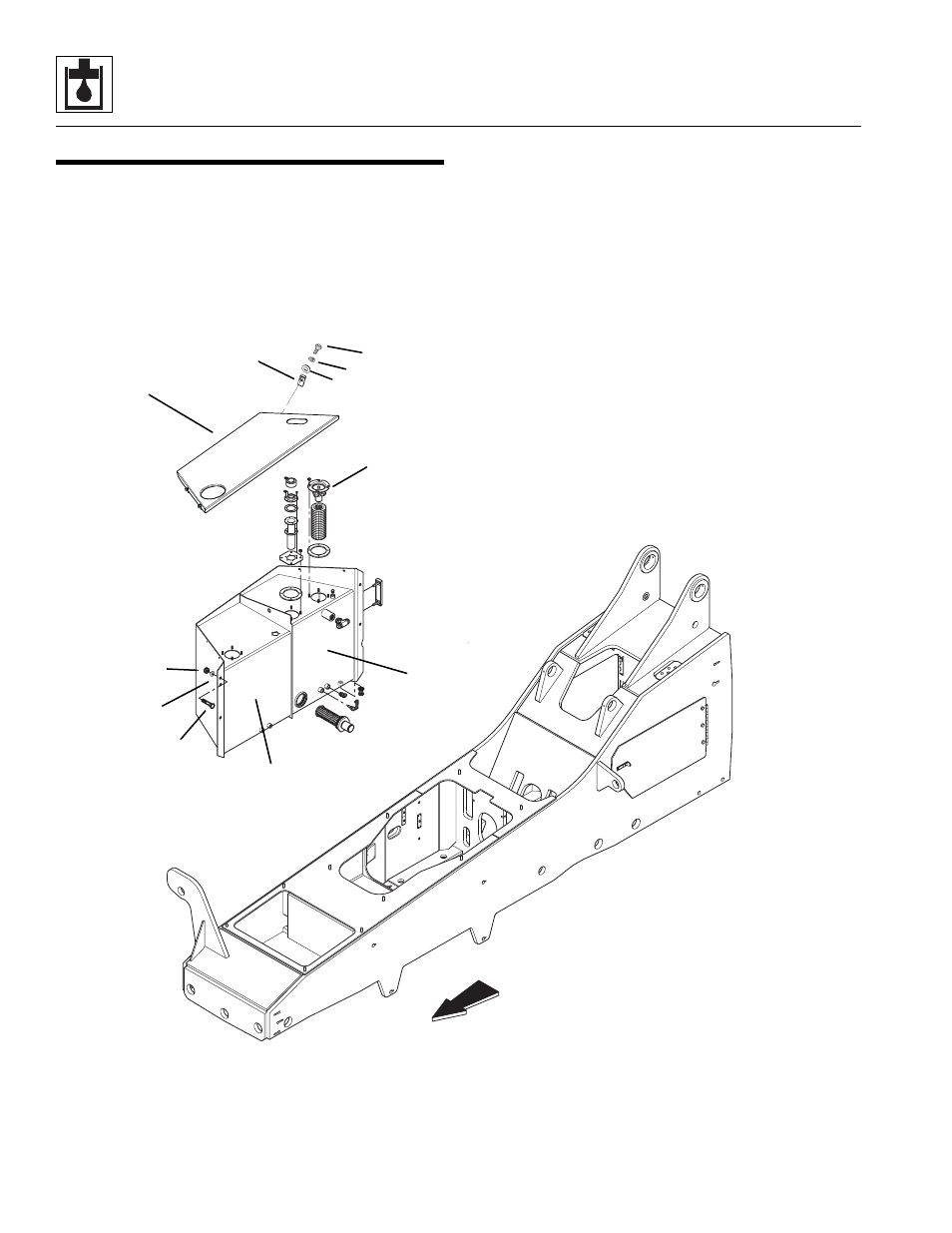

The hydraulic reservoir (1) and the fuel tank (2) are one
unit. They are located on the right side of the vehicle under
a cover (3). To remove the fuel tank/hydraulic reservoir cover,
remove the capscrews (4), lockwashers (5) and flat
washers (6) from the clips (7) on the cover. The fuel tank/
hydraulic reservoir is secured to the right side of the
vehicle frame with four carriage bolts (8), lockwashers (9)
and hex nuts (10).
MH3460
Front
~
~
1
2
3
4
5
6
7
8
9
10
11
