Boom
3.40 Model 8042, 10042, 10054 Legacy Rev. 03/04

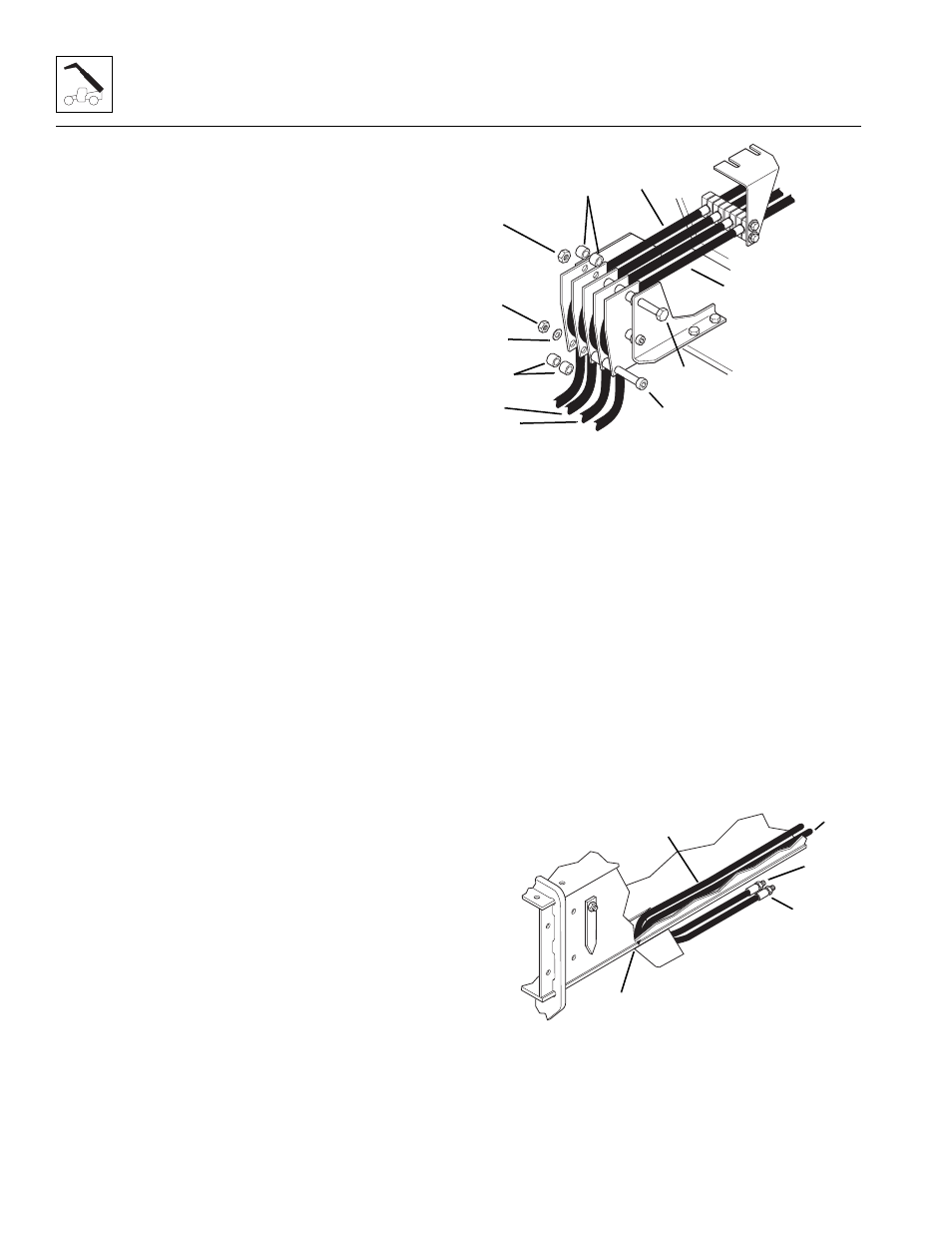

25. With auxiliary hydraulics: Assemble the hoses to
the hose reel at the back of the boom:
IMPORTANT: Keep the hoses in the same order as they
come from the hose clamps. DO NOT allow the hoses to
cross.
a. Remove the elastic locknut (1) from the upper
retaining capscrew (2). While pulling the
capscrew out, catch the spacers (3) from
between the plates as the capscrew is removed.
Pull the capscrew out far enough to place the
hoses around the hose reel.
Place the left side auxiliary hydraulic hose (4) into
the left position on the hose reel. Place the left side
Attachment Tilt hose (5) into the second position
from the left on the hose reel.
Place the right side Attachment Tilt hose (6) into
the second position from the right on the hose
reel.
Place the right side auxiliary hydraulic hose (7)
into the right position on the hose reel.
Note: ALWAYS replace elastic locknuts with new elastic
locknuts to help ensure proper fastening.
b. Insert the retaining capscrew (2) back through
the plates of the hose reel, inserting the
spacers (3) back in position between the plates
as the capscrew is inserted. Secure the retaining
capscrew in place with a new elastic locknut (1).
Tighten the elastic locknut securely.
c. Remove the elastic locknut (8) and flat
washer (9) from the lower retaining shoulder
bolt (10). While pulling the shoulder bolt out,
catch the spacers (11) from between the plates
as the shoulder bolt is removed. Place the
Attachment Tilt hoses and the auxiliary hydraulic
hoses around the hose reel.
d. Insert the shoulder bolt (10) through the plates of
the hose reel, inserting the spacers (11) back in
position between the plates as the shoulder bolt
is inserted. Place the flat washer (9) onto the
shoulder bolt and secure in place with a new
elastic locknut (8). Tighten securely.
26. Without auxiliary hydraulics: Tie the strings
(positioned inside the outer boom) to the male end of
each of the Attachment Tilt hoses, coming off the
bottom of the hose reel assembly.
IMPORTANT: Keep the hoses in the same order as they
come off the hose reel. DO NOT allow the hoses to
cross.
27. Working from the front of the boom, pull each hose
through the boom assembly:
a. Pull the right side Attachment Tilt hose (12) through
the boom assembly. Pull the hose out of the
opening (13) at the bottom of the outer boom.
b. Pull the left side Attachment Tilt hose (14) through
the boom. Keep the left Attachment Tilt hose to
the left side of the right side Attachment Tilt
hose. Pull the hose out of the opening (13) at the
bottom of the outer boom.
MH1690
1
2
3
4
5
6
7
8
9
10
11
MH1700
12
14
12
13
14
