Cab and Covers
4.22
Model 8042, 10042, 10054 Legacy
Rev. 10/03
Note: The button-head capscrew (1) at the lower rear
position on each side of the heater will be secured with
an insert nut (2).

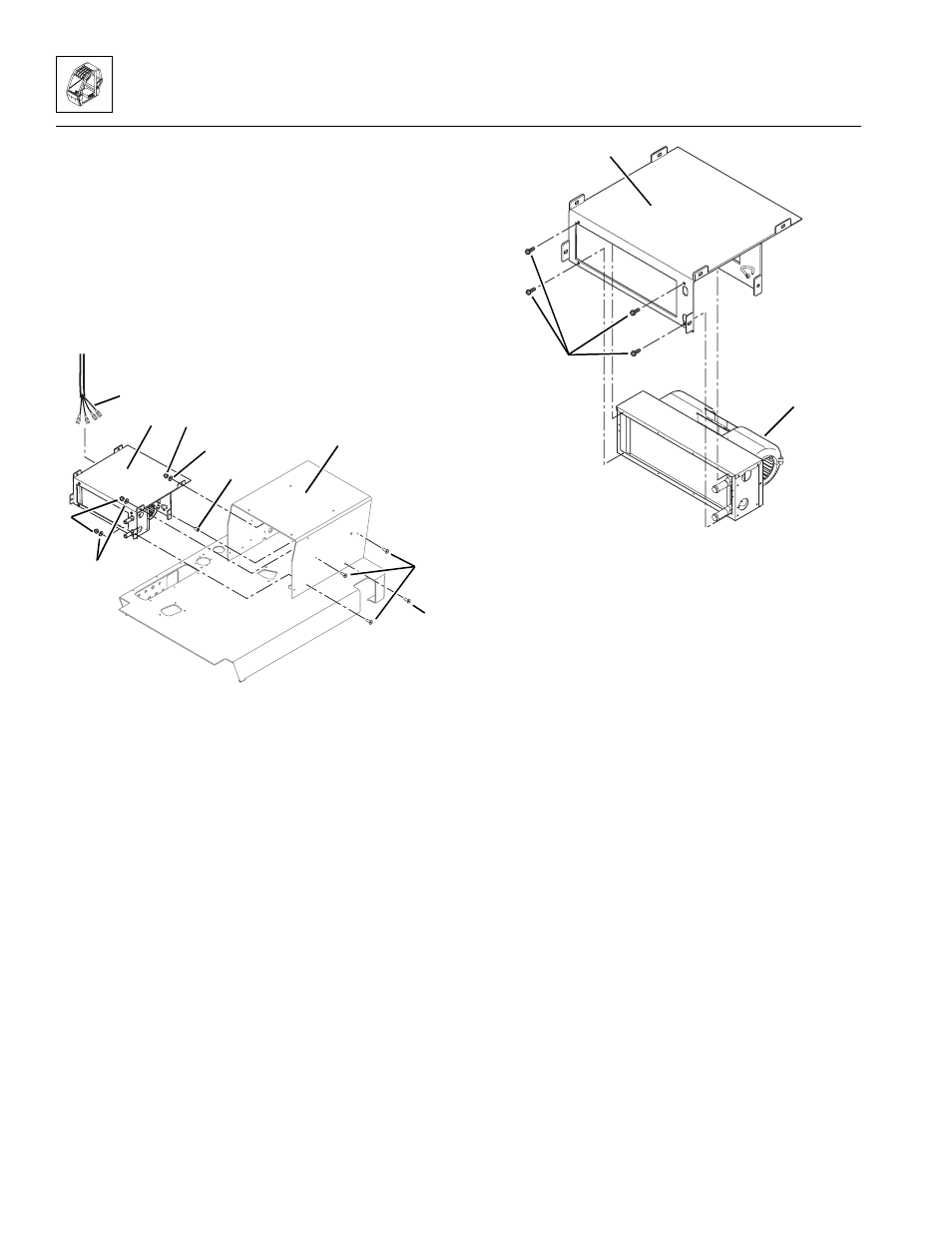

11. Remove eight button-head capscrews (1 and 3), six
nuts (4) and six lockwashers (5).
12. Carefully pull the heater assembly (6) forward. Label
and disconnect the wiring harness connections (7)
at the blower.
13. Remove the heater assembly (6).
14. If the heater assembly is to be replaced: Remove
four hex-slotted capscrews (9), and remove the
mounting bracket (10) from the heater assembly
(11).
b. Heater Assembly Installation
1. Connect the wiring harness connections (7) to the
blower.
Note: The button-head capscrew (1) at the lower rear
position on each side of the heater will be secured with
an insert nut (2).
2. Slide the heater/mounting bracket assembly (6) into
the seat riser (8), and secure with eight button-head
capscrews (1 and 3), six lockwashers (5) and six
nuts (4).
MA8730
~
~
1
2
3
4
5
6
7
8
MA8710
~
9
10
11
