SkyTrak 8042 Service Manual - Manual (Page 142)

3.81 Model 8042, 10042, 10054 Legacy Rev. 03/04
Boom

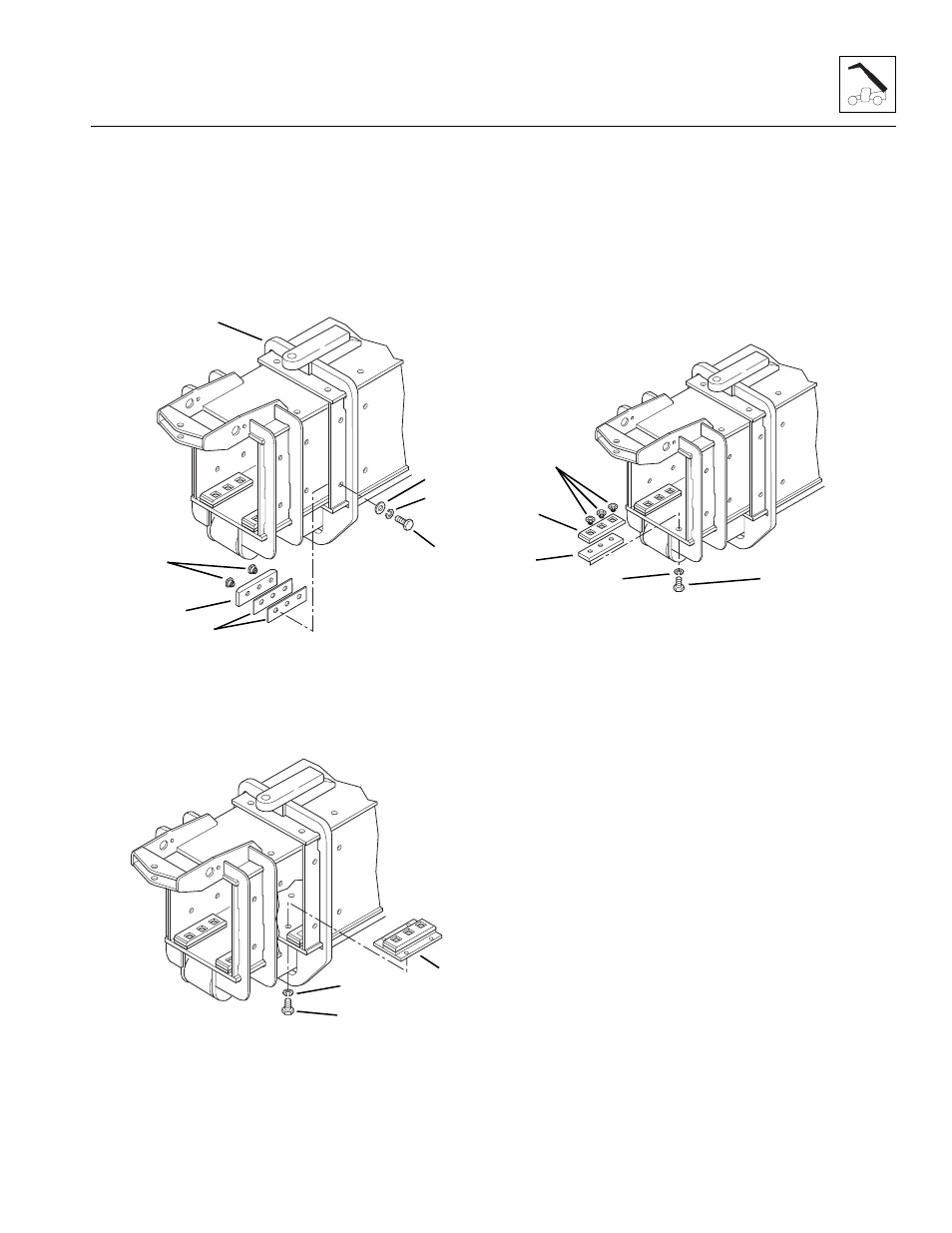

2. At the front of the outer boom (12), remove the
capscrews (13), lockwashers (14) and flat washers
(15) holding the side wear pads (16) and shims (17)
to the inside of the outer boom. Label the wear pads
as “Primary Intermediate Boom Left Side Upper/
Lower” and “Primary Intermediate Boom Right Side
Upper/Lower.” Save the capscrews, lockwashers, flat
washers, shims and wear pad inserts (18).
3. Remove the capscrews (19) and lockwashers (20)
holding the center wear pad spacer mount (21) to
the front of the outer boom. Save the capscrews and
lockwashers.
4. If replacing the primary intermediate boom with a
new boom section, remove the lower wear pads at
the front of the boom:
a. Remove the capscrews (22) and
lockwashers (23) holding the lower wear
pads (24) and spacers (25) to the inside of the
boom. Label the wear pads and spacers as
“Outer Boom Left” or “Outer Boom Right” sides.
Save the capscrews, lockwashers, spacers and
wear pad inserts (26).
MH2090
12
13
14
15
16
17
18
MH2100
19
20
21
MH2110
22
23
24
25
26
