8.7 Model 8042, 10042, 10054 Legacy Rev. 10/03
Hydraulic System
8.6 HYDRAULIC PRESSURE DIAGNOSIS
JLG Parts Department has two kits available to use for
hydraulic system maintenance and troubleshooting: the
Sky Trak Pressure Test Kit and the Sky Trak Flowmeter
Kit. The kits are contained in a durable polyethylene
carrying case for demanding field service conditions.
Pressure Test Kit

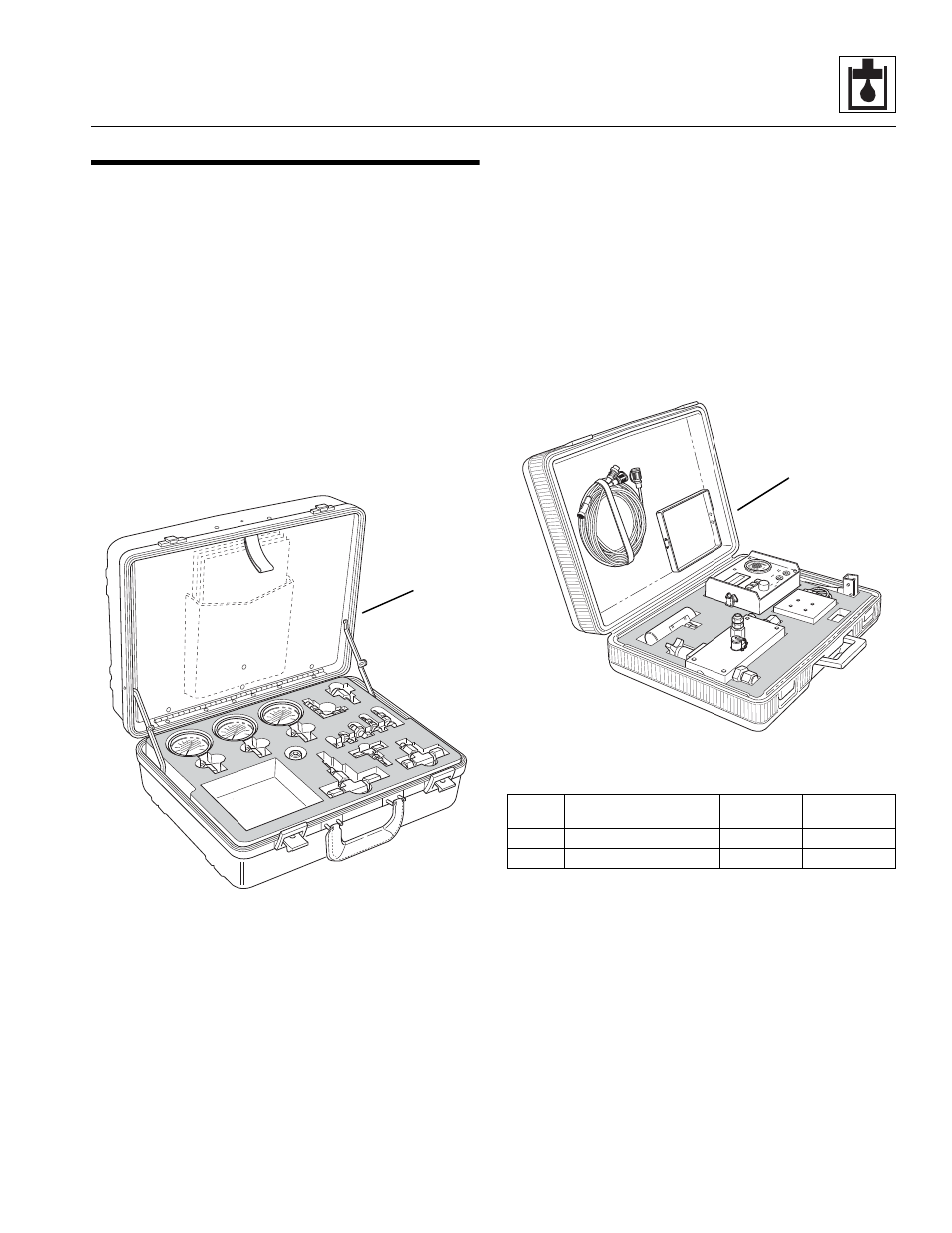

The hydraulic pressure test kit (1) is used to pressure test
the various hydraulic components in the hydraulic
system. The kit includes:
• Gauges for testing high and low pressure circuits
• Fittings, couplers and hoses
• Laminates of test diagrams and test procedures
• 13" x 18" x 7" durable carrying case
Flowmeter Kit
The flowmeter test kit (2) is used to pinpoint hydraulic
system faults. It includes a flowmeter with load valve,
magnetic base, photo tachometer head and flex arm. The
kit features:
• Bi-directional for unrestricted connection and
simplified testing
• Internal by-pass to protect system and tester
from over-pressure
• Measures up to 60 GPM and 6000 psi
• 16" x 22" x 7" durable carrying case
Contact JLG Parts Department at 717-485-6472 for
ordering information.
PH14102
1
Part
Number
Description Approximate
Weight
Price and
Availability
7133413 Hydraulic Pressure Test Kit 16 lbs. Consult Factory
1321107 Hydraulic Flowmeter Kit 28 lbs. Consult Factory
PH14202
2
