SkyTrak 8042 Service Manual - Manual (Page 264)

4.25 Model 8042, 10042, 10054 Legacy Rev. 10/03
Cab and Covers
4.4.6 Door and Latches
MA8760

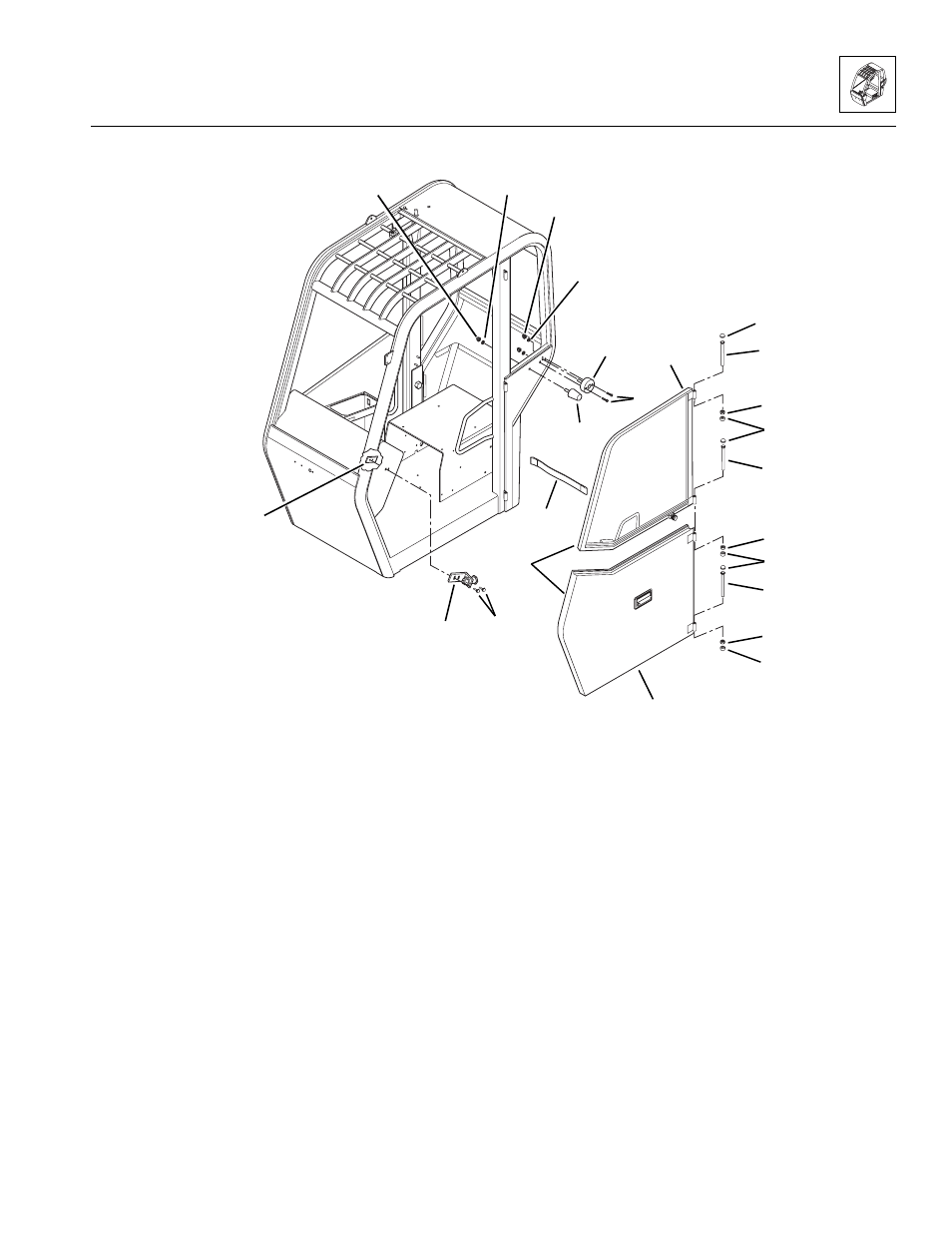

29. Door Assembly
30. Strap
31. Cap (6)
32. Hex Head Capscrew (3)
33. Hex Nut (3) 34. Upper Door Section
35. Lower Door section
36. Acorn Nut (2)
37. Lockwasher (2)
38. Screw (2) 39. Female Door Retainer
40. Acorn Nut
41. Lockwasher
42. Door Bumper
43. Lockscrew (2) 44. Striker Assembly
45. Nut Plate
29
30
31
32
33
34
35
36
37
38
39
40 41
42
43 44
45
