Cab and Covers
4.32 Model 8042, 10042, 10054 Legacy Rev. 10/03
13. Route the control cables through the opening at the
bottom of the cab.

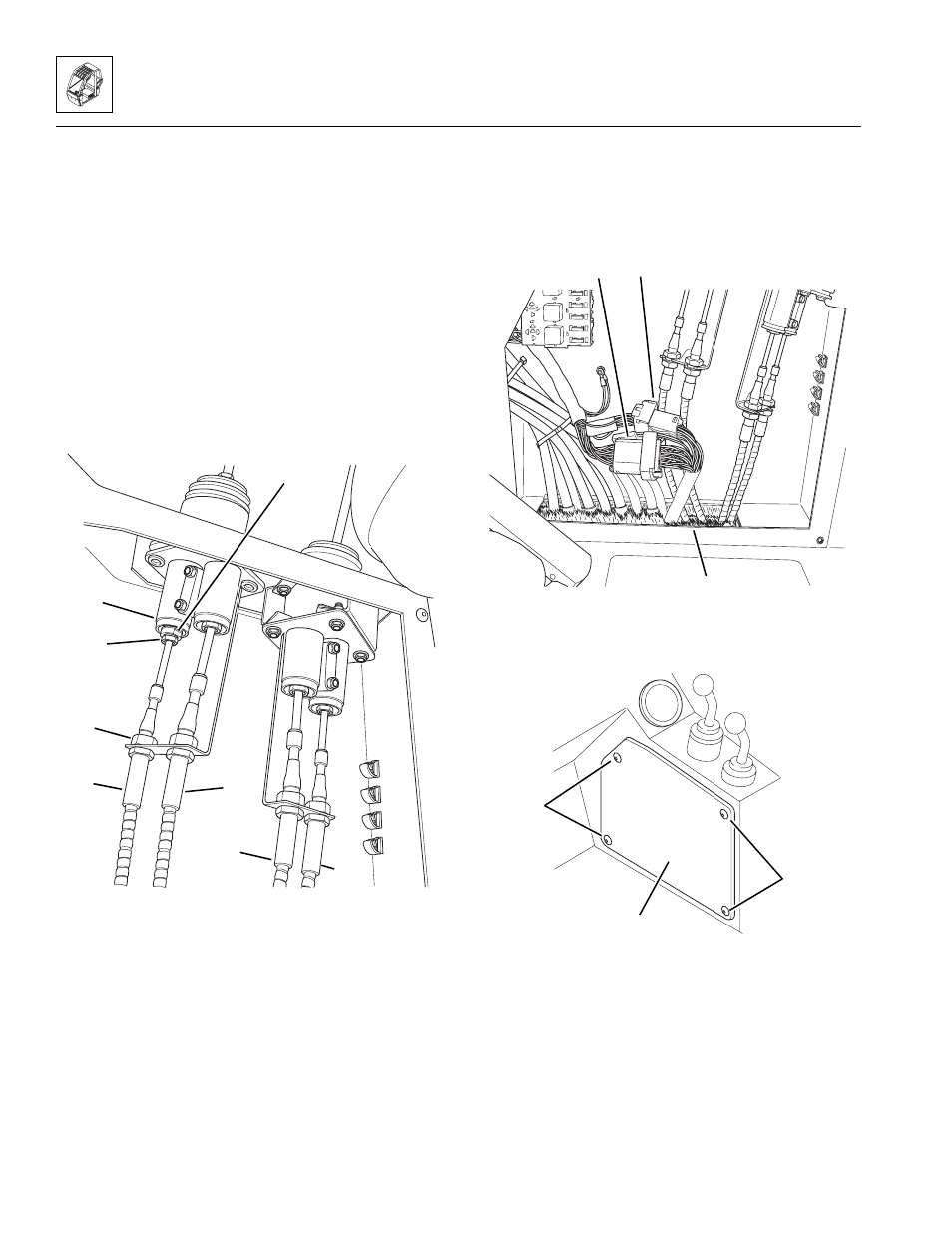

14. Connect control cables at the joystick:
a. Install the end of the boom extend/retract cable (1)
into the slider head (4) as recorded during
removal. Tighten the upper jam nut (2).
b. Loosely install the cable nut (3) into the slider
head (4).
c. Engage the control lever to expose the flats (5)
on the slider head. Place a wrench on the flats to
hold the slider head, and tighten the cable nut (3)
to a maximum of 55 lb-ft (75 Nm).
d. Repeat Steps a thru c to connect the boom lift/
lower (6), attachment tilt (7) and frame sway (8)
control cables.
15. Route the wiring harness connectors through the
opening (9) at the bottom of the cab and up into the
side console.
16. Connect the two cab-to-wiring harness connectors
(10 and 11).
17. Install the console panel (12), and secure using four
button-head capscrews (13).
MA8520
1
2
3
4
5
6
7
8
MA8470 9
10 11
OH2430
~
12
13
13
