9.193 Model 8042, 10042, 10054 Legacy Rev. 10/03
Electrical System

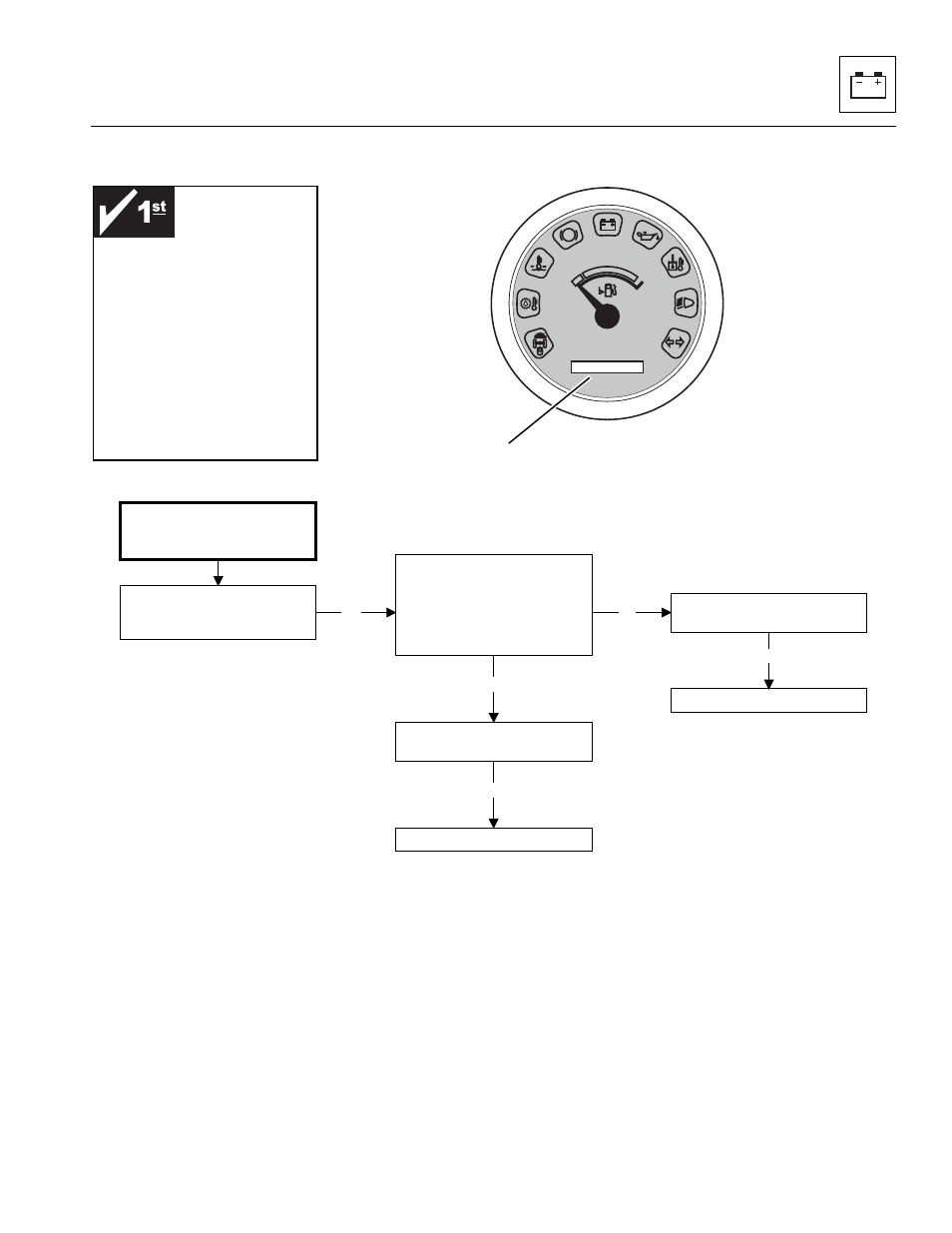

9.8.37 Hourmeter Indicator Troubleshooting
0000 00
P
Check wire 38 (ORG) for
battery voltage to instrument
panel connector.
Hourmeter indicator does
not register
operating hours.
Check for proper ground at
alternator. Refer to pages
9.38, 9.39, 9.40, 9.41, 9.50,
9.51, 9.62, 9.63, 9.64,
9.65,9.74, 9.75, 9.84, 9.85,
9.86, 9.87, 9.102 or 9.103.
Repair ground wires as
necessary.
Check alternator terminal
“D+” for battery voltage.
Hourmeter
Indicator
MA7640
Replace alternator.
Replace instrument cluster.
If OK
Not
OK
Not OK
If
OK
Before troubleshooting any
electrical circuit, ALWAYS
begin by checking the
following:
1. Fuses.
2. Battery for proper charge.
3. All connections relating to
circuit are clean and tight.
4. Check instrument cluster
bulb for proper function.
Not OK
