Electrical System
9.212 Model 8042, 10042, 10054 Legacy Rev. 10/03

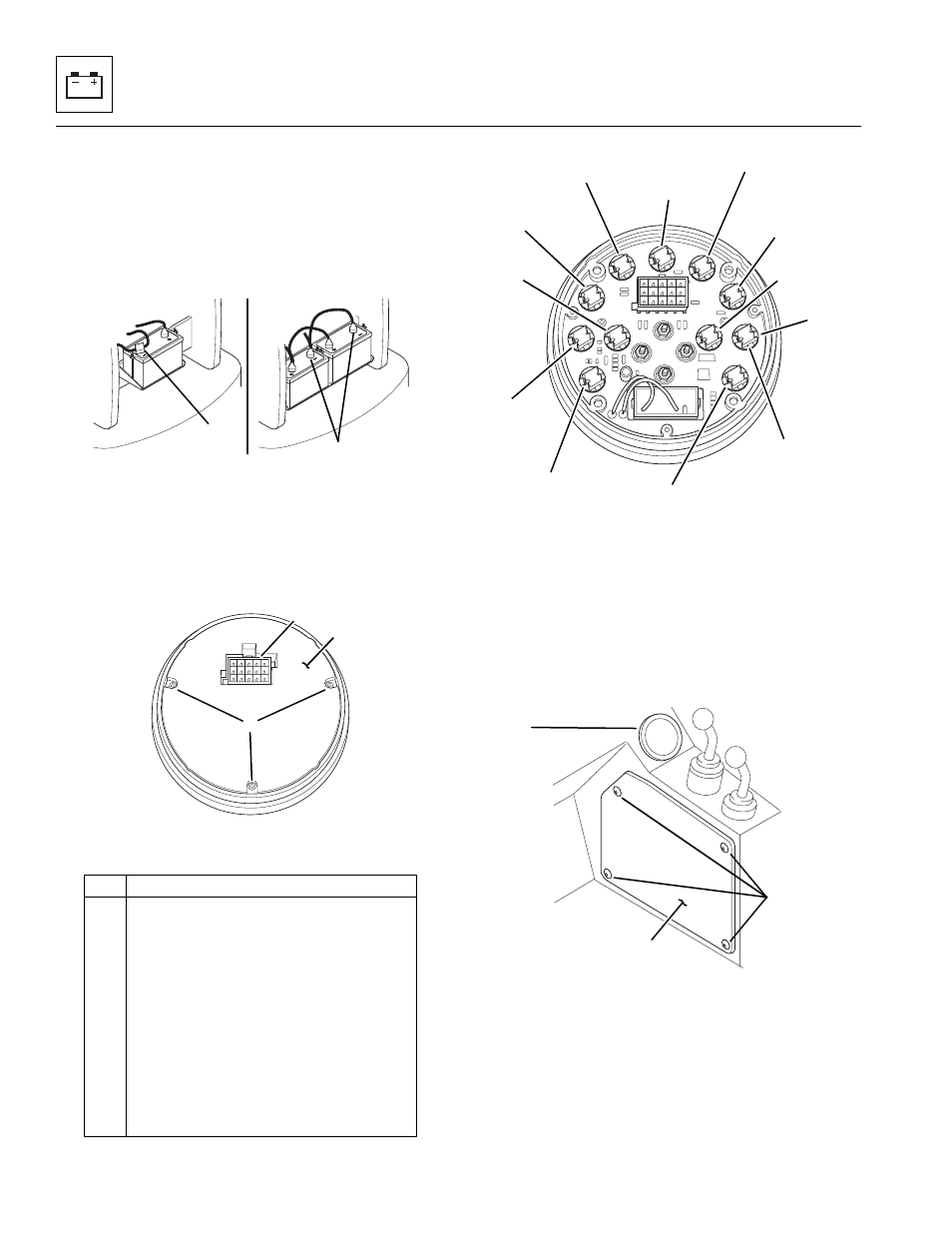

e. Operator’s Instrument Cluster Bulb Removal
1. If the vehicle has one battery, disconnect the
negative (-) battery cable at the negative (-) battery
terminal (1).
If the vehicle has dual batteries, disconnect both
negative battery cables from both negative (-) battery
terminals (2).
2. Unscrew the plastic ring retainer from the back of the
instrument cluster. Disconnect the harness plug
connector from the back of the instrument
cluster (3). Remove three screws, (4) securing the
instrument cluster rear access plate (5). Remove the
cover plate.
3. Rotate the suspect bulb assembly (6) 1/4- turn
counterclockwise and remove bulb.
f. Operator’s Instrument Cluster Installation
1. Install the instrument cluster rear access plate (5)
using three screws (4).
2. Connect the harness plug terminal into the
instrument cluster terminal (3).
3. Place the instrument cluster (18) into the cut-out,
and install the plastic retaining ring and secure.
4. Install the right side access panel (19) using four
screws (20).
5. If the vehicle has one battery, connect the
negative (-) battery cable to the negative (-) battery
terminal (1).
If the vehicle has dual batteries, connect both
negative battery cables to both negative (-) battery
terminals (2).
Item Description
7 Transmission Temperature
8 Stabil-TRAK™
9 Turn Signal (Optional)
10 Main Beam (Optional)
11 Fuel Level
12 Hydraulic Oil Temperature
13 Engine Oil
14 Alternator
15 Park Brake
16 Engine Coolant Temperature
17 Fuel Level
MH4890
1
2
MA7930
3
4
5
MA7940
7
8
9
10
11
12
13
14
15
16
17
6
OH2430
18
19
20
