3.17

Model 8042, 10042, 10054 Legacy

Rev. 03/04

Boom

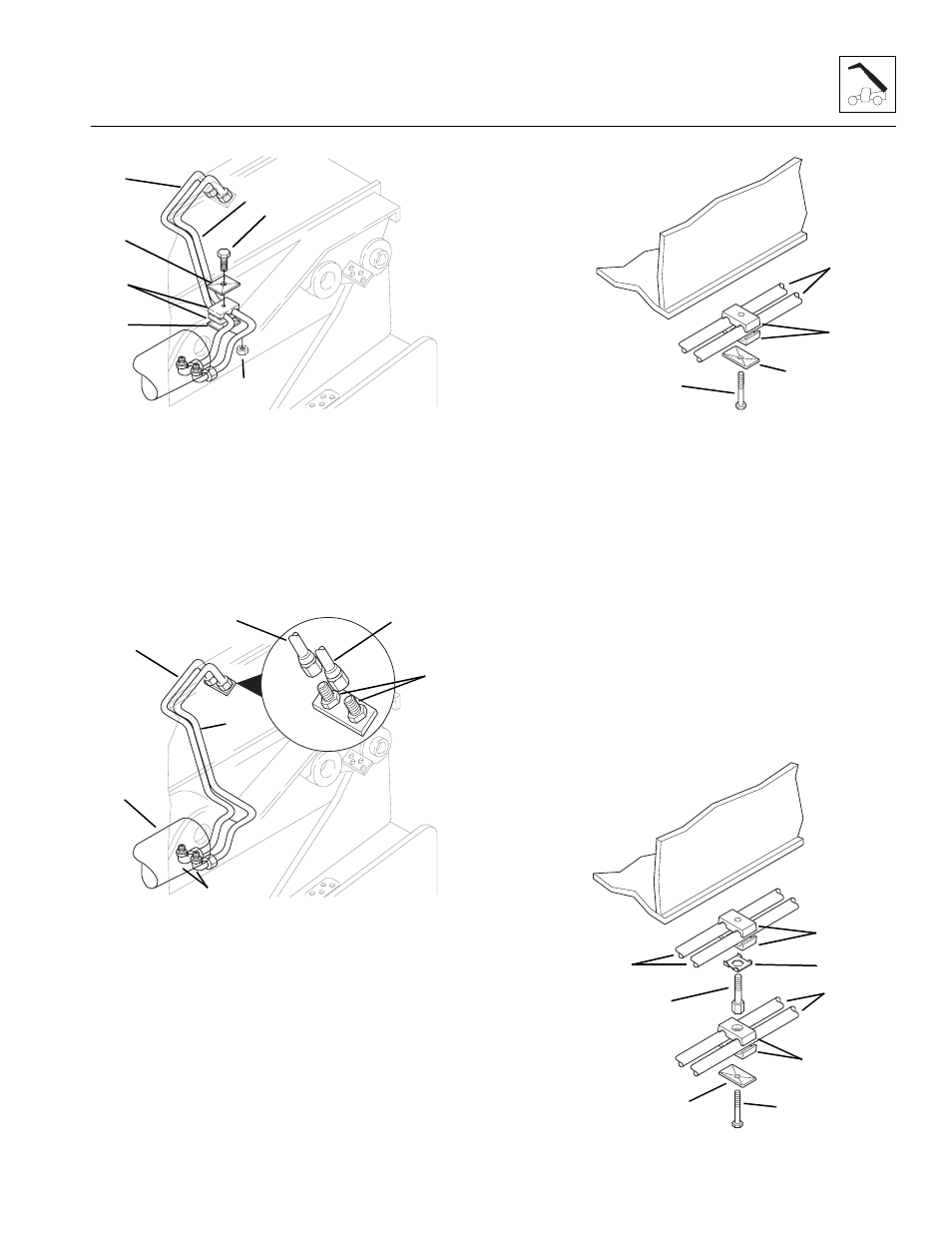

13. At the rear right side of the outer boom, label and

remove the extend tube (23) and retract tube (24)
from the bulkhead fittings (25). Plug the tube ends
and cap the bulkhead fittings.

14. Remove the extend tube (23) and retract tube (24)

from the 90° elbow fittings (26) on the rear of the
Extend/Retract cylinder (27). Plug the tube ends and
cap the 90° elbows.

15. Without auxiliary hydraulics: Label the

Attachment Tilt tube assemblies located under the
boom. Remove the capscrews (28) holding the tube
clamps (29), clamp covers (30) and Attachment Tilt
tubes (31) to the underside of the outer boom. Save the
capscrews, clamps and clamp covers. Remove the
tubes from the boom.

16. Inspect the tubes (31) for kinks or crushed areas. If

any kinks or crushed areas exist, replace the
damaged tube or tubes.

17. Without auxiliary hydraulics: Label the auxiliary

tube assemblies (32) located under the Attachment
Tilt tubes (33). Remove the capscrews (34) holding
the tube clamps (35) and clamp covers (36) to the
Attachment Tilt tube clamp stacking bolt (37) under
the outer boom. Save the capscrews, clamps and
clamp covers. Remove the tubes from the boom.

18. Label the Attachment Tilt tube assemblies (33) located

under the boom. Remove the stacking bolts (37)
holding the tube clamps (38), locking plates (39) and
Attachment Tilt tubes (33) to the underside of the
outer boom. Save the stacking bolts, clamps and
locking plates. Remove the tubes from the boom.

19. Inspect all tubes (32 and 33) for kinks or crushed

areas. If any kinks or crushed areas exist, replace
the damaged tube or tubes.

MH1150

20

17

18

19

20

21

22

MH1160

23

24

23

24

25

26

27

MH1180

28

29

30

31

MH1190

32

33

34

35

36

37

38

39
