Electrical System
9.218
Model 8042, 10042, 10054 Legacy
Rev. 10/03
9.12.6
Windshield/Skylight Washer Reservoir
and Pump
The windshield washer motor and reservoir is a unit and
cannot be serviced separately.
a. Removal

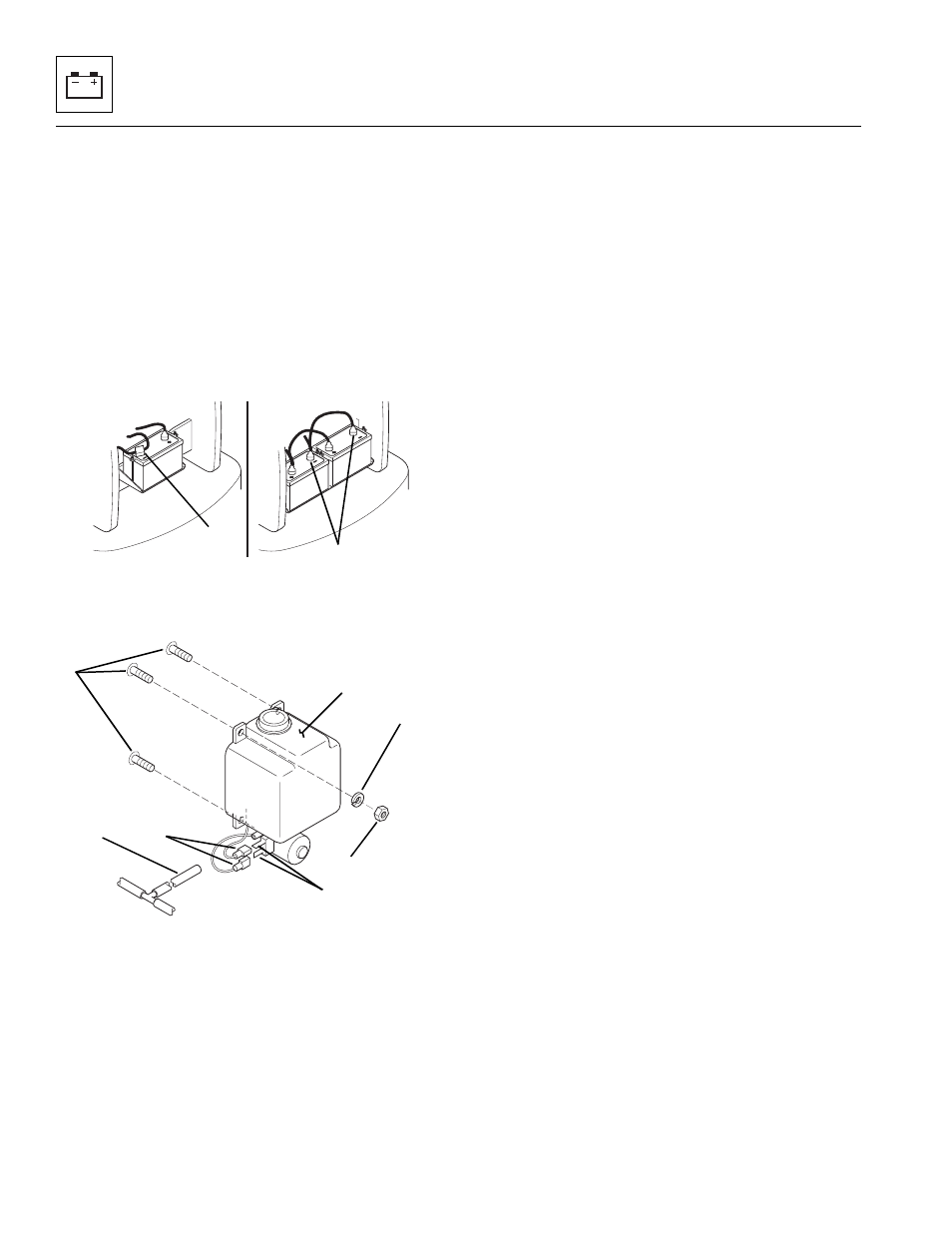

1. If the vehicle has one battery, disconnect the
negative (-) battery cable at the negative (-) battery
terminal (1).
If the vehicle has dual batteries, disconnect both
negative battery cables from both negative (-) battery
terminals (2).
2. Remove the nuts (3) and the lockwashers (4) from
the washer mounting studs (5).
3. Pull the washer reservoir (6) out and away from the
mounting studs.
4. Rotate the washer reservoir, label and remove the
cab harness connectors (7) from the washer
reservoir connectors (8).
5. Remove the windshield washer hose (9) from the
reservoir.
b. Disassembly
DO NOT disassemble the pump. The pump is not
serviceable. Replace pump if found to be defective.
c. Cleaning and Drying
Without submerging the pump, clean the pump and
reservoir with an approved solvent and dry with a clean,
lint-free cloth.
d. Inspection and Replacement
Inspect the electrical terminals for continuity. For
additional information, refer to Section 9.7.46, “Front
Windshield & Skylight Washer Circuit and
Troubleshooting (Option).”
e. Installation and Testing
1. Connect the windshield washer hose (9) to the
reservoir.
2. Connect the cab wiring harness connectors (7) to
the reservoir connectors (8).
3. Install the reservoir tank (6) onto the welded
studs (5).
4. Install the lockwashers (4) and nuts (3) and secure.
5. Fill the washer fluid reservoir with washer fluid.
6. If the vehicle has one battery, connect the
negative (-) battery cable to the negative (-) battery
terminal (1).
If the vehicle has dual batteries, connect both
negative battery cables to both negative (-) battery
terminals (2).
7. Turn the ignition key switch to the RUN position and
press the washer switch. Verify that fluid is sprayed
on both the windshield and roof glass.
MH4890
1
2
MA8350
3
4
5
6
7
8
9
