Boom

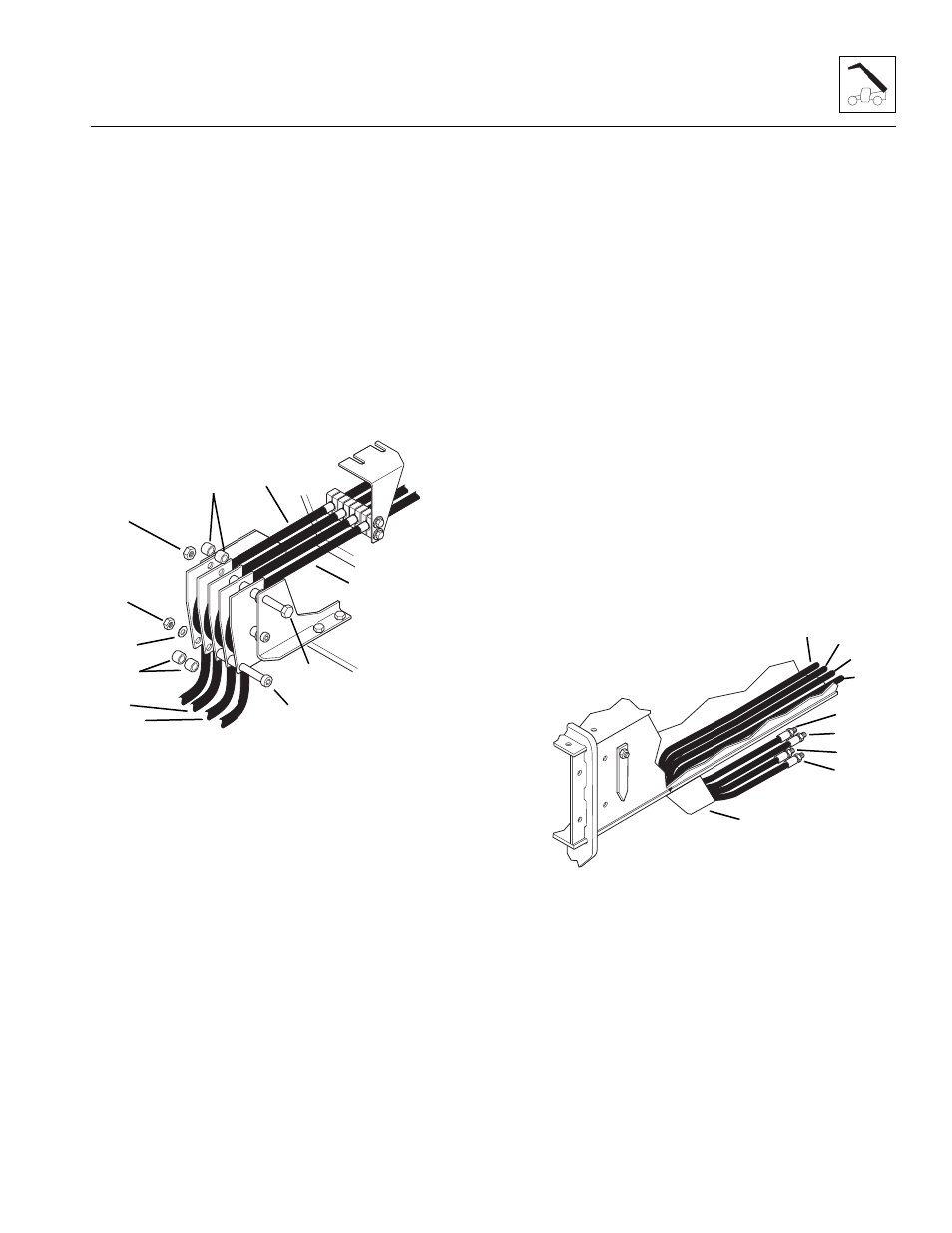

27. Remove the elastic locknut (19) and flat washer (20)
from the lower retaining shoulder bolt (21). While
pulling the shoulder bolt out, catch the spacers (22)
from between the plates as the shoulder bolt is
removed. Place the Attachment Tilt hoses and the
auxiliary hydraulic hoses around the hose reel.
Note: ALWAYS replace elastic locknuts with new elastic
locknuts to help ensure proper fastening.
28. Insert the shoulder bolt (21) through the plates of the
hose reel, inserting the spacers (22) between the
plates as the shoulder bolt is inserted. Place the flat
washer (20) onto the shoulder bolt and secure in
place with a new elastic locknut (19). Tighten
securely.
29. Tie the strings (positioned inside the outer boom
during the outer boom installation) to the male end of
each of the Attachment Tilt and auxiliary hydraulic
hoses, coming off the bottom hose reel assembly.
IMPORTANT: Keep the hoses in the same order as they
come off the hose reel. DO NOT allow the hoses to
cross.
30. Working from the front of the boom, pull each hose
through the boom assembly:
a. Pull the right side auxiliary hydraulic hose (23)
through the boom assembly.
b. Pull the right side Attachment Tilt hose (24)
through the boom assembly. Keep the right side
Attachment Tilt hose to the left of the right side
auxiliary hydraulic hose.
c. Pull the left side Attachment Tilt hose (25)
through the boom assembly, using the hoses
already down the boom as a guide. Keep the left
side Attachment Tilt hose to the left of the hoses
already installed.
d. Pull the left side auxiliary hydraulic hose (26)
through the boom assembly, using the hoses
already down the boom as a guide. Keep the left
side auxiliary hydraulic hose to the left of the
hoses already installed.
e. Pull the hoses out the opening (27) at the bottom
of the outer boom.
31. Remove the strings from the hoses.
