Electrical System
9.186 Model 8042, 10042, 10054 Legacy Rev. 10/03

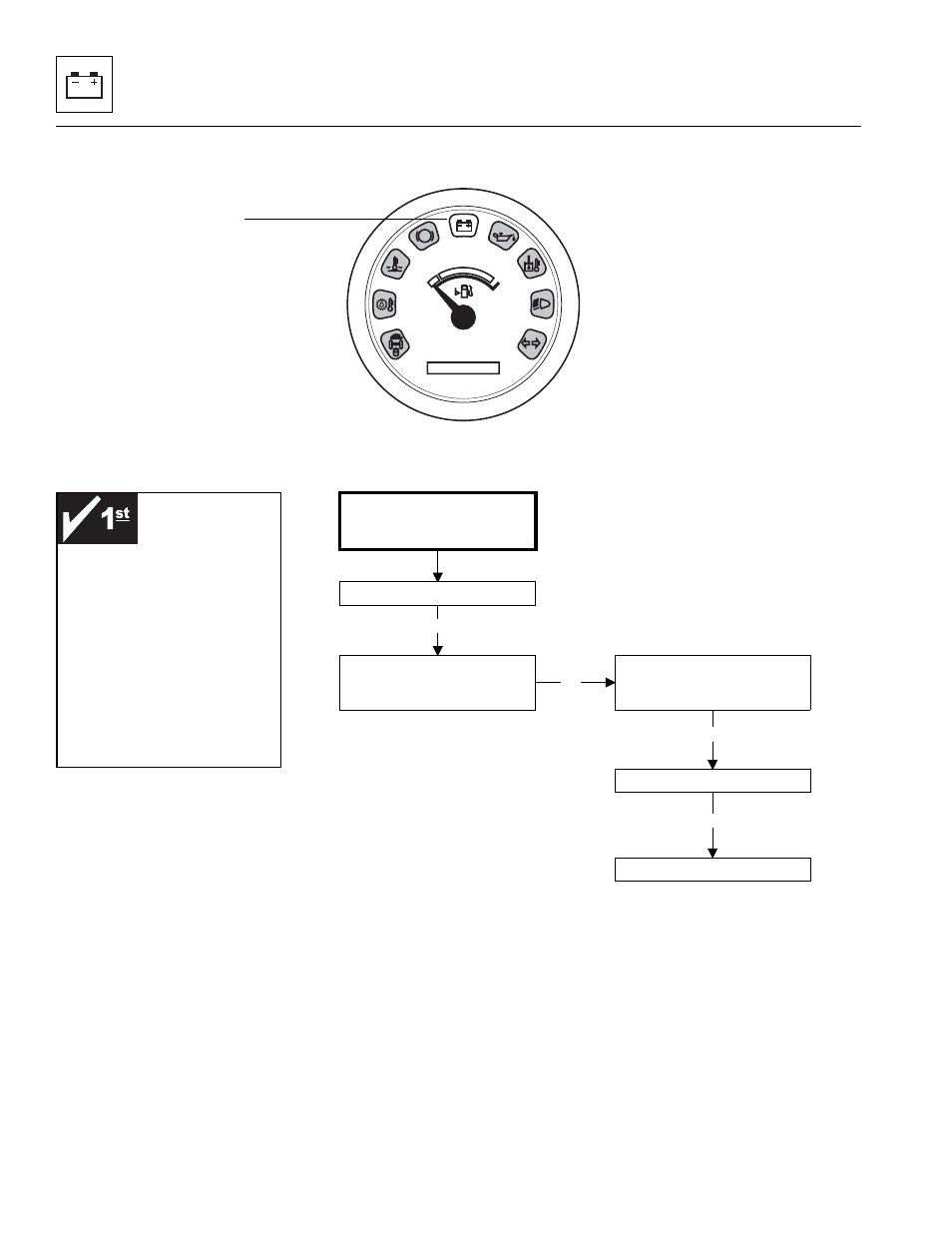

9.8.30 Engine Alternator Charging Warning Indicator Troubleshooting
0000 00
P
Engine Alternator
Charging Warning
Indicator
MA7560
Engine alternator charging
warning indicator stays ON
while operating.
Check terminal “D+”
on alternator for
13.8 to 14.2 volts.
Replace instrument cluster.
Light Still On
Check alternator belt tension.
Check for proper ground at
alternator. Repair as
necessary.
Replace alternator.
Before troubleshooting any
electrical circuit, ALWAYS
begin by checking the
following:
1. Fuses.
2. Battery for proper charge.
3. All connections relating to
circuit are clean and tight.
4. Check instrument cluster
bulb for proper function.
If OK
Not
OK
If OK
