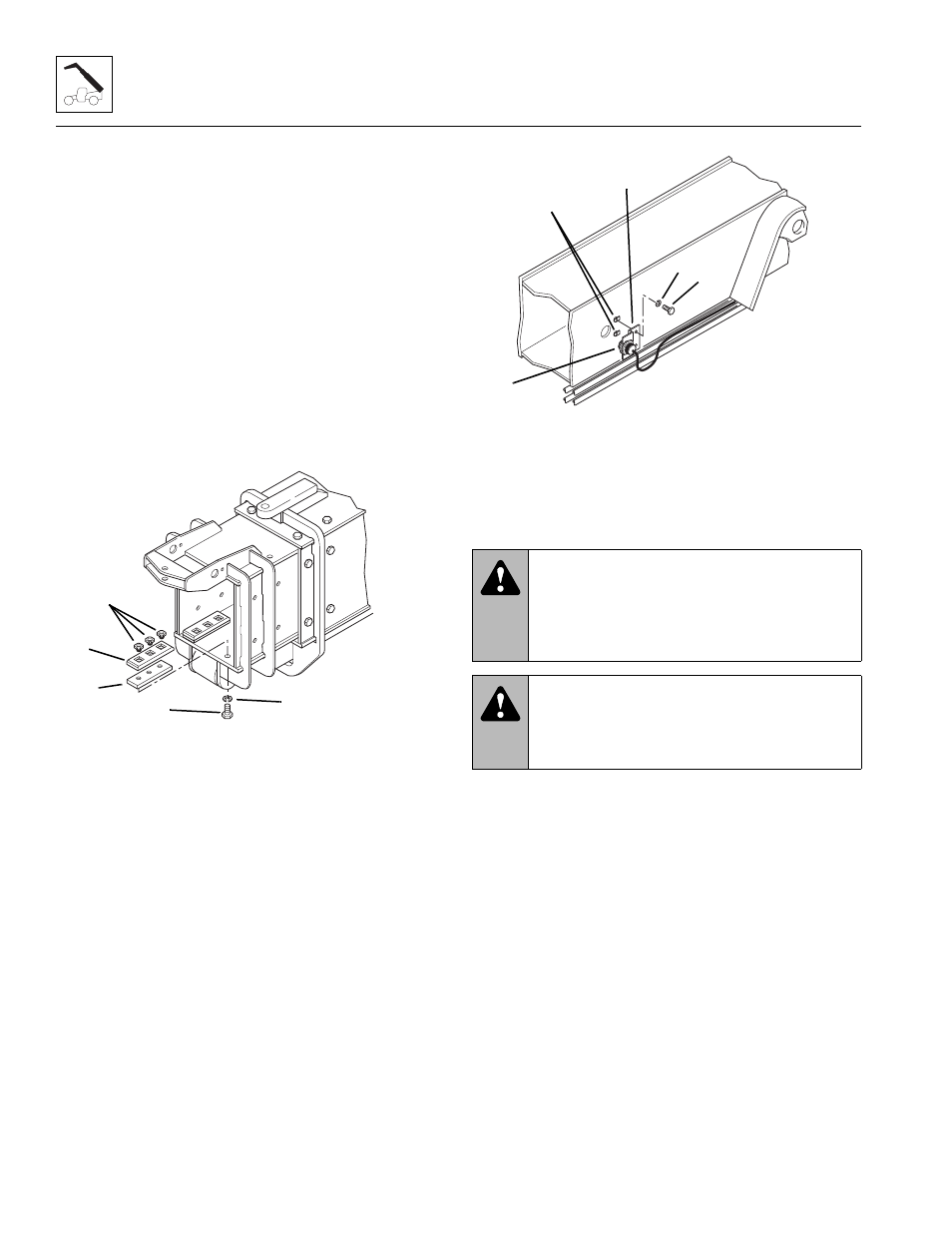

20. Install the primary intermediate boom front lower
wear pads:
a. Place the wear pad inserts (1), saved, into the
cavities of the front bottom wear pads (2), saved.
b. Place the wear pads and spacers (3), saved, into
the primary intermediate boom with the offset of
the wear pads toward the outside.
c. Apply Loctite
®
242 threadlocker to the threads of
the capscrews (4), saved. Line up the holes and
secure in place with the capscrews (4) and
lockwashers (5), saved. Be careful not to push
the wear pad inserts out of the wear pads.
d. Torque all wear pad mounting capscrews to
31 ±3 lb-ft (42 ±4 Nm).
e. Fill all wear pad cavities with a good grade of
lithium-based EP grease.
21. On the left side of the outer boom, reassemble the
boom extend interlock sensor (6) with mounting
bracket (7). Place the two retainer nuts (8), saved,
into the holes in the side of the outer boom. Align the
holes in the mounting bracket with the retainer nuts.
Secure in place with the capscrews (9), saved, and
lockwashers (10), saved. Tighten securely.
22. Secure the boom extend interlock sensor wire to the
Attachment Tilt tubes under the boom with new tie
wraps.
3.6.7
Secondary Intermediate Boom
Installation
IMPORTANT: Light lubrication of the boom wear
surfaces with a rust inhibitor/lubricant such as LPS 3 or
equivalent is recommended to keep the boom wear
surfaces lubricated properly. Light lubrication of the
boom wear surfaces is also recommended in salt air
climates and when the vehicle is stored, to help prevent
rusting.
