3.27 Model 8042, 10042, 10054 Legacy Rev. 03/04
Boom

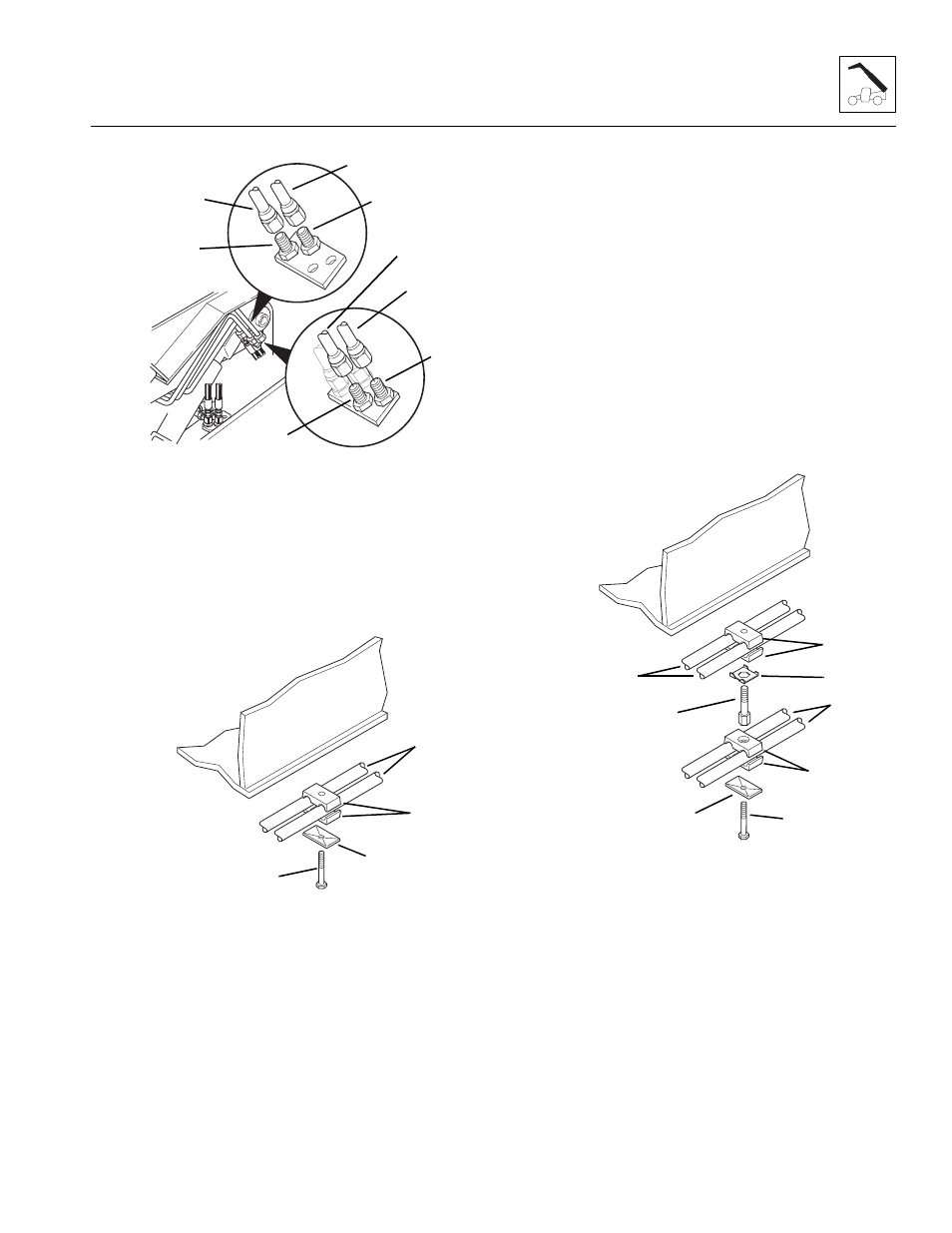

40. Without auxiliary hydraulics: Assemble the tube
clamp halves (21), saved, to the underside of the
outer boom. Place a clamp half on each side of the
Attachment Tilt tubes (22). Secure each set of clamp
halves to the boom with a clamp cover (23), saved,
and a capscrew (24), saved. Tighten the capscrew
securely to hold the tubes in place. Repeat for the
other two clamp locations under the outer boom.
41. With auxiliary hydraulics: Assemble the tube
clamp halves, saved, to the underside of the outer
boom. Place a upper clamp half (25) on each side of
the Attachment Tilt (upper) tubes (26). Secure each
set of clamp halves to the boom with a locking
plate (27), saved, and a stacking bolt (28), saved.
Tighten the stacking bolt securely to hold the upper
tubes in place.
42. Place a lower clamp half (29) on each side of the
auxiliary hydraulic (lower) tubes (30). Secure each
set of clamp halves to the stacking bolt with a clamp
cover (31), saved, and a capscrew (32), saved.
Tighten the capscrew securely to hold the lower
tubes in place.
43. Repeat Steps 41 and 42 to assemble the clamps at
the other two clamp locations under the outer boom. MH1440
13
14
15
16
17
18
19
20
MH1180
21
22
23
24
MH1190
25
26 27
28
29
30
31 32
