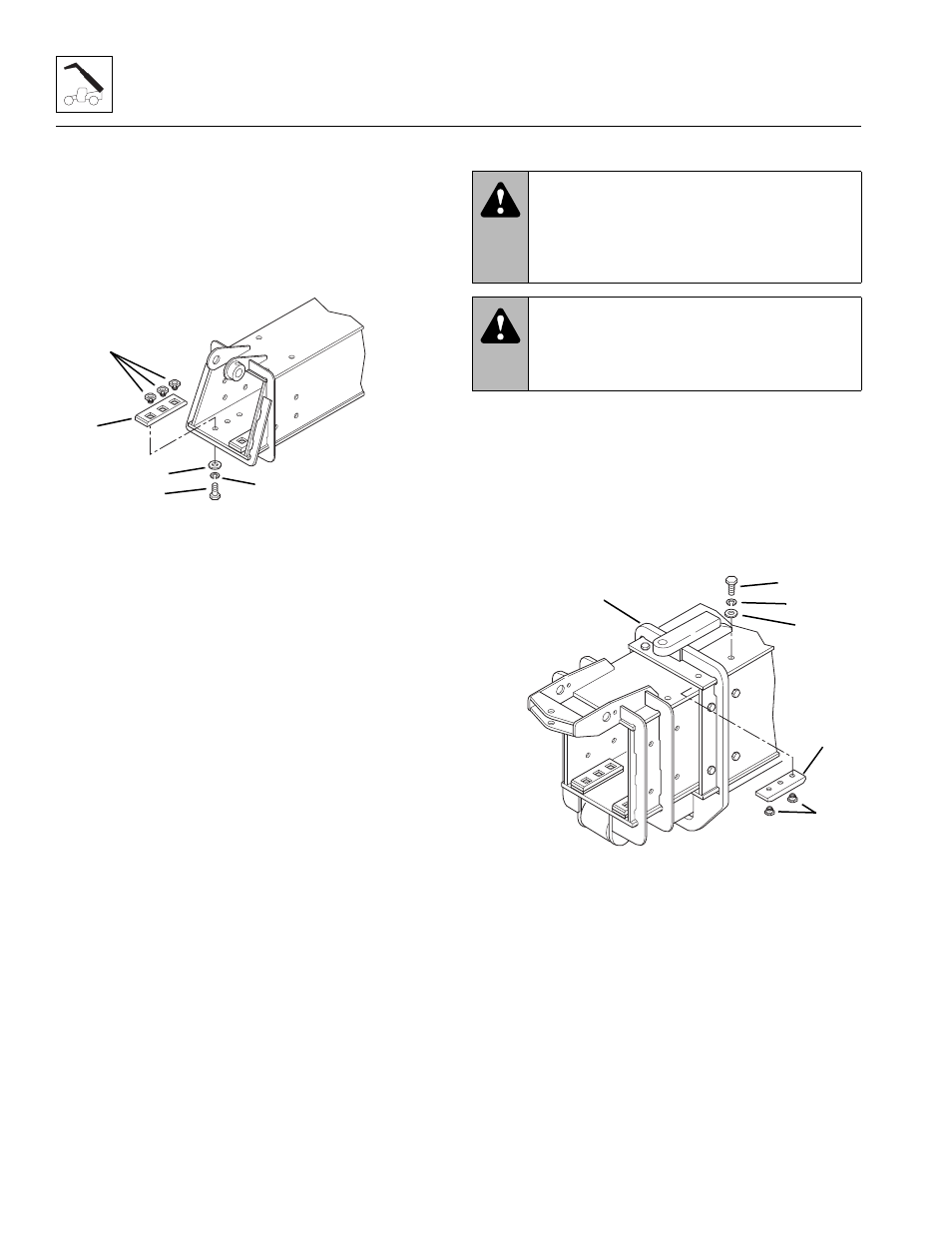

d. Remove the capscrews (1), flat washers (2) and
lockwashers (3) holding the lower wear pads (4)
to the inside of the secondary intermediate
boom. Label the wear pads as “Secondary
Intermediate Boom Left” or “Secondary
Intermediate Boom Right” sides. Save the
capscrews, flat washers, lockwashers and wear
pad inserts (5).
20. Inspect all wear pads for wear. (Refer to Section
3.9.1, “Wear Pad Inspection.”)
3.6.3 Primary Intermediate Boom Removal
1. At the front of the outer boom (6), remove the
capscrews (7), lockwashers (8) and flat washers (9)
holding the top wear pads (10) to the inside of the
outer boom. Label the wear pads as “Primary
Intermediate Boom Top Left” and “Primary
Intermediate Boom Top Right” sides. Save the
capscrews, lockwashers, flat washers and wear pad
inserts (11).
MH2070
1
2
3
4
5
WARNING:
Wear protective footwear
with reinforced toe caps and slip-resistant
soles. Failure to comply can result in foot or
other bodily injury from crushing, slipping or
falling.
WARNING:
NEVER lift a heavy object
without the help of at least one assistant or a
suitable sling and hoist. Failure to comply can
result in death or serious personal injury.
