3.11 Model 8042, 10042, 10054 Legacy Rev. 03/04
Boom
3.3.2 Intermediate Boom Removal
1. Remove the inner boom as described in Section
3.3.1, “Inner Boom Removal.”

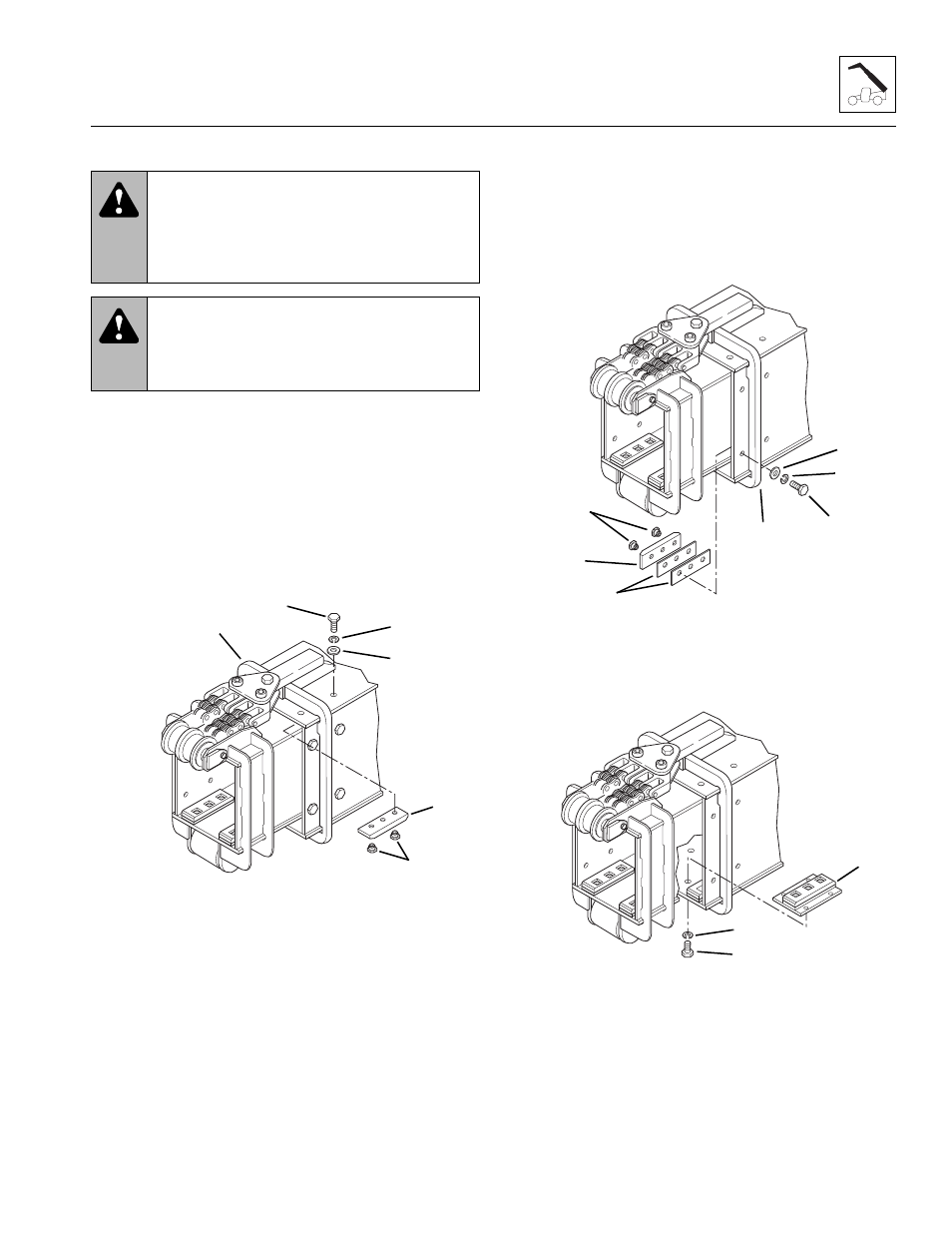

2. At the front of the outer boom (19), remove the
capscrews (20), lockwashers (21) and flat
washers (22) holding the top wear pads (23) to the
inside of the outer boom. Label the wear pads as
“Top Left” and “Top Right” sides. Save the
capscrews, lockwashers, flat washers and wear pad
inserts (24).
3. At the front of the outer boom (25), remove the
capscrews (26), lockwashers (27) and flat washers (28)
holding the side wear pads (29) and shims (30) to
the inside of the outer boom. Label the wear pads as
“Left Side Upper/Lower” and “Right Side Upper/Lower.”
Save the capscrews, lockwashers, flat washers,
shims and wear pad inserts (31).
4. Remove the capscrews (32) and lockwashers (33)
holding the center wear pad spacer mount (34) to
the front of the outer boom. Save the capscrews and
the lockwashers.
WARNING:
Wear protective footwear
with reinforced toe caps and slip-resistant
soles. Failure to comply can result in foot or
other bodily injury from crushing, slipping or
falling.
WARNING:
NEVER lift a heavy object
without the help of at least one assistant or a
suitable sling and hoist. Failure to comply can
result in death or serious personal injury.
MH0980
19
20
21
22
23
24
MH0990
25
26
27
28
29
30
31
MH1000
32
33
34
