Cab and Covers
4.28 Model 8042, 10042, 10054 Legacy Rev. 10/03

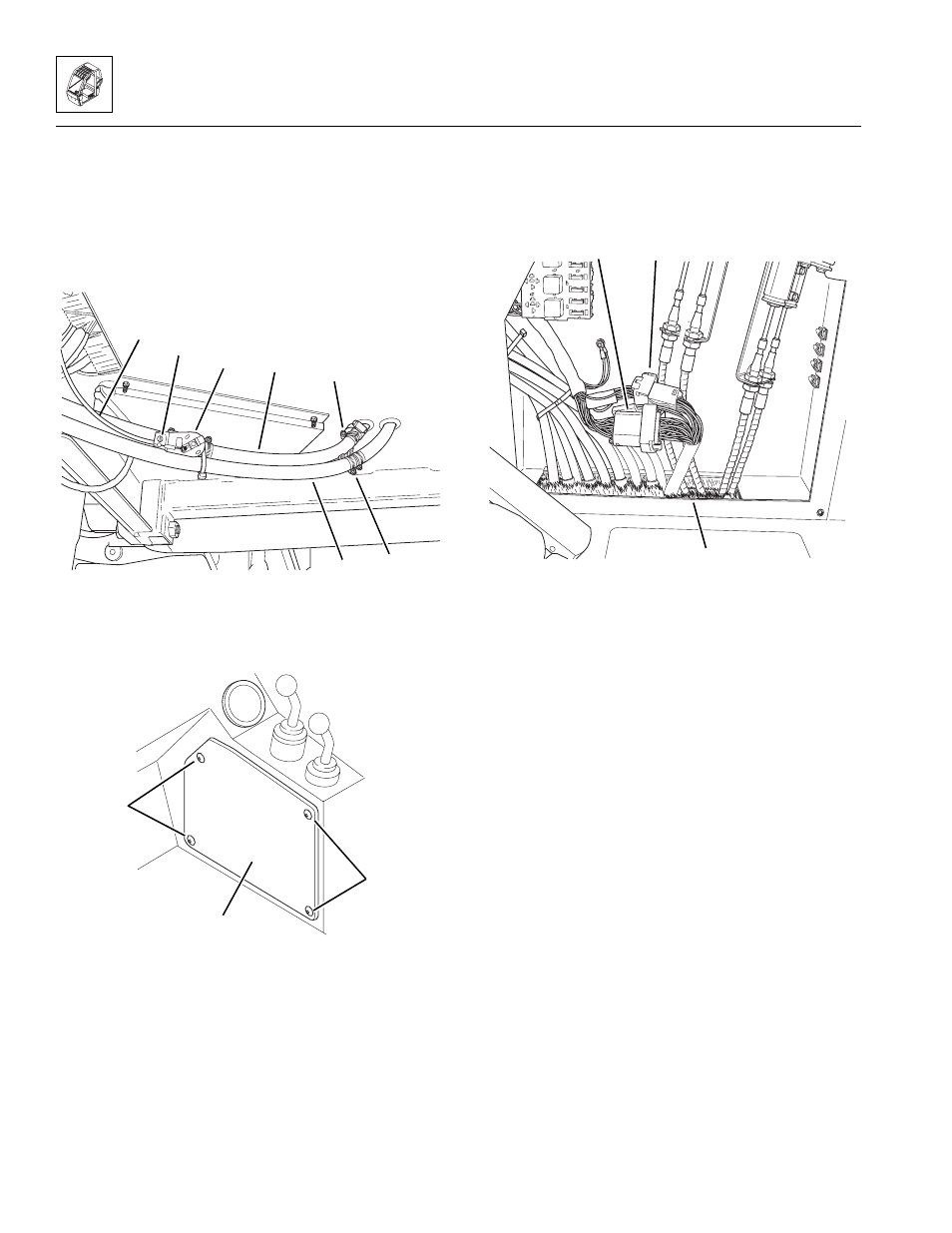

7. Working under the cab, loosen the clamp screw (1)
and disconnect the heater control cable (2) from the
heater control valve (3).
Note: Label all hoses to ensure correct installation.
8. Loosen the hose clamps (4 and 5), and disconnect
the heater hoses (6 and 7).
9. Remove four button-head capscrews (8) and remove
the console panel (9).
10. Disconnect the two cab-to-wiring harness
connectors (10 and 11). Push the harness
connectors through the opening (12) at the bottom of
the cab.
Note: Record the location, and label all cables to ensure
correct installation.
11. Disconnect control cables at the joystick:
a. Push the control lever to expose the flats (13) on
the slider head. Place a wrench on the flats to
hold the slider head, and loosen the cable nut
(14).
b. Loosen the upper jam nut (15), and remove the
boom extend/retract cable (16) from the bracket.
c. Push the cable through the opening at the
bottom of the cab.
d. Repeat Steps a thru c to disconnect the boom lift/
lower (17), attachment tilt (18) and frame sway
(19) control cables.
