Electrical System
9.16
Model 8042, 10042, 10054 Legacy
Rev. 10/03
9.6.2

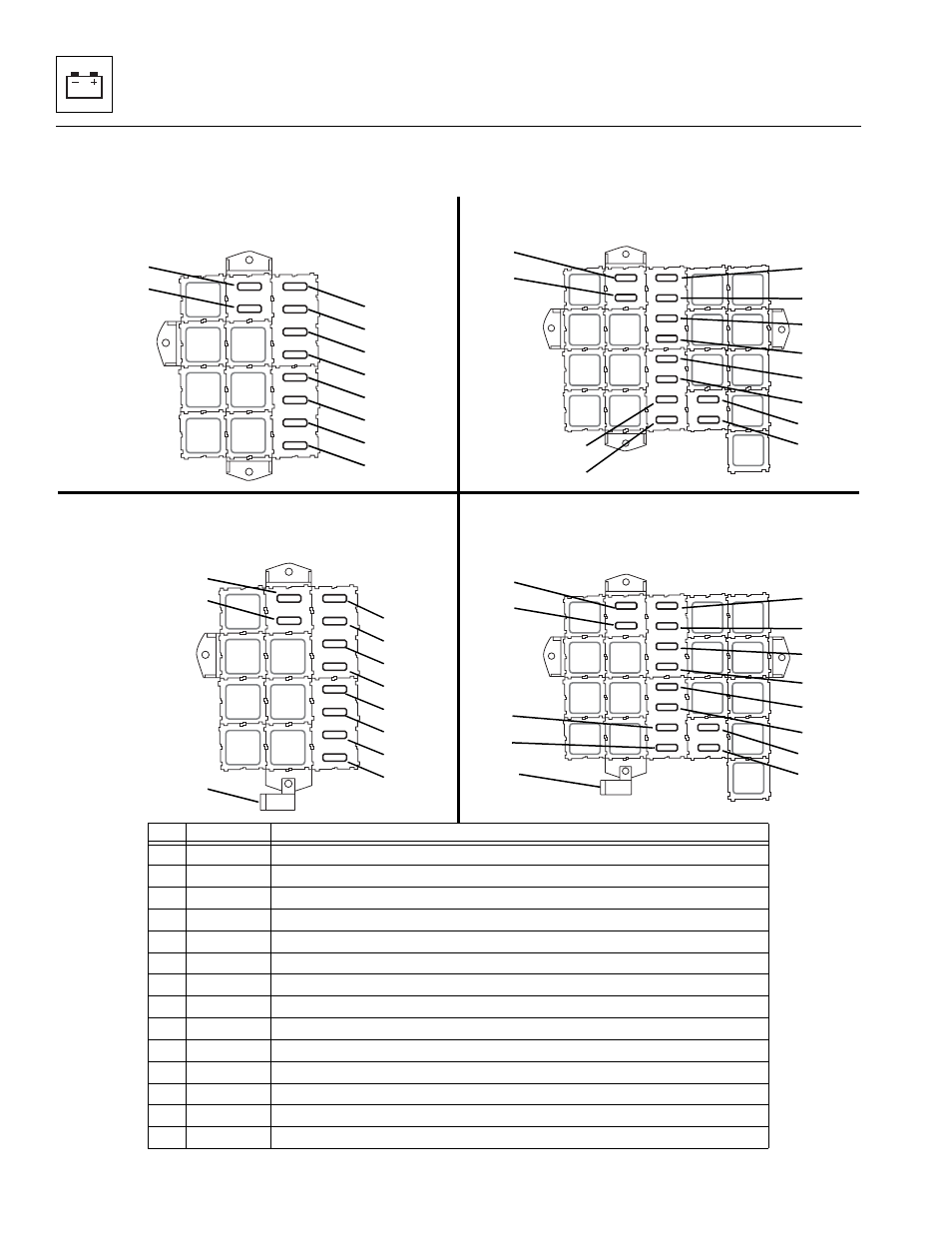

Fuse and Relay Locations
a. Fuse Block Fuse Locations
No.
Amp
Circuit Protected
1
40 Amp
Main
2
7.5 Amp
Light Switch Relay
3
10 Amp
Instrument Cluster
4
10 Amp
Horn/Heater (SN 13198 through 16782)
5
15 Amp
Horn/Heater (SN 16783 through 19987 and 0160002332 & After)
6
10 Amp
Steer Select Switch
7
10 Amp
Stabilizer
8
10 Amp
Optional Washer/Wiper
9
7.5 Amp
Outriggers & ECM Indicator Light
10
7.5 Amp
Transmission
11
20 Amp
Optional Lights
12
40 Amp
Optional Road/Work Lights (SN 16783 through 19987 and 0160002332 & After)
13
7.5 Amp
Boom/Outrigger Interlock (10054 Only)
14
7.5 Amp
Boom/Outrigger Interlock (10054 Only)
7.5
20
7.5
10
10
10
10
10
7.5
40
40
7.5
20
7.5
10
10
10
15
10
7.5
40
7.5
20
7.5
10
10
10
15
10
7.5
40
7.5
7.5
40
7.5
20
7.5
10
10
10
10
10
7.5
40
7.5
7.5
MH4870
MH4860
MH4820
MH4830
SN 8042/10042, 13198 - 16782 Without Lighting
Package
SN 10054, 13198 - 16782 With Lighting Package,
16783 - 19987 And 0160002332 & After
SN 8042/10042, 13198 - 16782 With Lighting Package,
16783 - 19987 And 0160002332 & After
SN 10054, 13198 - 16782 Without Lighting Package
