SkyTrak 8042 Service Manual - Manual (Page 353)

Engine: Cummins 4BT3.9 and 4BTA3.9
7A.30 Model 8042, 10042, 10054 Legacy Rev. 10/03

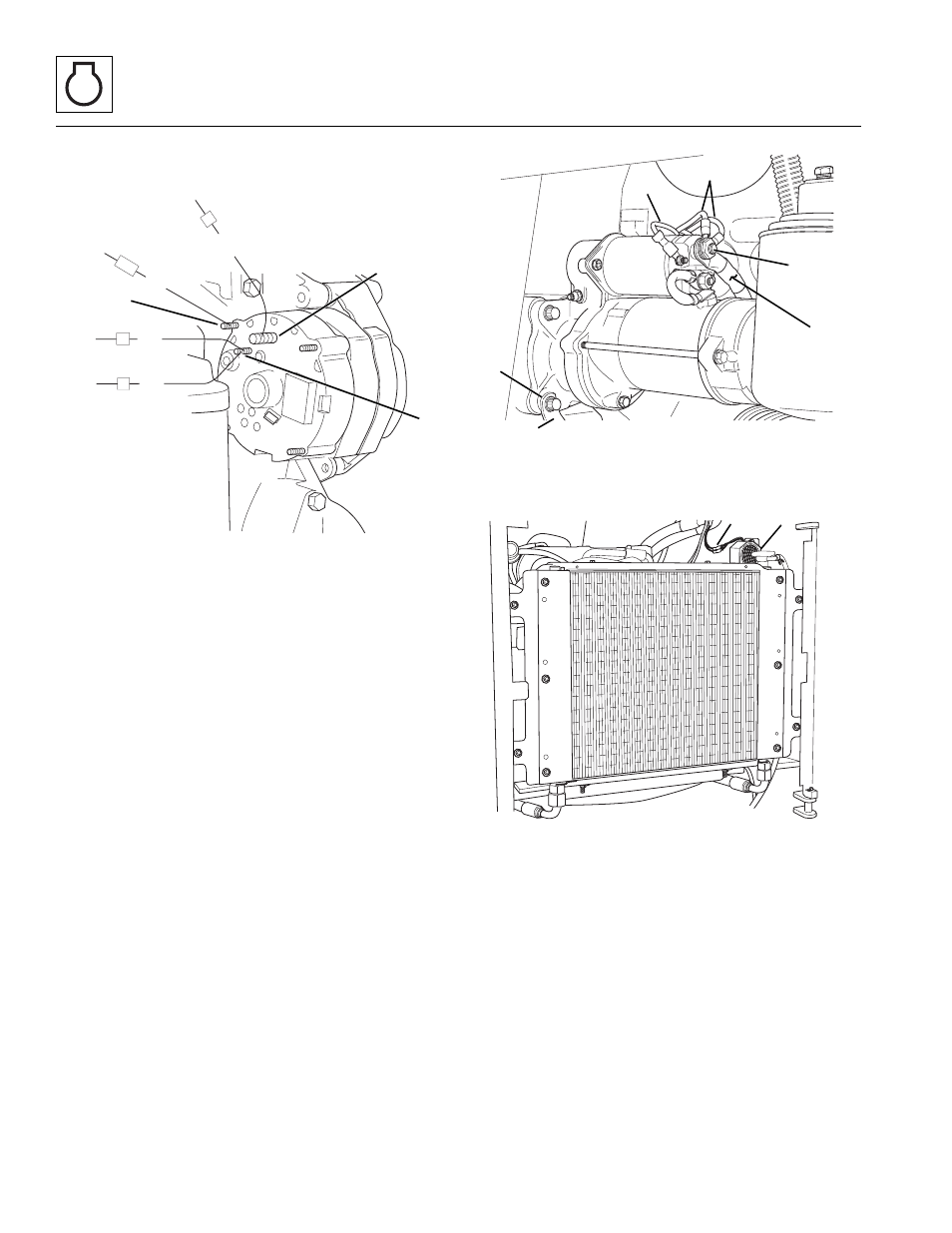

6. Label and disconnect the alternator ground wire (1),
D+ (2) and B+ (3) harness wire leads.
Note: Record how the starter wires are installed to
ensure correct installation later.
7. At the starter, remove the two red wires (4) from the
upper solenoid stud (5).
8. Remove the red, positive (+) battery cable (6) from the
upper solenoid stud.
9. Label and disconnect the blue/orange wire (7) from
the starter solenoid housing stud.
10. Remove, the lower 12-point starter bolt (8) securing
the starter to the flywheel housing. Remove the
negative (-) ground cable (9) from the 12-point
starter mounting bolt. Reinstall the 12-point starter
bolt into the lower starter bolt position.
11. Label and disconnect the back-up alarm harness
connector (10) from the back-up alarm (11).
12. Remove fasteners and back-up alarm.
B+
D+
D-
ORG
BLK
YEL
2W
G
6
38
5
RED
MA8400
1
2
3
MA8420
4
5
6
7
8
9
MH4030
10 11
