3.73 Model 8042, 10042, 10054 Legacy Rev. 03/04
Boom

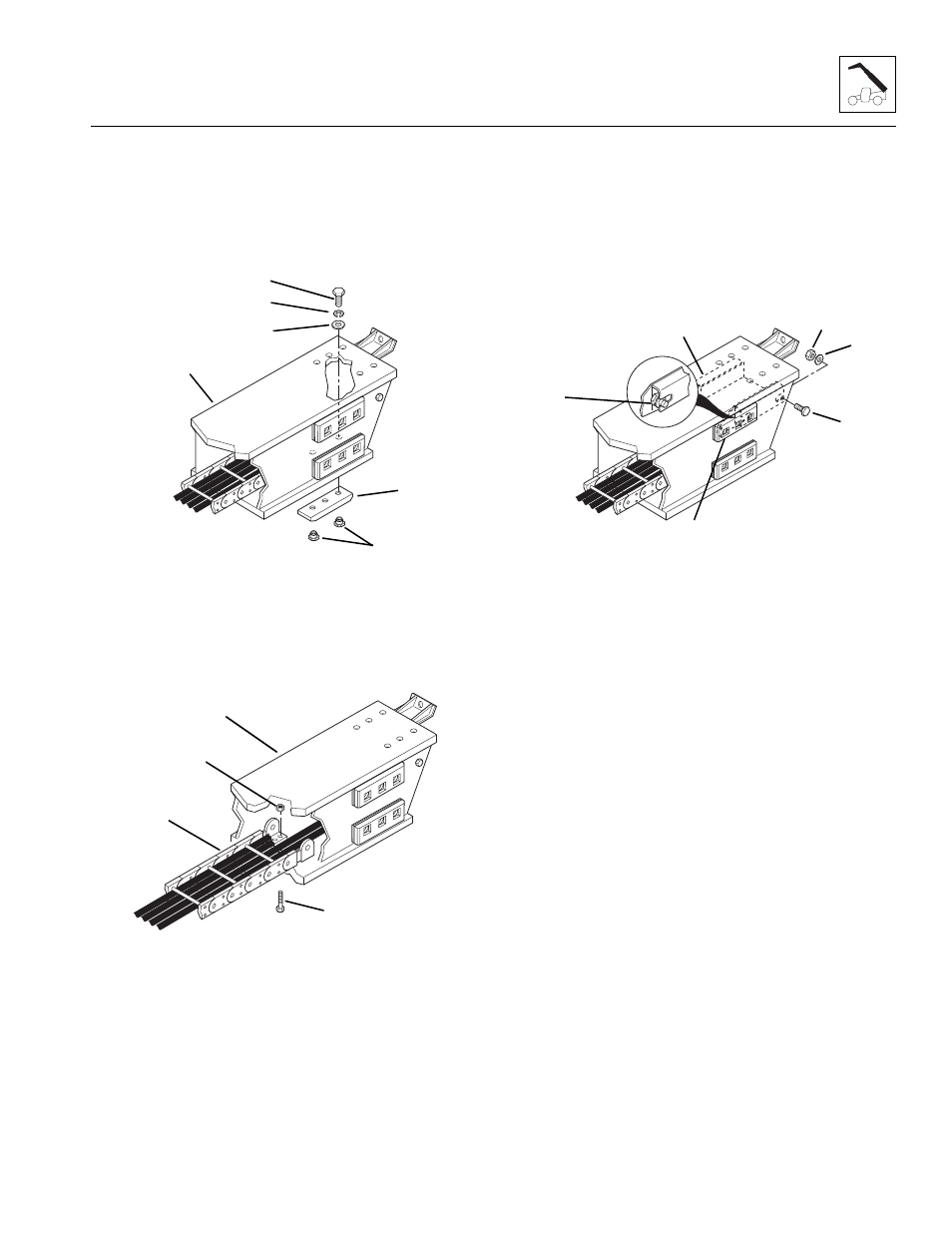

45. At the rear of the inner boom (15), remove the
capscrews (16), lockwashers (17) and flat
washers (18) holding the lower wear pad (19) to the
bottom of the inner boom. Label the wear pad as
“Inner Boom Bottom.” Save the capscrews,
lockwashers, flat washers and wear pad inserts (20).
46. Inside the rear of the inner boom (21), remove the
four elastic locknuts (22) and capscrews (23) holding
the hose carrier assembly (24) to the bottom of the
inner boom. Save the capscrews and discard the
locknuts.
47. On each side of the inner boom, remove the rear
elastic locknuts (25), capscrews (26) and flat
washers (27) holding the rear of the hose carrier
guide (28) in place. Save the capscrews and flat
washers. Discard the locknuts.
48. Loosen, but DO NOT remove the capscrews (29)
holding the front of the hose carrier guide and the
top wear pad (30) to each side of the inner boom.
MH1890
15
16
17
18
19
20
MH1900
21
22
23
24
MH1910
25
26
27
28
29
30
