Engine: Cummins 4BT3.9 and 4BTA3.9
7A.26 Model 8042, 10042, 10054 Legacy Rev. 10/03
IMPORTANT: The injector must not rotate in the bore of
the cylinder head, or damage to the cylinder head will
occur. If rust has formed on the hold-down nut, soak the
nut with rust-penetrating solvent for a minimum of three
minutes. Then, tap the injector body with a drift pin to
help loosen any rust.

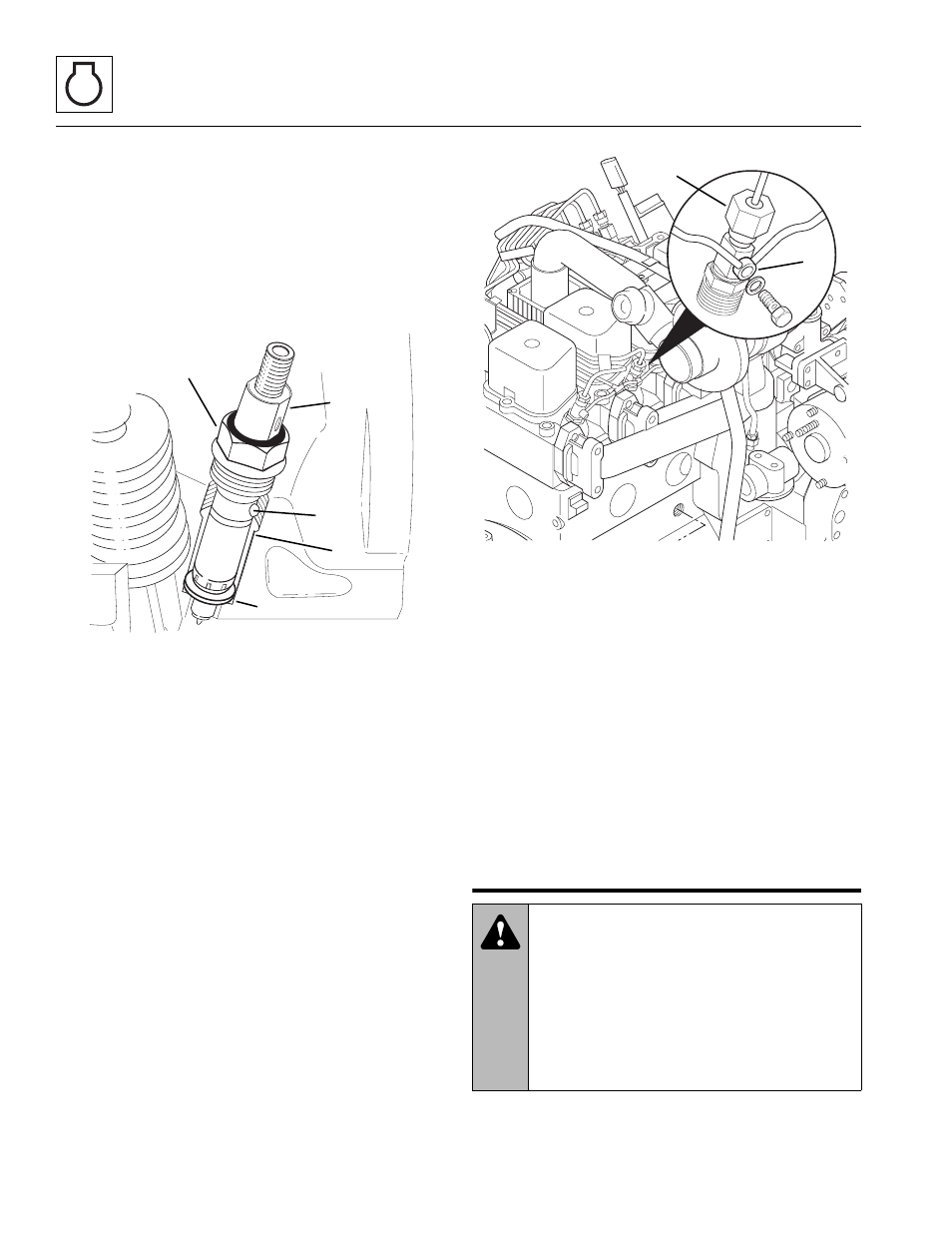

4. Use a 16-mm wrench to prevent the injector body (1)
from turning. Loosen the hold-down nut (2) with a
24-mm box wrench.
5. Clean the injector nozzle bore.
6. Remove the injector hold-down nut from the injector
body.
7. Apply a light coat of anti-seize compound to the new
injector surface. Avoid getting anti-seize compound
into the fuel drain hole.
8. Install the hold-down nut on the injector body.
9. Install a new o-ring into the recessed groove in the
top of the hold-down nut. Make sure the o-ring is not
cut or twisted during installation.
10. Apply a light coat of anti-seize compound to the
threads of the injector hold-down nut.
11. Assemble the injector and new copper washer (3).
Use only ONE copper washer. A light coat of clean
15W40 engine oil placed between the washer and
the injector will help keep the washer from falling
during installation.
12. Install the injector with the protrusion (4) on the side
of the nozzle fitting into the notch (5) in the head.
13. Tighten the hold-down nut (2) and torque to 44 lb-ft
(60 Nm).
14. Install the fuel drain manifold (7) and torque to 6 lb-ft (8
Nm).
15. Install the high-pressure fuel lines (6) and torque to
18 lb-ft (24 Nm).
16. Run the engine and check for fuel and air leakage.
17. Bleed the fuel system in accordance with the
instructions found in the appropriate owners/
operators manual.
7A.8.8 After Fuel System Service
1. Drain and flush the fuel tank if it was contaminated.
2. Vent air from the fuel system in accordance with the
instructions found in the appropriate owners/
operators manual.
3. Fill the fuel tank with fresh, clean diesel fuel as required.
7A.9 ENGINE EXHAUST SYSTEM
The exhaust system is supported by the engine and the
vehicle frame, and helps minimize the transfer of noise
MA1960
1
2
3
4
5
WARNING:
Exhaust fumes contain
carbon monoxide, a colorless, odorless gas
which is fatal when inhaled in a confined area.
Avoid breathing exhaust fumes, and prevent
engine operation from becoming a cause of
toxic emissions. Exhaust system components
reach high temperatures and can cause
severe burns. DO NOT come into contact with
hot exhaust system components.
MT3160
6
7
