3.119 Model 8042, 10042, 10054 Legacy Rev. 03/04
Boom
Note: ALWAYS replace elastic locknuts with new elastic
locknuts to help ensure proper fastening.

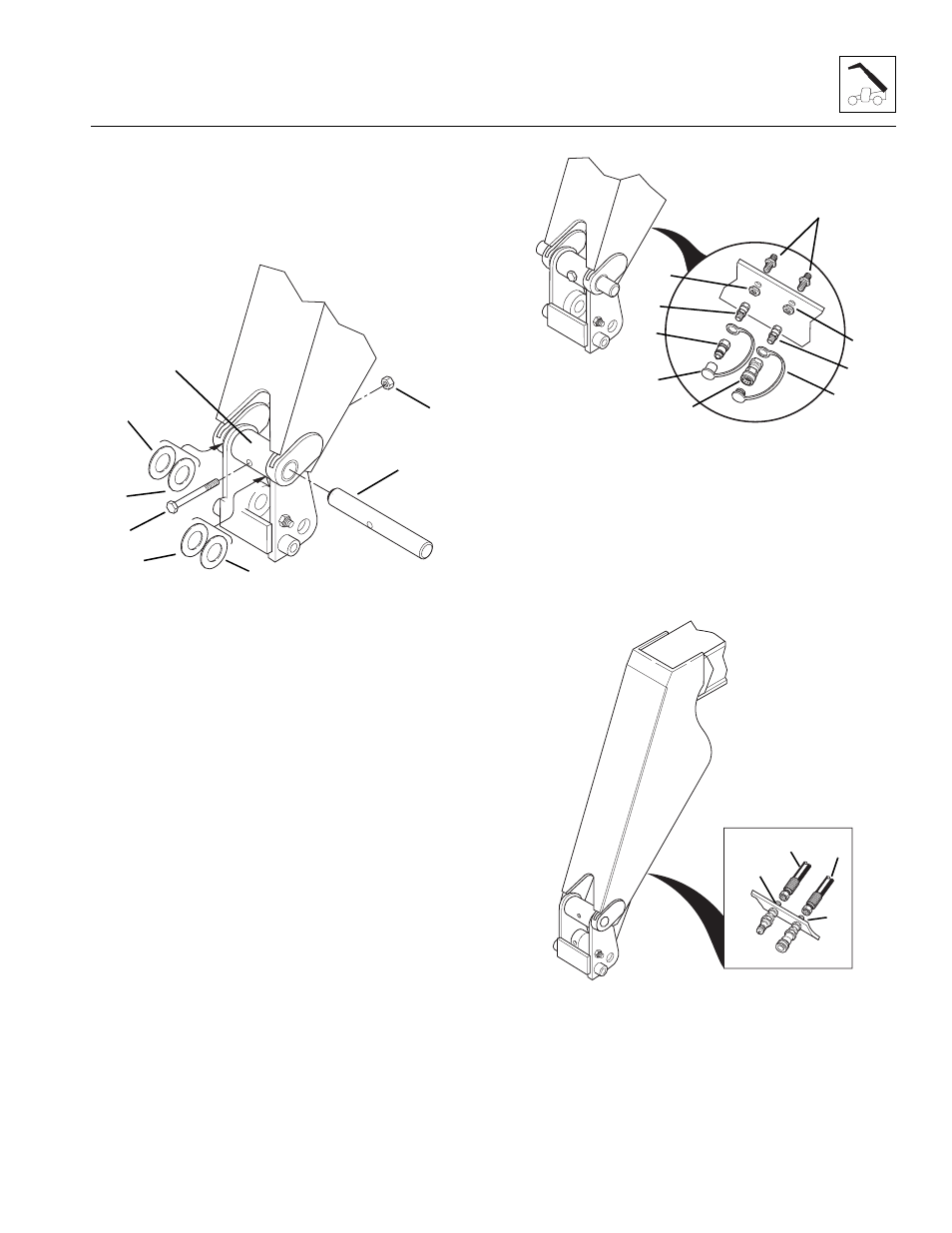

56. Insert the capscrew (17), saved, through the quick
attach and pin. Secure the capscrew in place with a
new elastic locknut (18). Tighten securely.
57. If the inner boom has been replaced with a new
boom, the auxiliary hydraulic fittings need to be
reassembled:
a. Assemble the two bulkhead fittings (19) from the
original boom to the bulkhead plate inside the
gooseneck. Insert the bulkhead fittings from the
top and secure in place with the bulkhead fitting
nut (20) on the bottom side. Tighten securely.
b. Assemble the two straight swivel connectors (21)
to the two bulkhead fittings.
c. Assemble the male nipple (22) and dust cap (23)
to the right side swivel connector fitting. Tighten
the swivel connector and male nipple securely.
Assemble the dust cap onto the male nipple.
d. Assemble the female coupler (24) and dust
plug (25) to the left side swivel connector fitting.
Tighten the swivel connector and female coupler
securely. Insert the dust plug into the female
coupler.
58. Assemble the left auxiliary hydraulic hose (26)
labeled “Female Coupler” from inside the gooseneck
to the female coupler (27) bulkhead fitting. Tighten
securely.
59. Assemble the right auxiliary hydraulic hose (28)
labeled “Male Nipple” from inside the gooseneck to
the male nipple (29) bulkhead fitting. Tighten
securely.
MH1720
14
15
~
13
14
15
16
17
18 MH1730
20
21
19
20
21
22
23
24
25
MH0840
26
27
28
29
